4.7.3 Explosion-Proof Methanator
The more recent version of the methanator is designed with an explosion proof/flameproof
enclosure as described in the Safety Protection Principles section of this manual. This design
eliminates the need to maintain a pressurized methanator enclosure as well as reducing some
of the necessary safety measures required for maintenance of the Maxum II when a
methanator is installed.

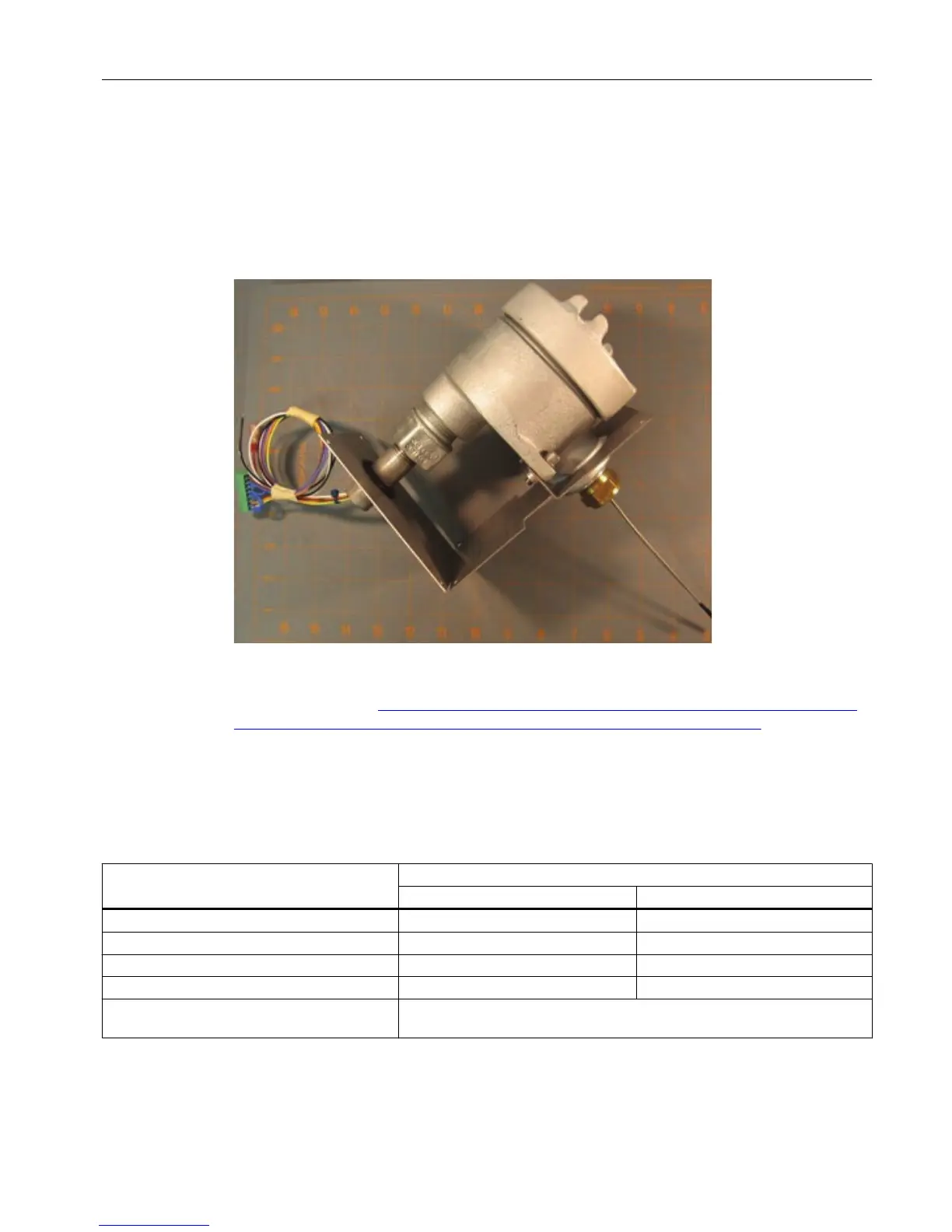

Figure 4-20 Explosion-proof Methanator
For more information see the Maxum II Explosion Protection Safety Standards Manual
(A5E02220442001) (https://support.industry.siemens.com/cs/document/42017542/maxum-
edition-ii%3A-explosion-protection-safety-standards?lc=en-WW&pnid=17741).
4.7.4 Methanator Specifications
Table 4-2 Methanator
Parameter Value
Non-Ex Methanator Ex Methanator
Classification n/a Ex d IIB+H2
Maximum Operation Temperature 400°C 400°C
Heater 115 or 230 VAC 115 or 230 VAC
Gas Supply H
2
, 35-45 ml/minute H
2
, 35-45 ml/minute
Ambient operating temperature for Methana‐
tor-equipped Maxum II
0 - 50°C
Flame Ionization Detector
4.7 Methanator
Maxum Edition II Detectors
Service Manual, May 2018, A5E42019847001 53

Siemens Maxum II Specifications

General

Category	Gas Chromatograph
Measurement Principle	Gas Chromatography
Communication Protocols	Modbus, Ethernet, Profibus
Operating Temperature	-20°C to 55°C
Power Supply	24 VDC or 100-240 VAC
Mounting	rack mount
Applications	Refinery, chemical, petrochemical, natural gas
Detectors	Thermal Conductivity Detector (TCD), Flame Ionization Detector (FID)
Sample Inlets	Multiple
Dimensions	Varies by configuration (e.g., 19" rack mount)
