1. Flame Arrestor Insert Assembly 12. Graphite Seal
2. Flat Washer 13. Hammer Drive Screws (for Label)
3. Detector Body (Bottom) 14. Label
4. Filter 15. Socket Heat Cap Screw
5. Retainer Clip - Small 16. Detector Body (Upper)
6. Retainer Clip - Large 17. Teflon Seal
7. Outer Ferrule 18. Collector
8. Graphite Ferrule 19. Socket Heat Cap Screw (M5 x 60)
9. Pressure Ferrule 20. Flame Arrestor Bushing
10. Burner Nut 21. Flat Washer
11. Quartz Jet (with flame tip nozzle) 22. Flame Arrestor
Quartz Jet
Assembly

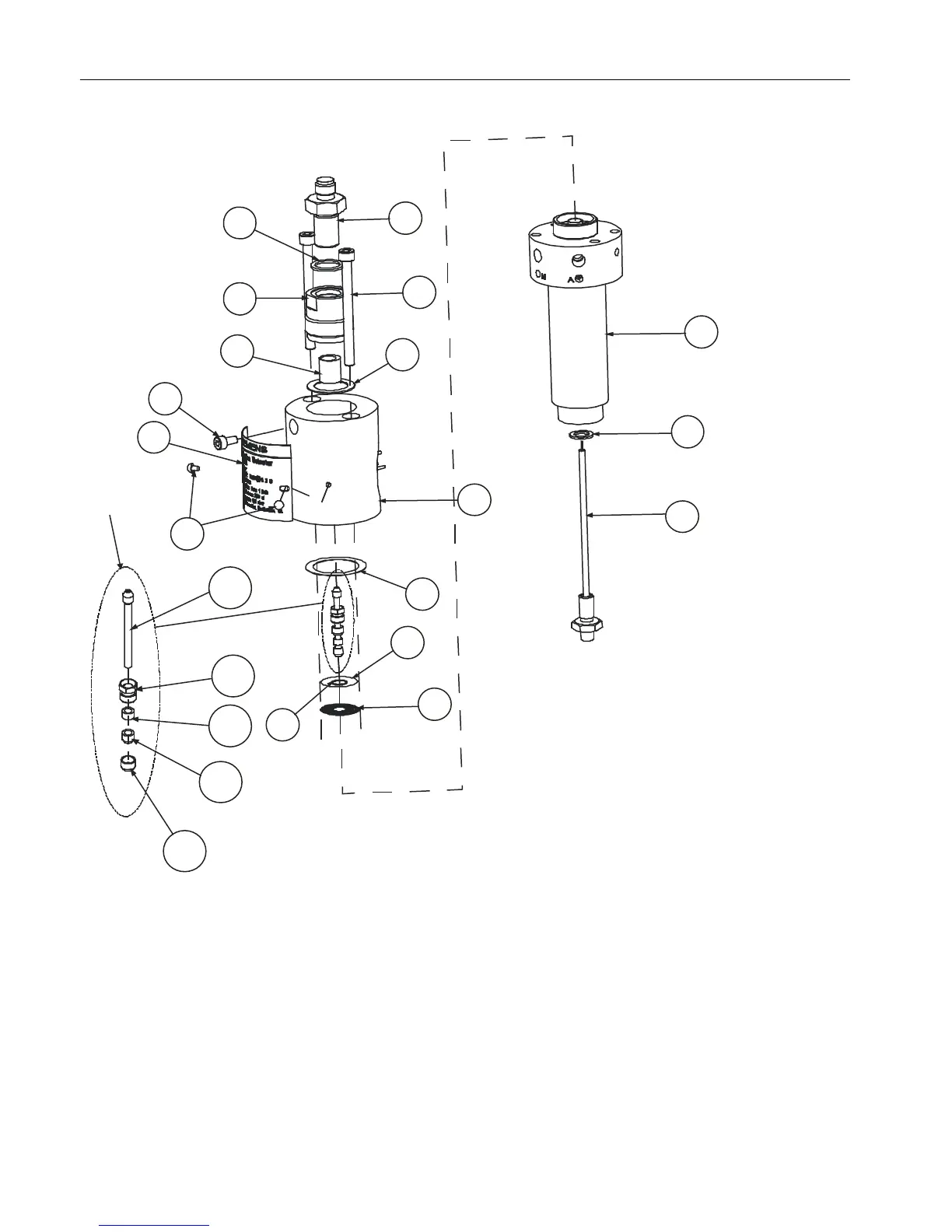

Figure 4-3 FID Assembly
Flame Ionization Detector
4.2 Replacing the FID Mesh Filter
Maxum Edition II Detectors
34 Service Manual, May 2018, A5E42019847001
