Connect
ing MindConnect
Element
s
5.1 Comm
issioning MindConnec
t Elem
ent
Getti
ng
Co
nnec
te
d to
Mind
Sp
her
e
Getti
ng
St
art
ed,
0
5/20
18
33
–

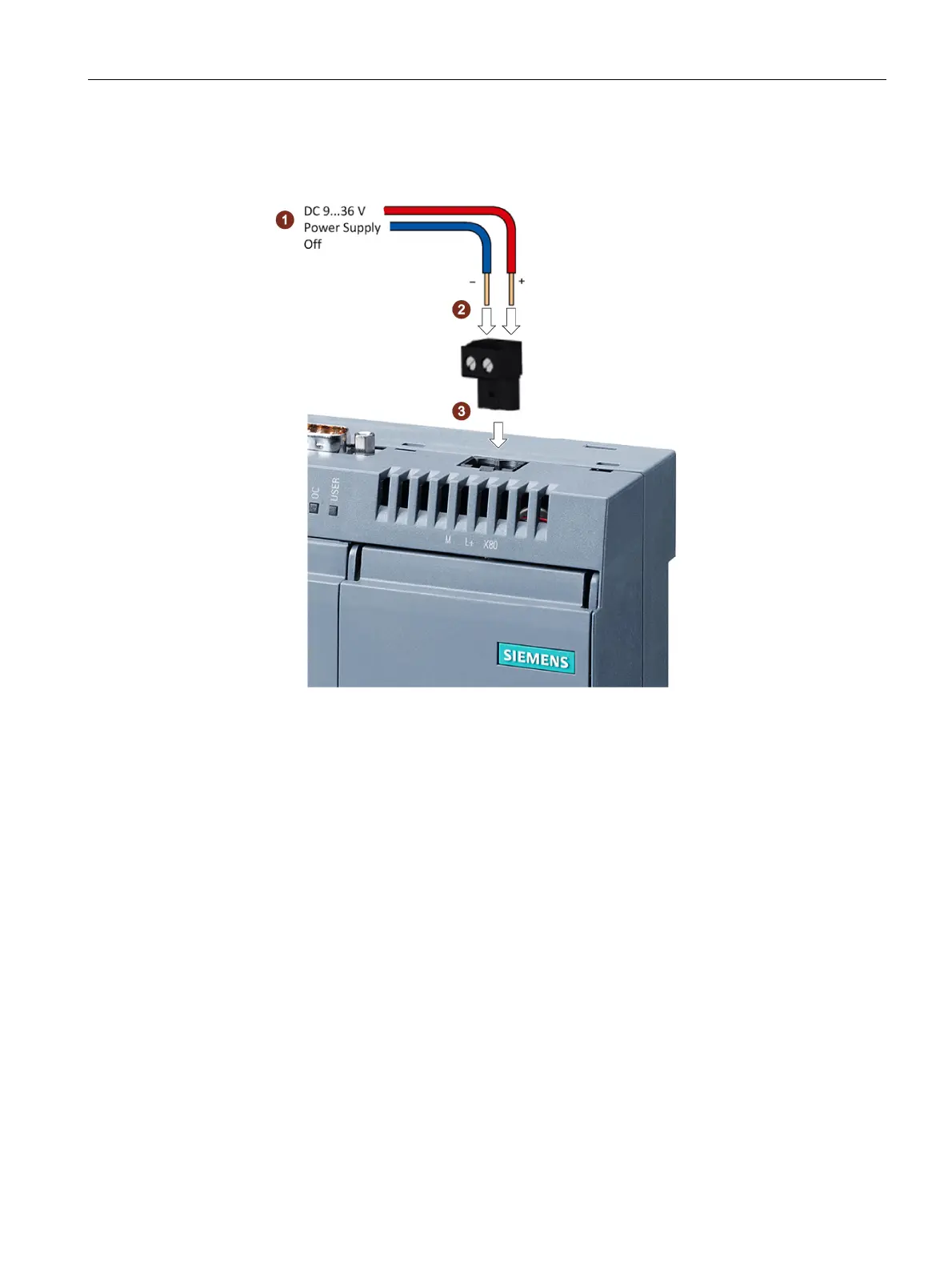

The graphic
demonst
rat
es the steps how t
o connect t
he power supply f
or
MindConnect
IoT
2040:
Figure
5-2
Connecting
the
power
supply
for
MindConnec
t
IoT2040
32
34
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Notes
5
General Safety Instructions
5
Notes on Usage
8
2 Introduction
9
Getting Started
9
Purpose of this Document
10
Functional Overview of Mindsphere
10
Working with Mindsphere
11
3 Overview of Mindconnect Elements
13
4 Mounting and Installing Mindconnect Elements
17
Checking Package Upon Delivery
17
Mounting Mindconnect Nano
19
Permitted Mounting Positions and Surrounding Temperature
19
Connecting the Protective Earth
20
Mounting Mindconnect Iot2040
20
Permitted Mounting Positions and Surrounding Temperature
20
Mounting Types
21
LED Lights of Mindconnect Elements
22
LED Lights of Mindconnect Nano
22
LED Lights of Mindconnect Iot2040
24
Troubleshooting
26
5 Connecting Mindconnect Elements
31
Commissioning Mindconnect Element
31
Firewall / Proxy Rules for Mindsphere
35
Connecting Mindconnect Nano to Mindsphere Network
35
Connecting Mindconnect Iot2040 to Mindsphere Network
37
Connecting Port X2 P1 for Mindconnect Element
39
6 Onboarding Mindconnect Elements
41
Overview of Onboarding Mindconnect Element
41
Preparing Mindconnect Element
42
Logging in to Mindsphere
44
Creating an Asset
45
Enable Connection to Mindconnect Element
47
Configuring Network Settings
48
Transferring Configuration to Mindconnect Element
49
7 Configuring Data in Asset Manager
53
Creating Aspects and Variables
53
Creating an Asset Type
56
Adding a Datasource and Datapoints
58
Adding Datasource
58
Adding Datapoints
60
Datamapping
62
8 Visual Analysis of Assets in Fleet Manager
67
Overview Visual Analysis
67
Selecting Assets
67
Viewing Aspects
70
Viewing Events
72
Appendix
75
Overview of Datatypes
75
Overview of S7 Datatypes
75
Overview of OPC UA Datatypes
78
Technical Specifications of Mindconnect Nano
81
Technical Specifications of Mindconnect Iot2040
84
Firewall Settings
86
ESD Guideline
88
List of Abbreviations
90
Glossary
93
