3.5 Accessories

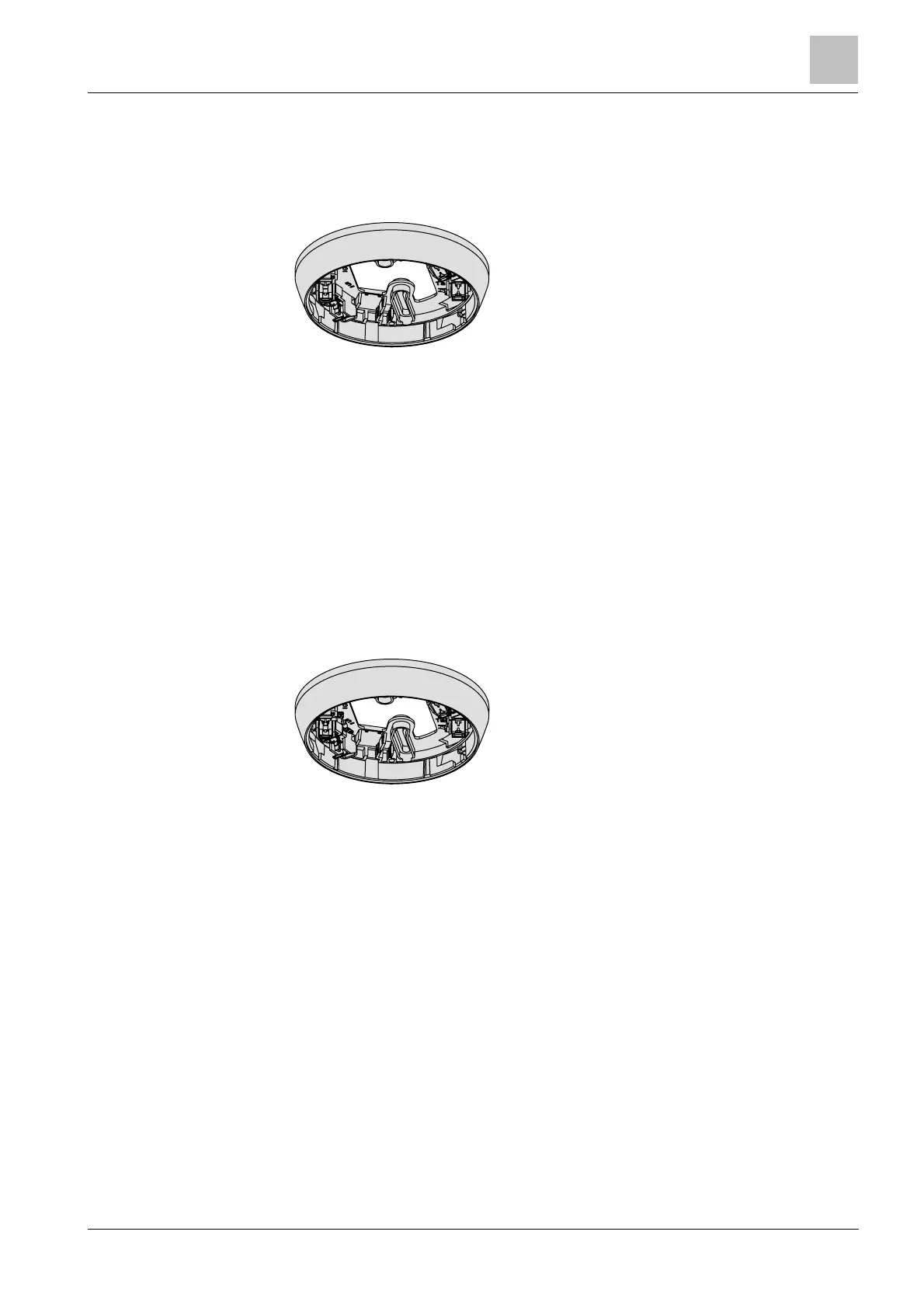

3.5.1 Detector base (collective) DB110
l For the installation of point detectors
l The detector line is interrupted if the point detector
is not used
l Selects the default parameter set in the point
detector used
l For the recess-mounted cable entry
l For the surface-mounted cable entry, up to 8 mm
cable diameter
l Compatible with:
– Multi-sensor fire detector OH110
– Smoke detector OP110
– Heat detector HI110
– Heat detector HI112
l Order no.: S54372-F5-A1
See also
2 Detector base (collective) DB110 / DB110x / DB110xx
[➙ 35]
3.5.2 Detector base (collective) DB110D
l For the installation of point detectors
l Built-in diode (for BS 5839, part 1)
l If a point detector is not used, the diode fitted does
not interrupt the detector line
l Selects the default parameter set in the point
detector used
l For the recess-mounted cable entry
l For the surface-mounted cable entry, up to 8 mm
cable diameter
l Compatible with:
– Multi-sensor fire detector OH110
– Smoke detector OP110
– Heat detector HI110
– Heat detector HI112
l Order no.: S54372-F6-A1
See also
2 Detector base (collective) DB110 / DB110x / DB110xx
[➙ 35]
