5.2 Detector base (collective)
DB110 / DB110x / DB110xx

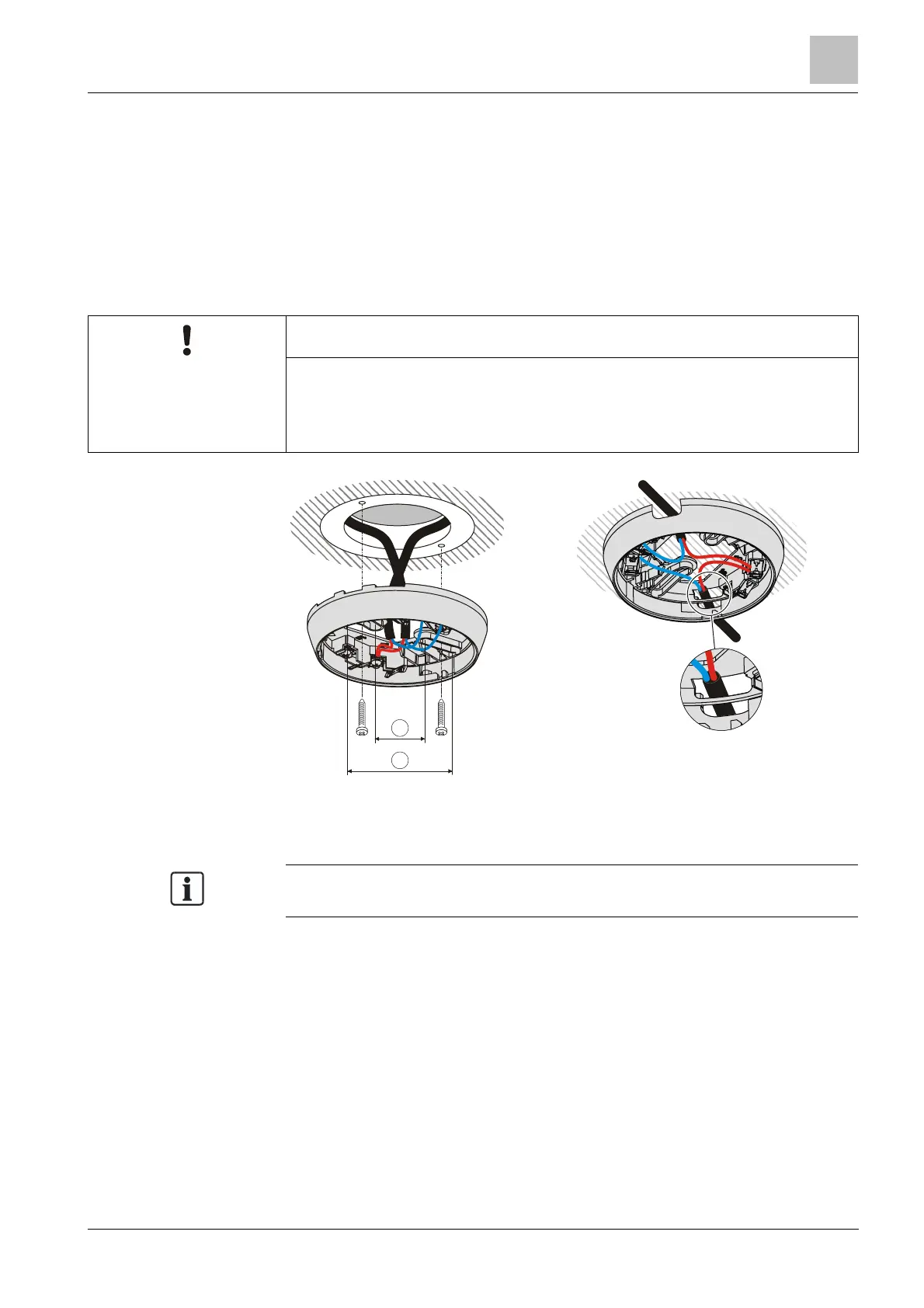

l Install the detector base directly on the ceiling.
l Insert the cables into the detector base. You have the option of using the
following types of line:
– Recess-mounted cable entry
– Surface-mounted cable entry (cable diameter max. 8 mm)
NOTICE
Incorrect laying of cables
Damage to cables and difficulties when installing the point detector
● The cable loops must be placed flat in the base bottom.
●
The bare length of the cables is approximately
8…10
mm.
1
2
1 Minimum Ø 40 mm 2 Maximum Ø 90 mm
Use the detector bases DB110D and DB110RD if you are installing a fire
detection system in accordance with BS 5839, part 1.
