optiPoint Recorder Adapter
Safety notes
The optiPoint telephones and adapters comply with the stipulated conformity
and safety regulations (CE).
• Avoid exposing the equipment to direct sunlight or other sources of heat.
• Protect the equipment from moisture and liquids.
• Never insert objects into openings in the equipment.
Applications
The recorder adapter can be connected to the following telephones:
optiPoint 600 office, optiPoint 500 advance/standard/basic,
optiPoint 420 advance/standard, optiPoint 410 advance/standard.

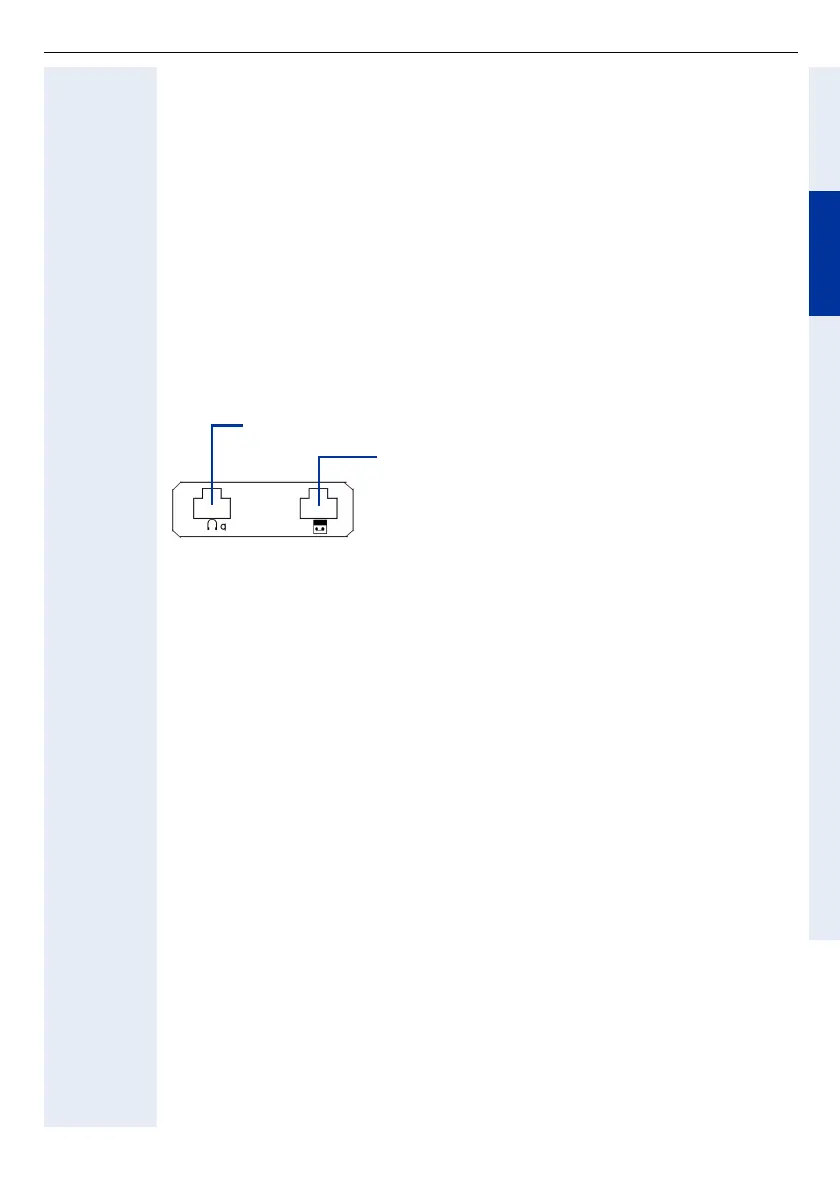

The recorder adapter has ports for the following:
Package Contents
• 1 optiPoint recorder adapter
Installation
For installation, see fold-out page 3 (Pos. to ).
1. Disconnect the subscriber line from the optiPoint telephone.
2. Place the telephone on a soft surface with the keypad facing down.
3. Insert the adapter into one of the two adapter bays on the bottom of the
telephone by sliding the two tabs into the two slots on the telephone.
4. Gently press the adapter in the direction of the arrow until it is fully insert-
ed into place.
5. Connect the second earphone and the recorder to the corresponding female
connector(s) on the adapter.
6. Reconnect the subscriber line to the optiPoint telephone.
The optiPoint telephone and the adapter are ready for operation.
Second earphone on the 4 pin RJ11 connector
Recorder on the 6 pin RJ11 connector
