20 | 34 A6V11571319_en--_b
5 Product data
5.1 Views

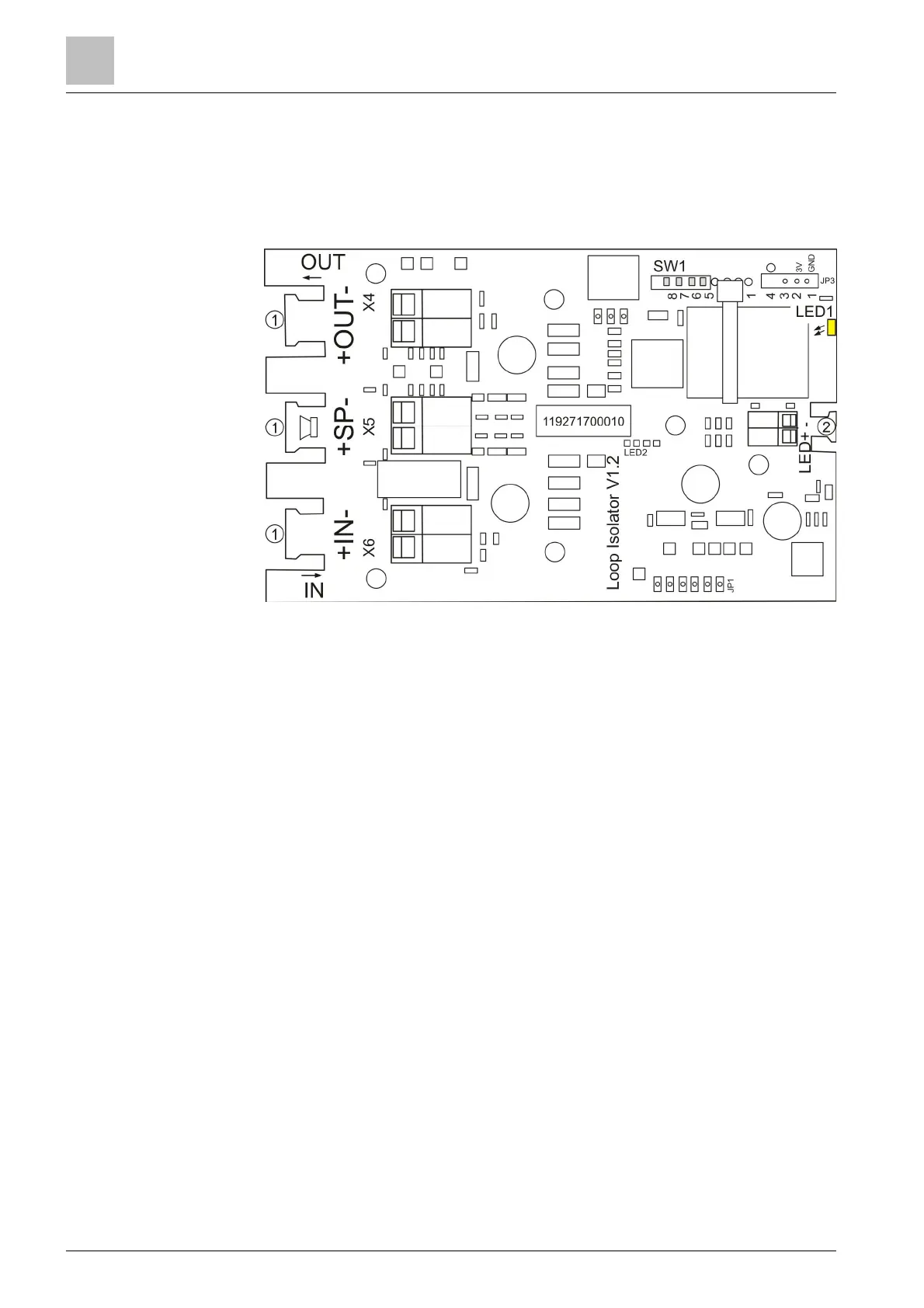

Fig. 5: Equipment view, loop isolator (100 V) PCA2005-A1
1 Fastening tabs for relieving strain on loudspeaker lines
2 Fastening tab for relieving strain on the LED connection cable
X4 Connection terminals for '+OUT-' loudspeaker line output
X5 Connection terminals for '+SP-' loudspeaker
X6 Connection terminals for '+IN-' loudspeaker line input
LED1 LED status display
LED +
-
Connection terminal for external loop isolator LED
SW1 SIL switch for configuration (single-in-line switch)
