Siemens RUGGEDCOM RMC20 User Manual

Introduction
1.2Description
• 21 AWG galvanized steel enclosure suitable for DIN or panel mounting provide
secure mechanical reliability
Simple Plug and Play Operation
• Simple, externally-accessible configuration
• Transmit and receive data LED indicators for quick and easy troubleshooting
• Fully integrated power supply connects directly to power source permanently for
reliable maintenance-free operation
Universal Power Supply Options
• 24VDC, 48VDC or HI (88-300VDC / 85 - 264VAC) options for worldwide
operability
• Integrated high-reliability power supply eliminates the need for external power
transformer
• Screw down terminal blocks ensure reliable maintenance-free connections
• All power supplies CSA/UL 62368-1 approved for 85 °C (185 °F) operation
1.2 Description

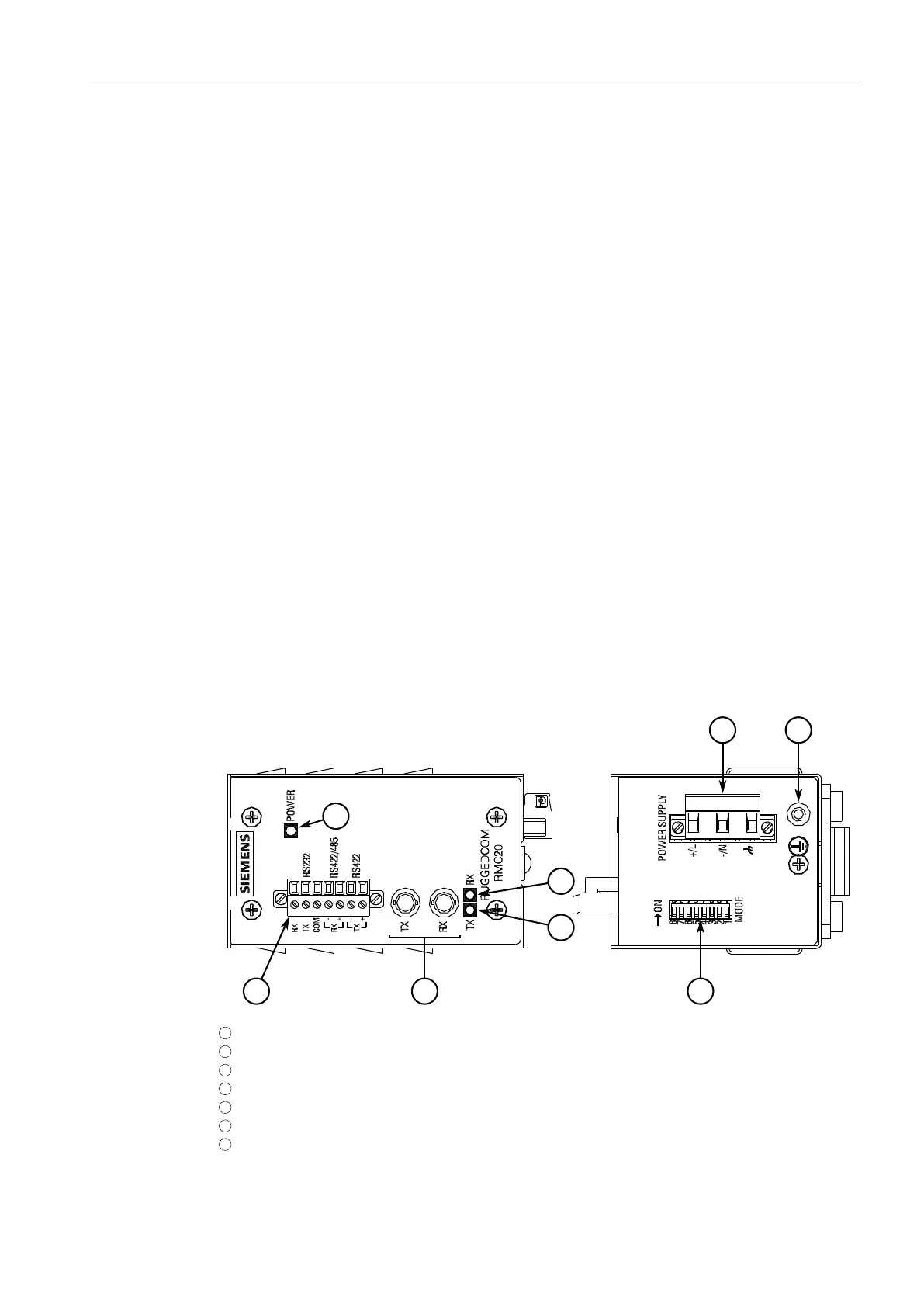

The RUGGEDCOM RMC20 features various ports, controls and indicator LEDs on
the display panel for connecting, configuring and troubleshooting the device. The
display panel can be located on the rear, front or top of the device, depending on the
mounting configuration.
87
1
4
5
2
3
6
1
POWER LED
2
Serial Terminal
3
Fiber Optic Ethernet Ports
4
RX LED
5
TX LED
6
MODE Switch
7
Power Terminal Block
2
RUGGEDCOM RMC20
Installation Manual, 04/2021, C79000-G8976-1007-10

Siemens RUGGEDCOM RMC20 Specifications

General

Brand	Siemens
Model	RUGGEDCOM RMC20
Category	Media Converter
Language	English
