Installing the Device
2.3.2Mounting the Device to a Panel
2.3.2 Mounting the Device to a Panel
To mount the device to a panel, do the following:
1. Disassemble the device and panel adapter.
a. Remove the screw at the bottom of the adapter.
b. Pull the device out of the adapter.
4
1
3
4
5
2
1
RUGGEDCOM RMC20
2
Panel Adapter
3
Mounting Holes
4
Screw
5
Metal Clips

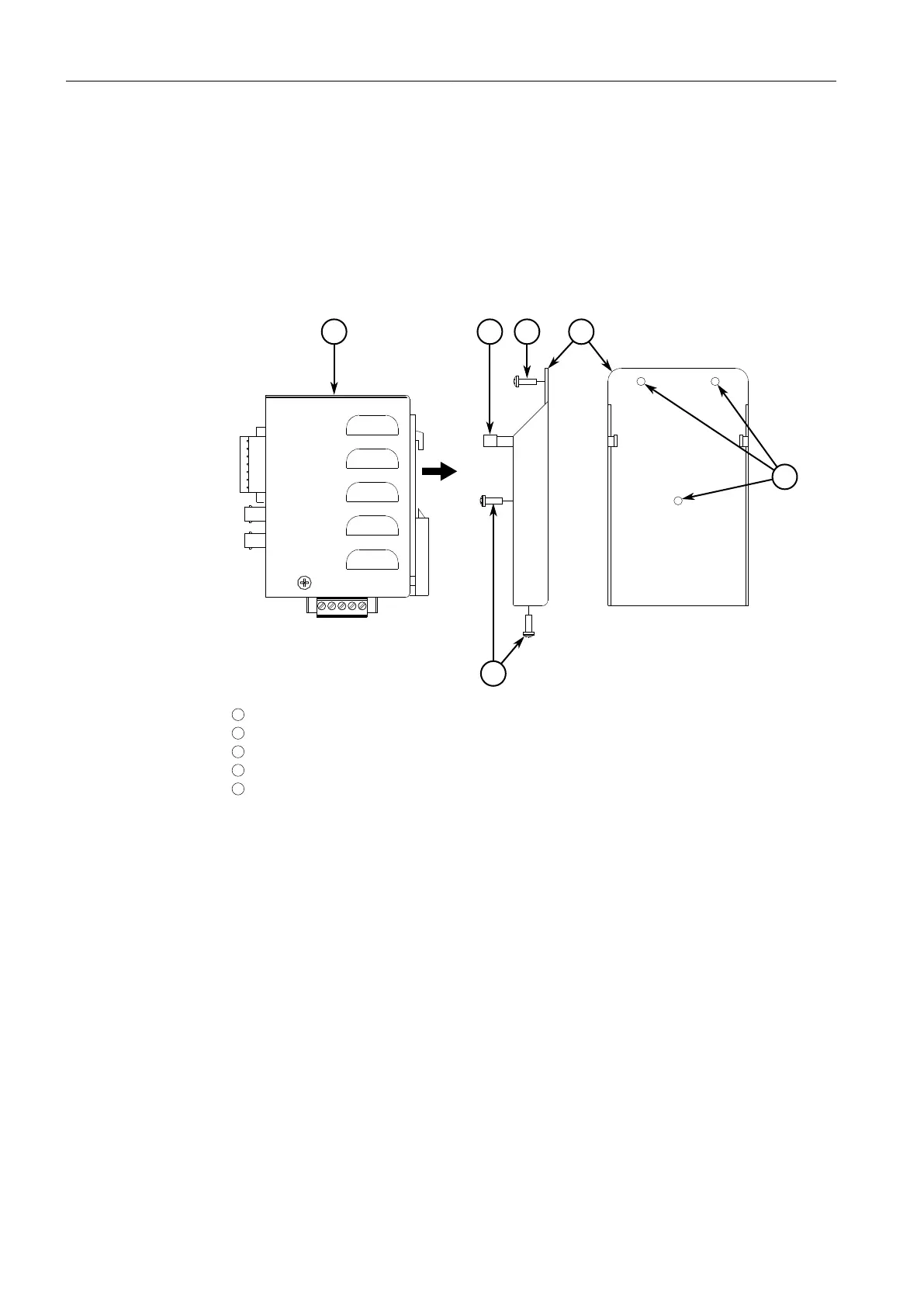

Figure2.3 Panel Mounting
2. Place the panel adapter against the panel and align the adapater with the
mounting holes.
3. Secure the panel adapter using three #6-32 screws.
4. Insert the device into the adapter. Make sure the device is secured between the
two metal clips.
5. Install the screw previously removed from the bottom of the panel adapter.
2.4 Setting the Operating Mode
To accommodate a wide array of serial devices, the RUGGEDCOM RMC20 is equipped
with a MODE DIP switch located on the bottom of the device. The switch configures
the RUGGEDCOM RMC20 to accommodate different serial partners that operate at
RUGGEDCOM RMC20
Installation Manual, 04/2021, C79000-G8976-1007-10
9
