Chapter 2
Installing the Device
Mounting the Device to a Rack 9

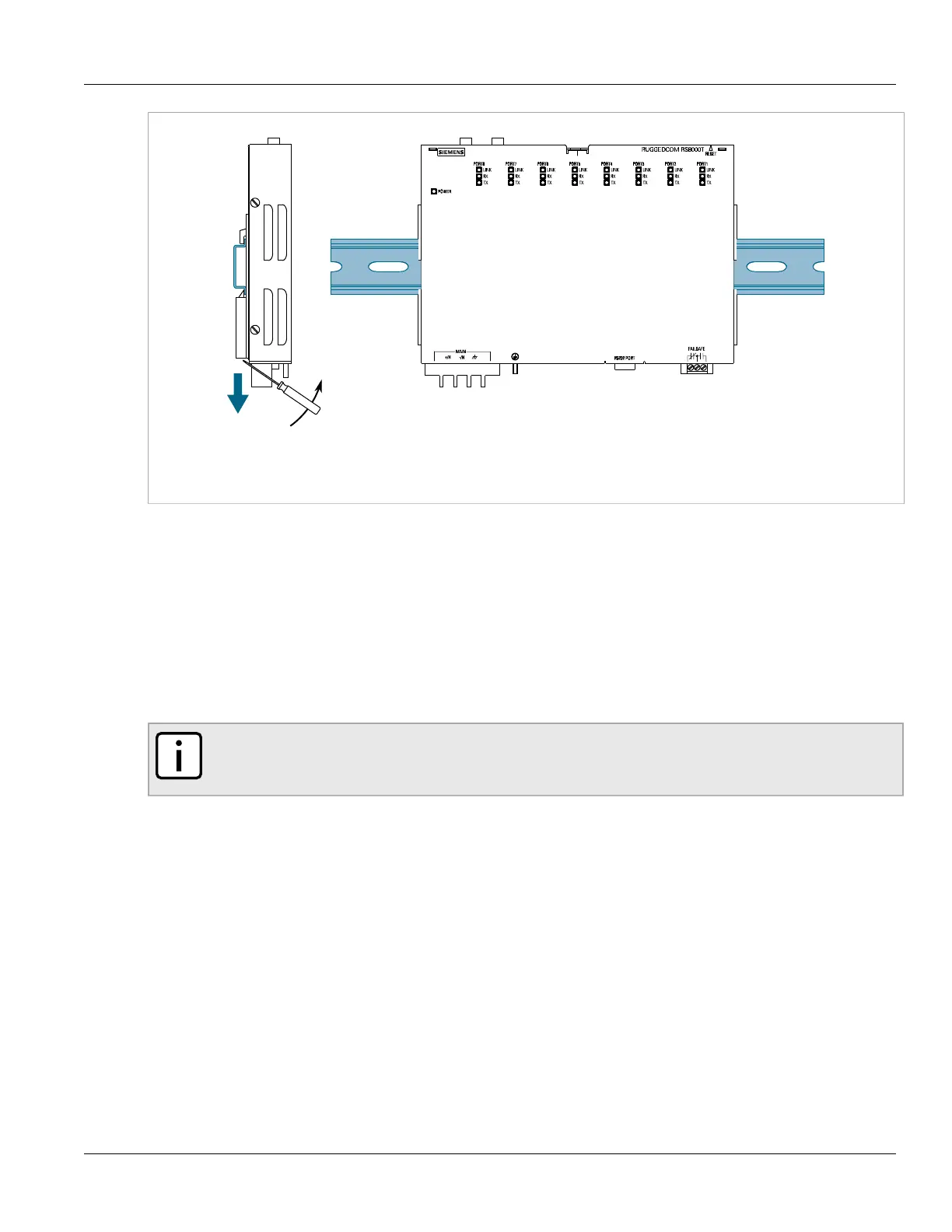

Figure2:DIN Rail Mounting
1.Panel/DIN Rail Adaptor 2.DIN Rail 3.Screw
2. Install one of the supplied screws on either side of the device to secure the adapters to the DIN rails.
Section2.2.2
Mounting the Device to a Rack
To secure the device to a standard 48 cm (19 in) rack, do the following:
1. Remove the four screws from the side of the device.
2. Insert the device into rack mount adapter and use the screws to secure it.
NOTE
The device can be installed with the communication ports facing the front or rear of the rack,
depending on the desired orientation.
