Siemens RUGGEDCOM RSG909R Installation Guide

Chapter 2
Installing the Device
RUGGEDCOM RSG909R
Installation Guide
10 Mounting the Device to a Panel
1
2

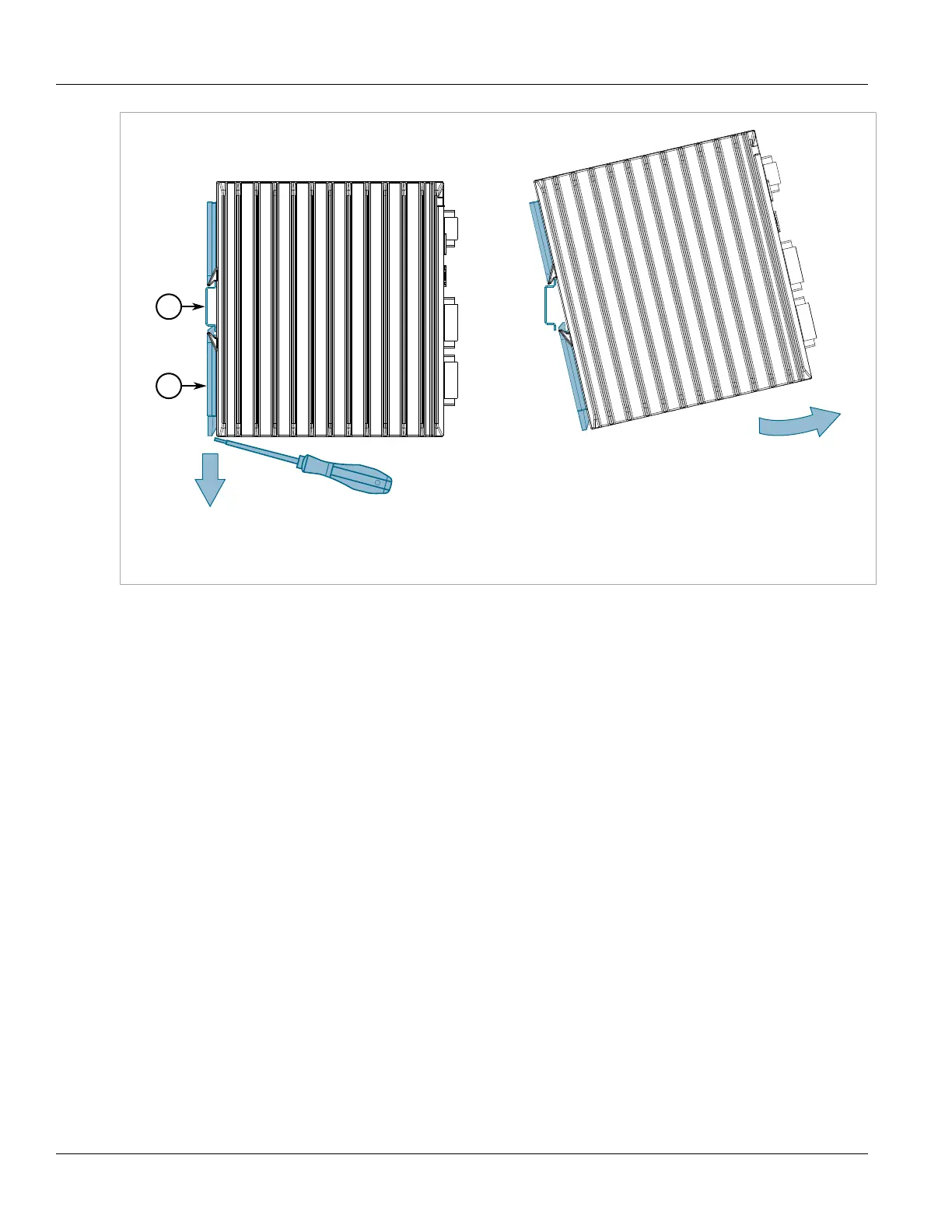

Figure4:Removing the Device from a DIN Rail
1.DIN Rail 2.DIN Rail Bracket
2. Swing the bottom of the device up and away from the DIN rail.
3. Lift the device off of the DIN rail.
Section2.4.2
Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RSG909R can be equipped with panel adapters on the top and bottom of
the chassis. The adapters allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Secure the mounting adapters to the top and bottom of the device using the four M4 screws each included
with the device.
