RUGGEDCOM RSG909R
Installation Guide
Chapter 4
Communication Ports
Redundant Network Access (RNA) Ports 25
Communication Ports
The RUGGEDCOM RSG909R can be equipped with various types of communication ports to enhance its abilities
and performance.
1
2
3

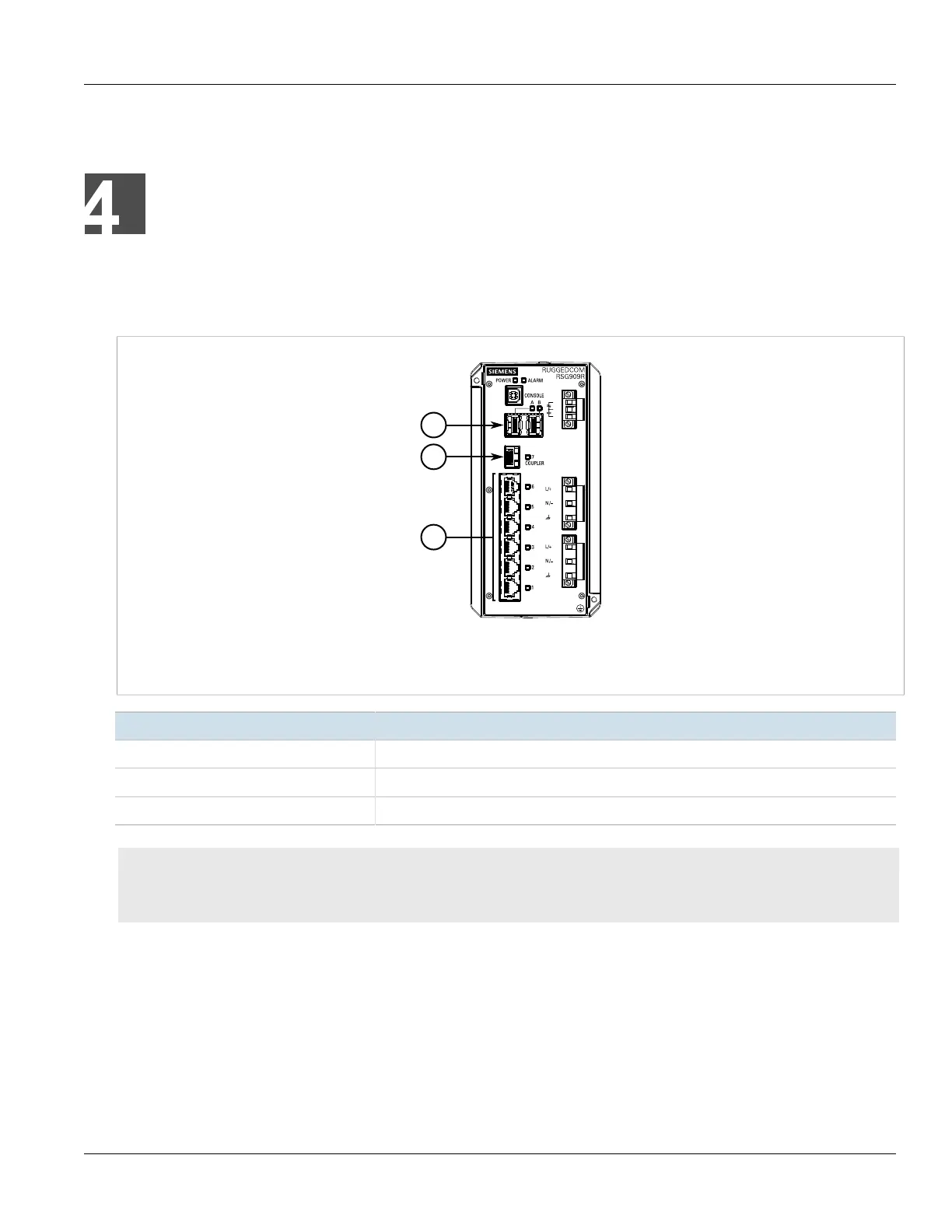

Figure23:Port Assignment
1.Ports A and B 2.Port 7 3.Ports 1 to 6
Port Type
A/B SFP Transceiver (1000Base-SX/LX)
7 SFP Transceiver (1000Base-SX/LX)
1 to 6 Copper (10/100/1000Base-TX) Ethernet Ports
CONTENTS
• Section4.1, “Redundant Network Access (RNA) Ports”
• Section4.2, “Copper Ethernet Ports”
Section4.1
Redundant Network Access (RNA) Ports
The RUGGEDCOM RSG909R features three dedicated Small Form-factor Pluggable (SFP) transceiver sockets for
PRP/HSR applications:
