Chapter 4
Communication Ports
RUGGEDCOM RSG909R
Installation Guide
26 Copper Ethernet Ports
HSR/PRP Ports
Port Description
A
B
Port A and B enable the device to connect to a Parallel
Redundancy Protocol (PRP) network or a High-Availability
Seamless Redundancy (HSR) ring.
7 The Coupler port serves the following purposes:
• To connect two HSR devices to form a QuadBox
• To connect a SAN (Singly Attached Node) to an HSR ring via
an HSR device
• To connect a VDAN (Virtual Dual Attached Node) to a PRP
network via a PRP device
• To connect an HSR ring to a PRP network and vice versa
• To connect an HSR ring to an RSTP network

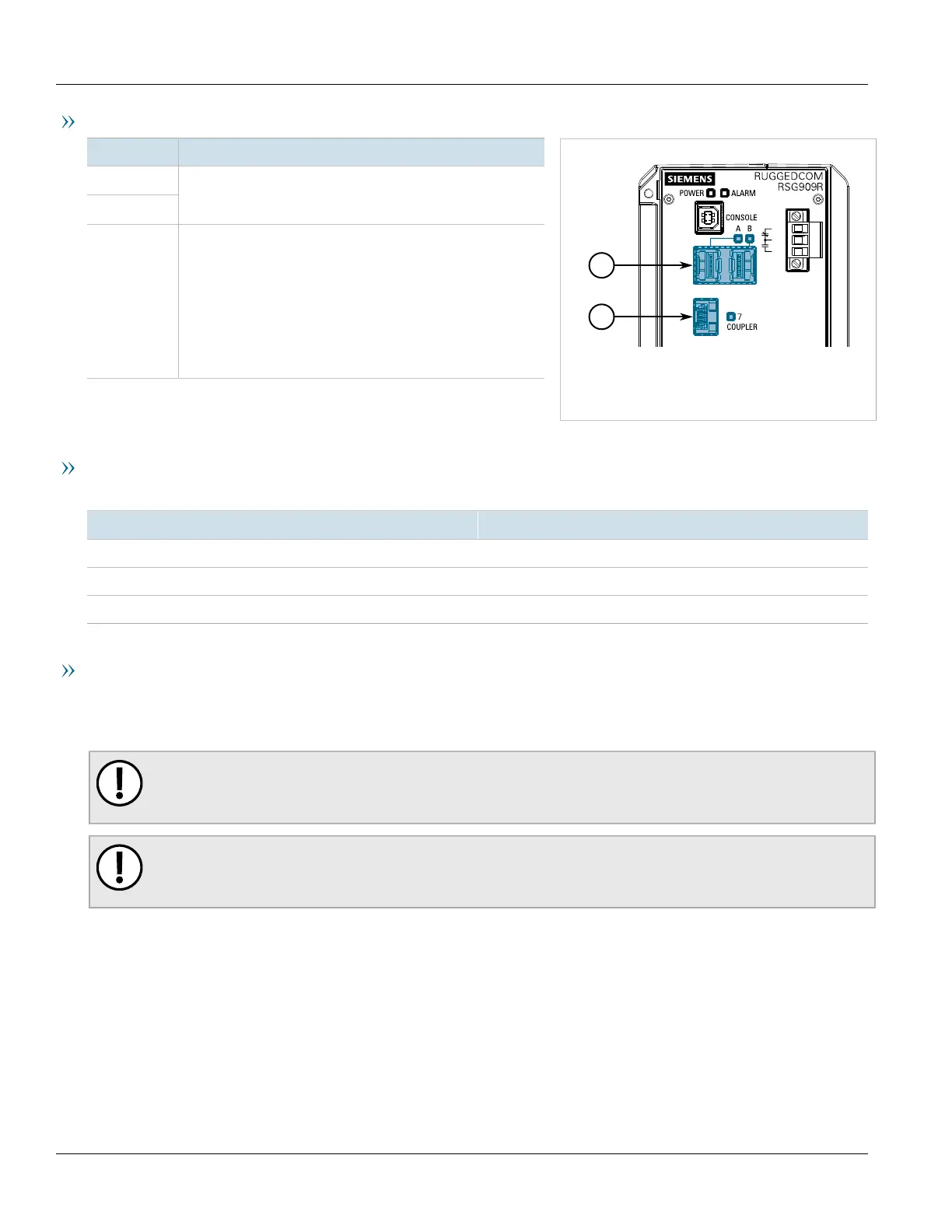

Figure24:HSR/PRP Ports
1.Ports A and B 2.Port 7 (Coupler)
LEDs
Each RNA port features an LED that indicates the link/activity state of the port.
State Description
Green (Solid) Link established
Green (Blinking) Link activity
Off No link detected
Compatible SFPs
For more information about which SFP transceivers are compatible with the RUGGEDCOM RSG909R, as well as
instructions for ordering and installation/removal, refer to the RUGGEDCOM SFP Transceiver Catalog [https://
support.industry.siemens.com/cs/ca/en/view/109482309].
IMPORTANT!
Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability
as a result of performance issues related in whole or in part to third-party components.
IMPORTANT!
RNA ports A and B must operate at the same speed. Inconsistent speed in these ports will generate an
alarm. Make sure to use SFPs with compatible speeds on ports A and B.
Section4.2
Copper Ethernet Ports
The RUGGEDCOM RSG909R supports multiple 10/100/1000Base-TX Ethernet ports that allow connection to
standard Category 5 (CAT-5) shielded twisted-pair cables with RJ45 male connectors.
