RUGGEDCOM RSG909R
Installation Guide
Chapter 4
Communication Ports
Copper Ethernet Ports 27
WARNING!
Electric shock hazard – risk of serious personal injury and/or equipment interference. When shielded
cables are used, make sure the shielded cables do not form a ground loop via the shield wire and the
RJ45 receptacles at either end. Ground loops can cause excessive noise and interference, but more
importantly, create a potential shock hazard that can result in serious injury.
LEDs
Each port features an LED that indicates the state of the port.
State Description
Green (Solid) Link established
Green (Blinking) Link activity
Off No link detected
Pin-Out
The following is the pin-out for the RJ45 male connectors:
1
8

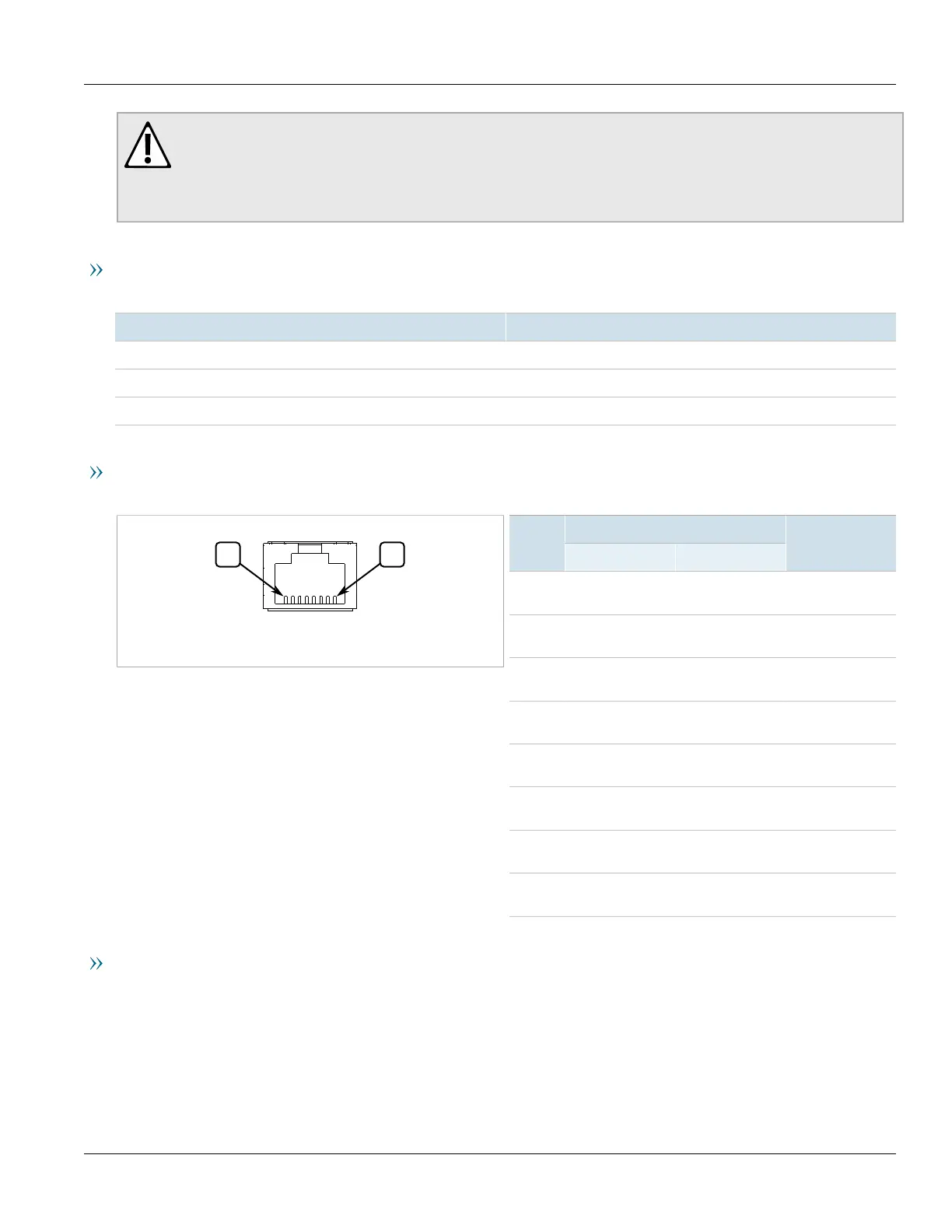

Figure25:RJ45 Ethernet Port Pin Configuration
Name
Pin
10/100Base-TX 1000Base-TX
Description
1 RX+ BI_DB+ Receive Data+ or
Bi-Directional
2 RX- BI_DB- Receive Data- or
Bi-Directional
3 TX+ BI_DA+ Transmit Data+
or Bi-Directional
4 Reserved (Do
Not Connect)
BI_DD+ Bi-Directional
5 Reserved (Do
Not Connect)
BI_DD- Bi-Directional
6 TX- BI_DA- Transmit Data- or
Bi-Directional
7 Reserved (Do
Not Connect)
BI_DC+ Bi-Directional
8 Reserved (Do
Not Connect)
BI_DC- Bi-Directional
Specifications
For specifications on the available copper Ethernet ports, refer to Section5.4, “Copper Ethernet Port
Specifications”.
