Installing the Device
2.3Mounting the Device
IMPORTANT
Le remplacement de composants pourrait compromettre l'admissibilité à la Classe I,
Division 2.
Sample Hazardous Location Label
The following is an example of the RUGGEDCOM RSG910C hazardous location label:

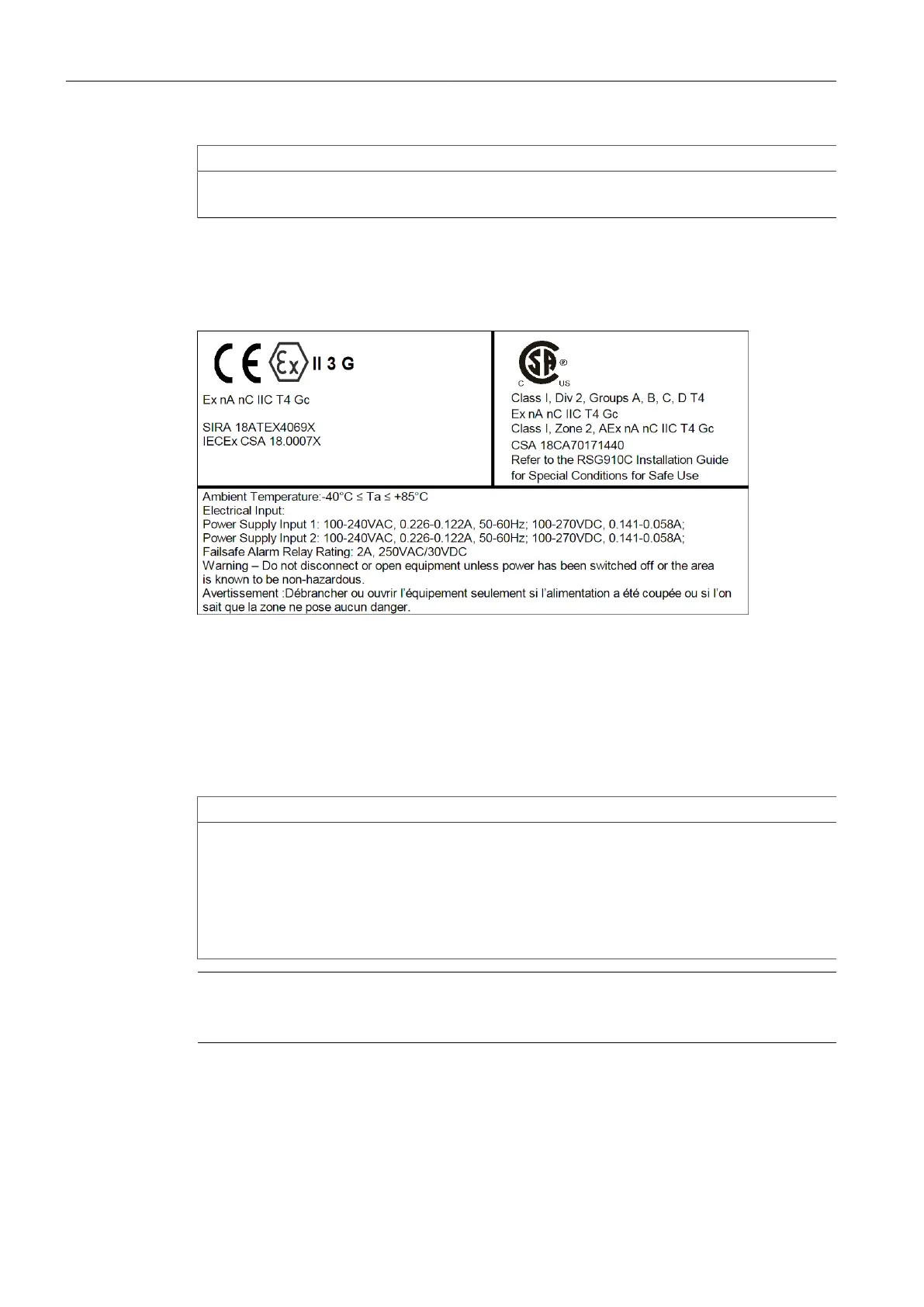

Figure2.1 Compliance Label (Example)
2.3 Mounting the Device
The RUGGEDCOM RSG910C is designed for maximum mounting and display flexibili-
ty. It can be equipped with adapters that allow it to be attached to a DIN rail or panel.
IMPORTANT
Heat generated by the device is channeled outwards from the enclosure. As such, it
is recommended that 2.5 cm (1 in) of space be maintained on all open sides of the
device to allow for some convectional airflow.
Forced airflow is not required. However, any increase in airflow will result in a reduc-
tion of ambient temperature and improve the long-term reliability of all equipment
mounted in the rack space.
Note
For detailed dimensions of the device with either DIN rail or panel hardware installed,
refer to "Dimension Drawings (Page 28)".
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
