Siemens RUGGEDCOM RSG910C User Manual

Installing the Device
2.3.1Mounting the Device on a DIN Rail
2.3.1 Mounting the Device on a DIN Rail
The RUGGEDCOM RSG910C can be ordered with a DIN rail adapter preinstalled on the
back of the chassis. Use the adapter to mount the device to a standard 35 mm (1.4
in) by 15 mm (0.6 in) IEC/EN 60715 or TS35 DIN rail.
Mounting the Device
To mount the device to a DIN rail, do the following:
1. Hook the top teeth of the adapter onto the DIN rail.
Note
The adapter features a sliding release with a slot at the bottom for a flathead
screwdriver.
2
2
3
1
1
1
DIN Rail
2
DIN Rail Adapter

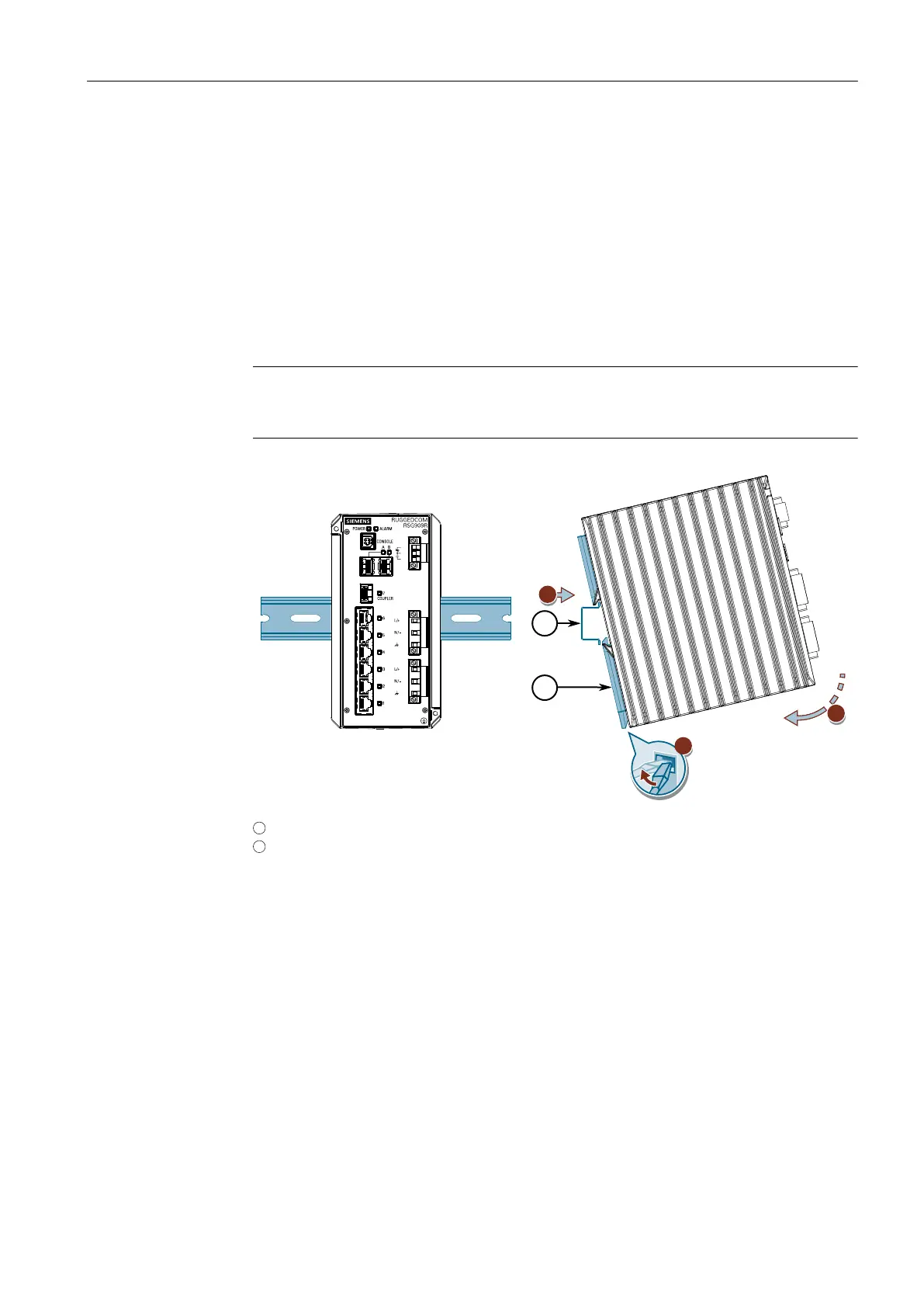

Figure2.2 Mounting the Device to a DIN Rail
2. Insert a flathead screwdriver into the slot of the sliding release and move it
down.
3. Push the device against the bottom of the DIN rail, then let go of the sliding re-
lease to latch the device.
8
RUGGEDCOM RSG910C
Installation Manual, 02/2020, C79000-G8976-1405-06
