Siemens RUGGEDCOM RX5000 - Chapter 5; Dimension Drawings

RUGGEDCOM RX5000
Installation Guide
Chapter 5
Dimension Drawings
29
Dimension Drawings
NOTE
All dimensions are in millimeters, unless otherwise stated.
441.7
446.8
469.6
479.8
221.5
311.9
5.8
16.0
31.8
10.9
25.4
177.8 175.3
16.0
12.7
101.6
117.6
133.4

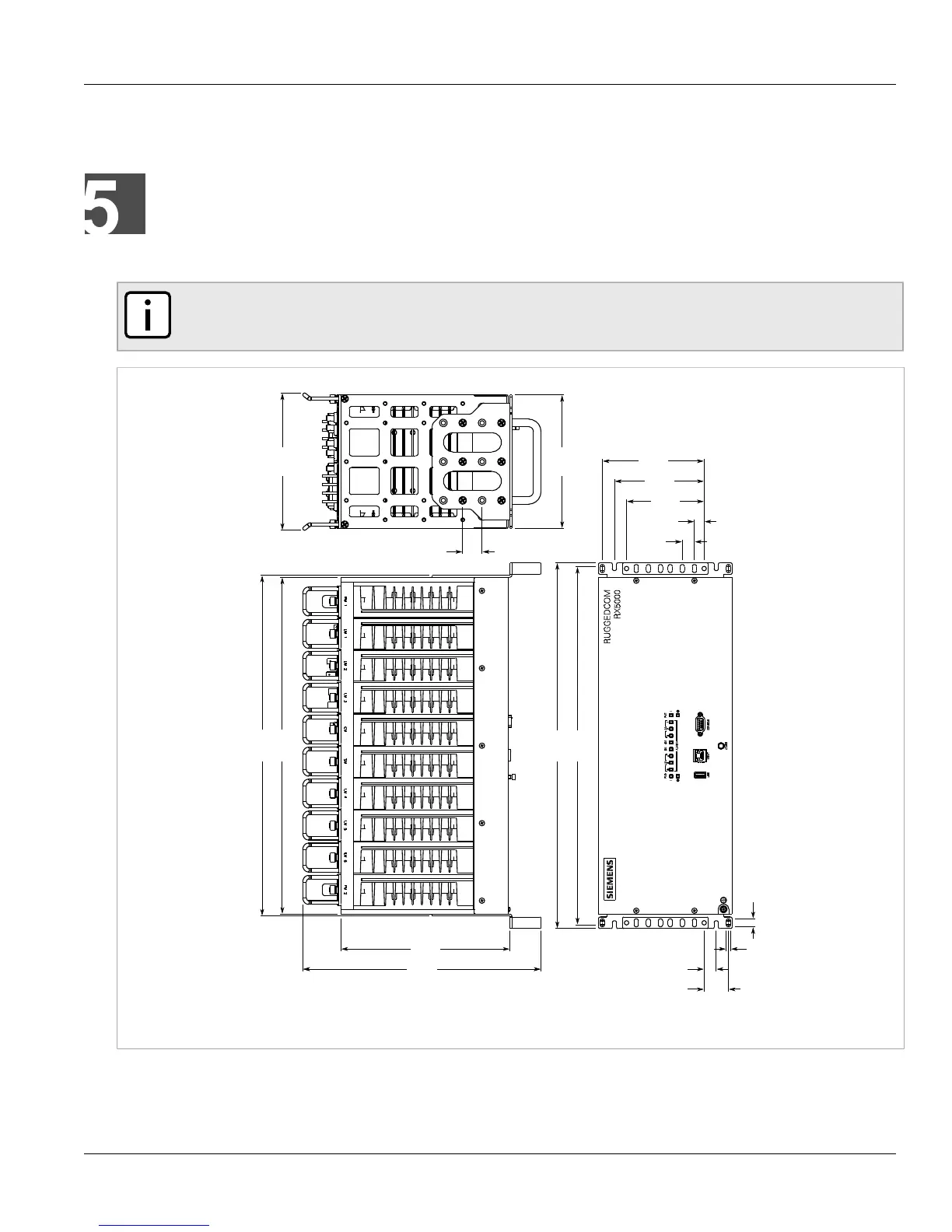

Figure19:Overall Dimensions
