11 Handheld terminal AZW20.20
The AZW20.20 is used to set all parameters of the RVW26…
It is connected to the socket of the RVW26… which is located behind the hinged alu-
minium front plate.
The AZW20.20 is powered via the connecting cable.
When using the connecting cable, the AZW20.20 allows the flame to be adjusted and
viewed up to a distance of 20 m between the burner and the RVW26…
The handheld terminal features a display with 4 lines each comprising 16 characters,
and 6 buttons.

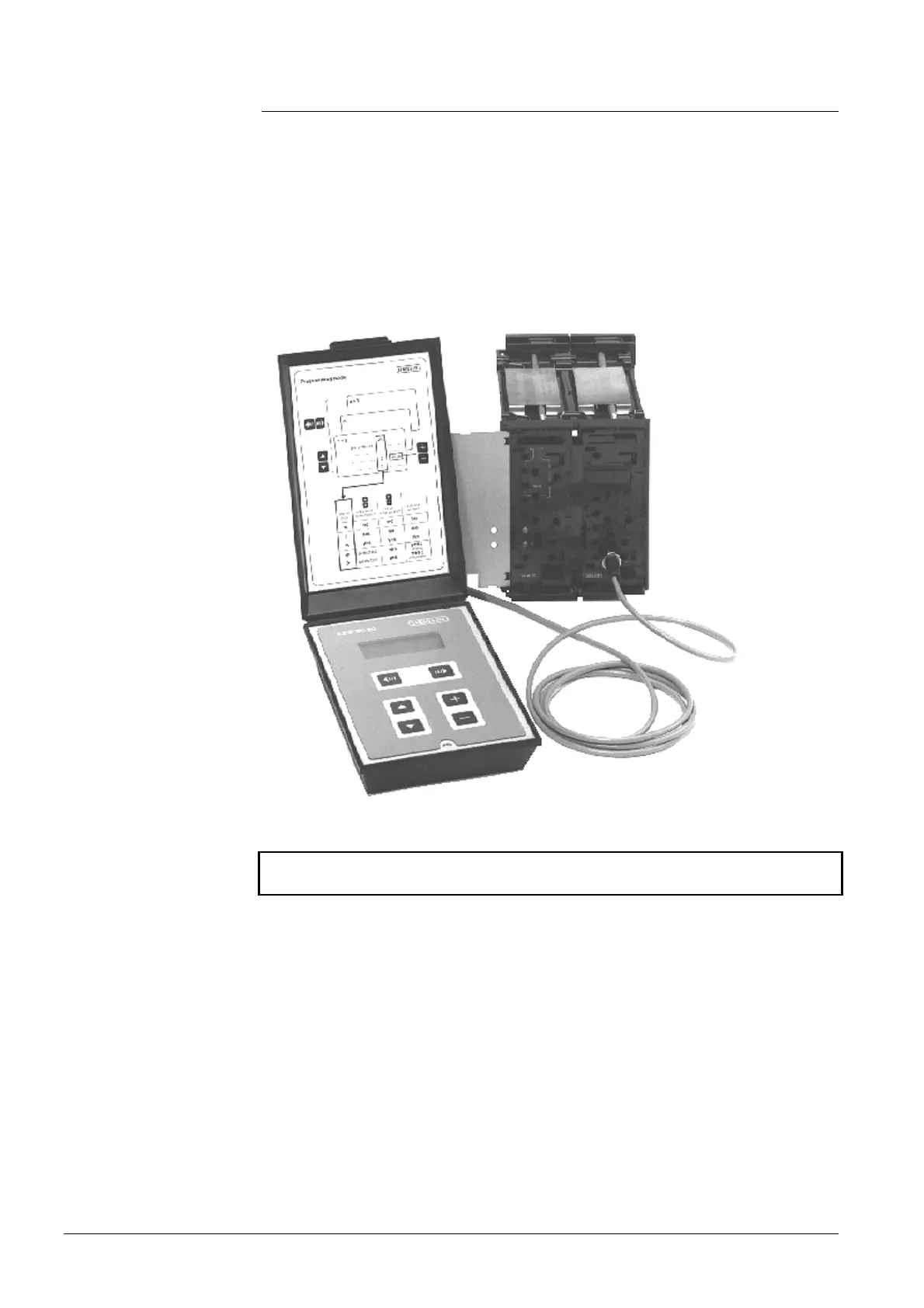

Fig. 20 Handheld terminal AZW20.20 with connecting cable KF8859
The handheld terminal may only be used during commissioning
and when doing service work.
