45/93
Building
Technologie
s Division
User Manual
RWF55...
CC1U786
7en
Infrastruct
ure & Cities Sector
6 Operation
05.11
.2013
6.7
Display of software version
*
Press
+
7867
z05/06
12

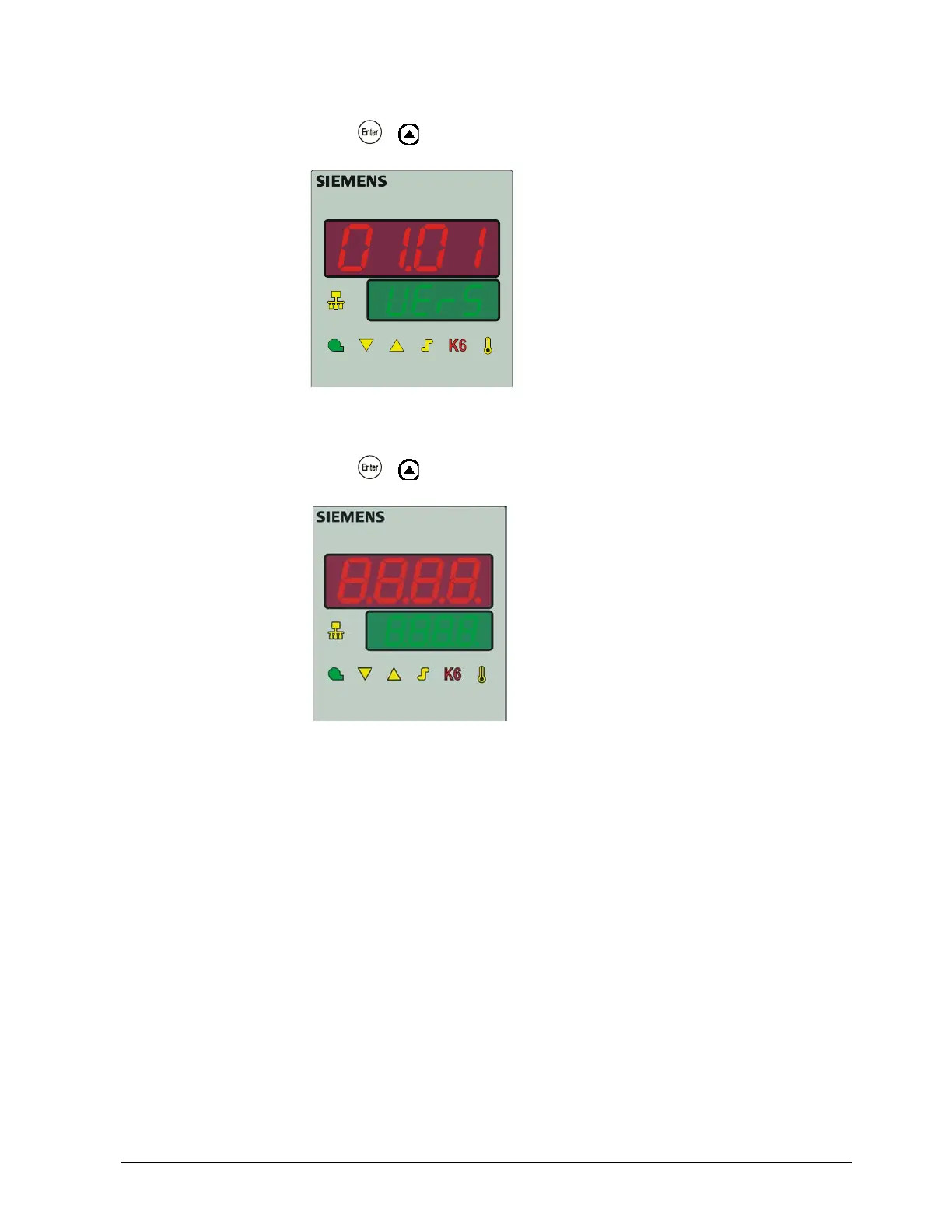

Figure
24: Disp
lay of soft
ware ver
sion
*
Press
+
again.
7867z2
5/061
2
Figure 25: Display segment
test
All display segments and LEDs light up; the actual value display (red)
flashes for about
10 seconds.
Segment test
44
