Siemens RWF55.51A9 User Manual

56/93
Building Technologies Division User Manual RWF55... CC1U7867en
Infrastructure & Cities Sector 8 Configuration ConF 05.11.2013
8.6 Alarm function AF
ConF  AF 
The alarm function can be used to monitor the analog inputs. If the limit value is
exceeded, multifunctional relay K6 is activated (depending on the switching
characteristic). The alarm function can have different switching functions (lk1 to lk8)
and can be set to a deviation from the active setpoint or to a fixed limit value.
In the case of alarm functions lk1 to lk6, the actual value InP1 is monitored in relation
to a limit value AL that has to be set (with the absolute value dependent on the setpoint
(w)).
lk1 lk2
1
0
HYSt
AL
w
x
7867z12/0612
1
0
w
x
AL
HYSt
7867z13/0612
lk3 lk4
1
0
HYSt
AL
w
x
7867z14/0612
1
0
HYSt
AL
w
x
7867z15/0612
lk5 lk6
1
0
H
YSt
AL
w
x
7867z16/0612
1
0
HYSt
AL
w
x
7867z17/0712

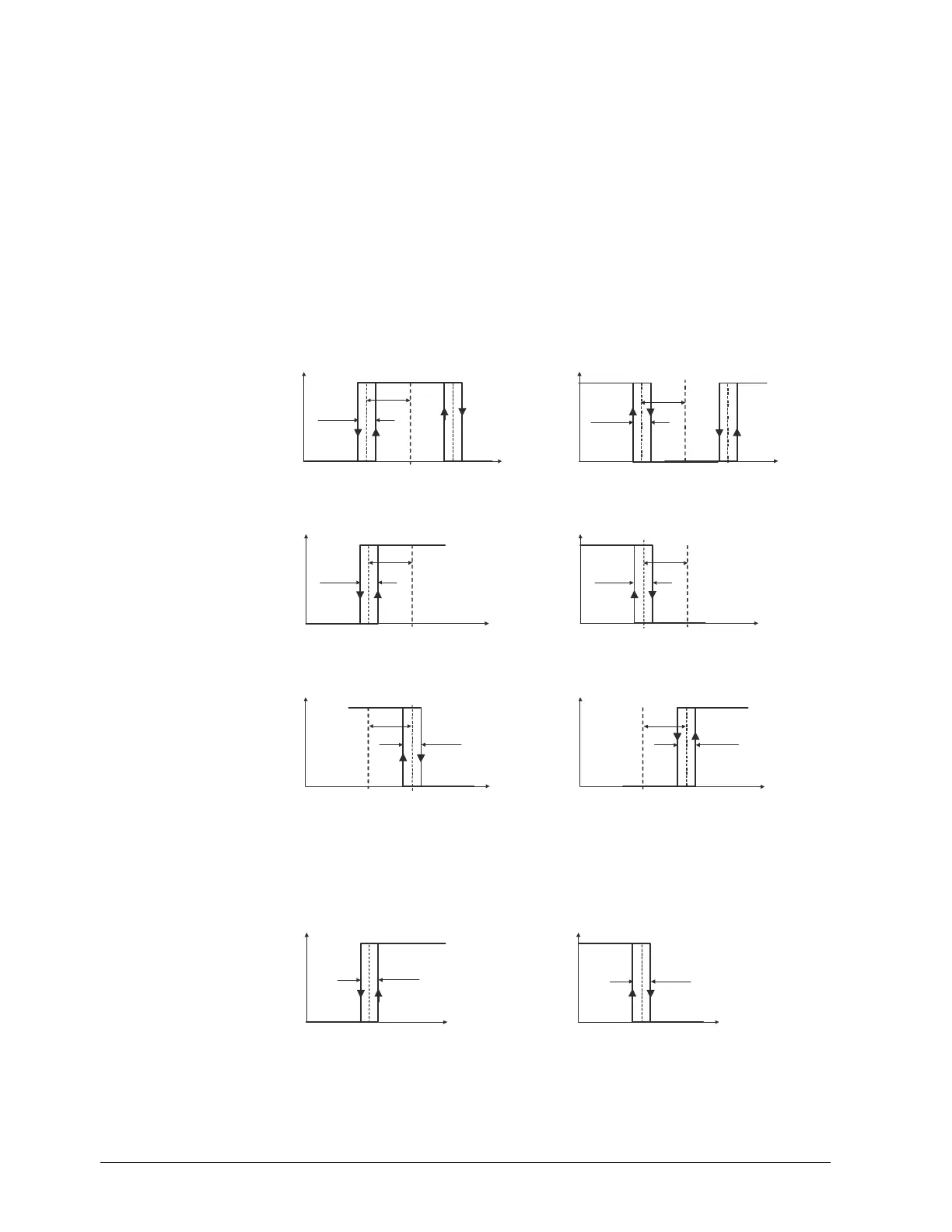

Figure 28: Alarm function lk1...lk6
In the case of alarm functions lk7 and lk8, all analog inputs InP1...InP3 can be
monitored in relation to a fixed limit value AL that has to be set.
lk7 lk8
1
0
HYSt
AL
x
7867z18/0612
1
0
H
YSt
AL
x
7867z19/0612
Figure 29: Alarm function lk7 and lk8
Limit value AL relative to
setpoint (w)
Fixed limit value AL
