SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
11
Connecting SCALANCE M-800 to WAN

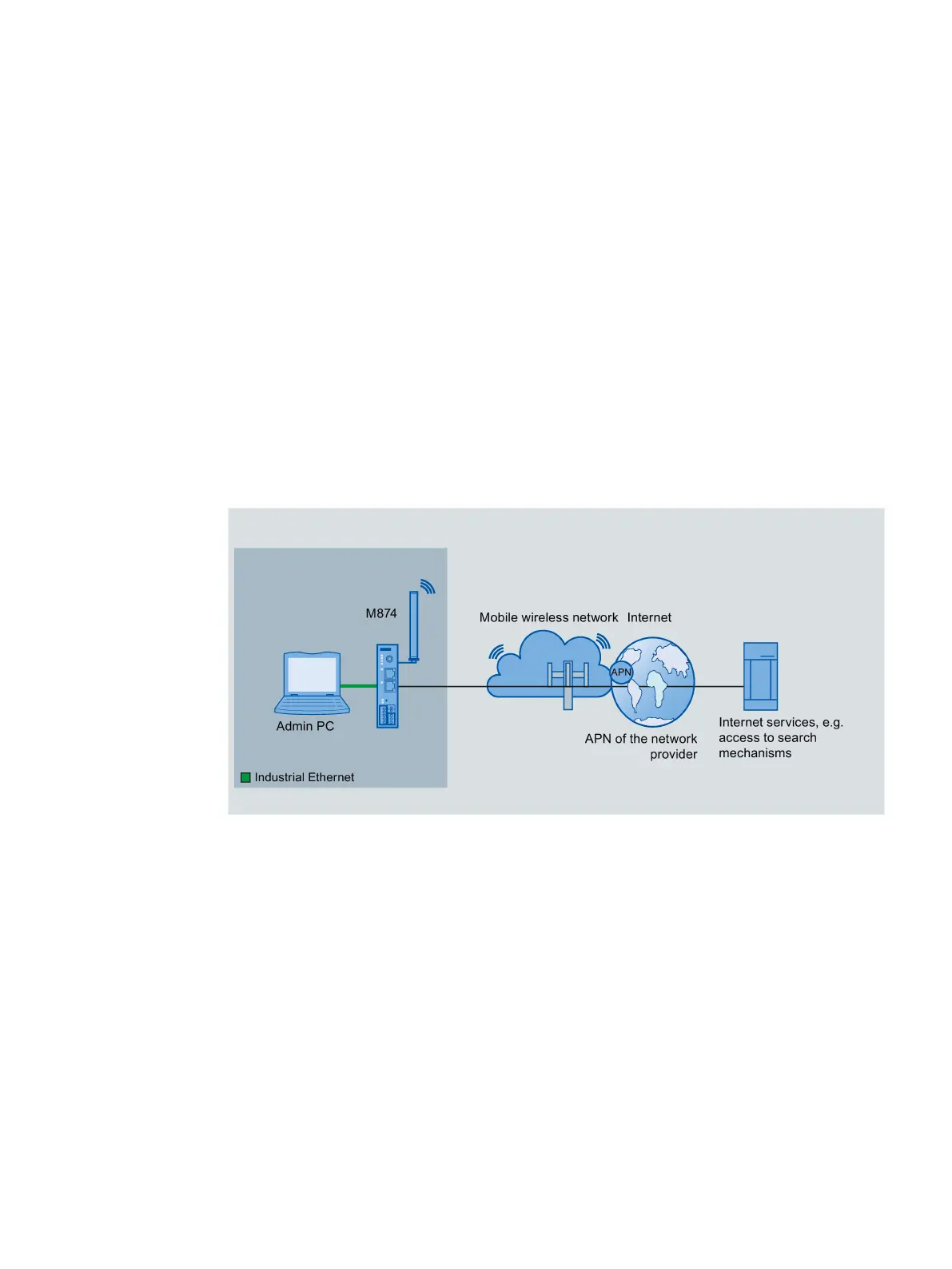

Connecting M874 with the mobile wireless network
1.1.1
In this example the SCALANCE M874 that is in the factory settings status is assigned an IP
address. Following this, the device will be configured using Web Based Management
(WBM).
Required devices/components
● 1 x M874 (additional option: a suitably installed standard rail with fittings)
● 1 x suitable antenna
● 1 x SIM card of your mobile wireless provider (the required services, for example Internet
are enabled)
● 1 x 24 V power supply with cable connector and terminal block plug
● 1 x PC for configuring the M874.
● The required network cable, TP cable (twisted pair) complying with the IE FC RJ-45
standard for Industrial Ethernet
