Connecting SCALANCE M-800 to WAN
1.3 Connecting M826 with SHDSL
SCALANCE M-800 Getting Started
54 Getting Started, 06/2015, C79000-G8976-C337-04
Launching Web Based Management
Procedure
1. On the Admin PC, open the Control Panel with the menu command "Start" > "Control
Panel".
2. Click "Network and Sharing Center" and select the "Change adapter settings" option in
the navigation menu on the left.

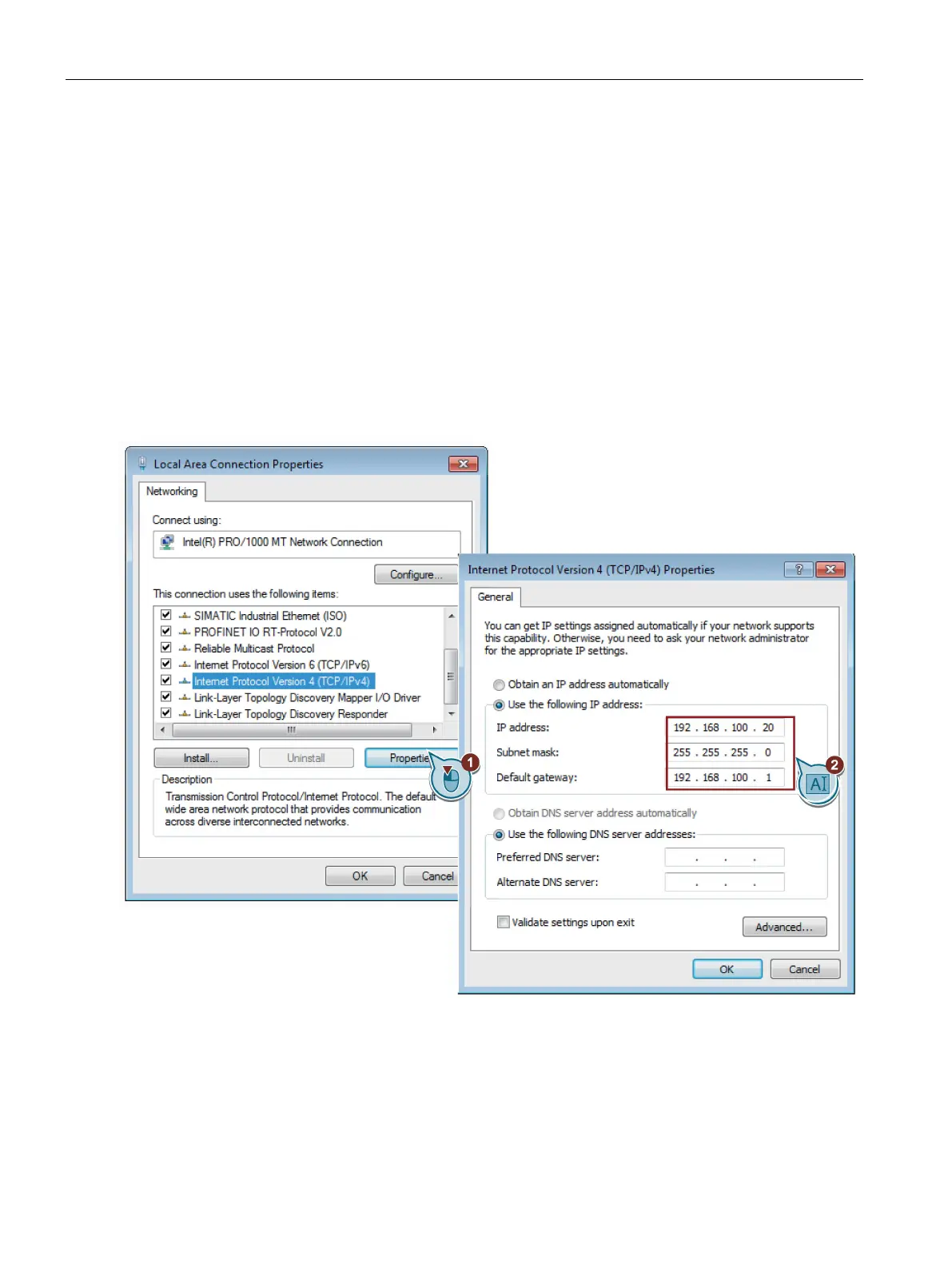

3. Right-click on the "LAN Connection" symbol and select the "Properties" menu command.
4. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box.
5. Enter the values assigned to the Admin PC from the "Settings used (Page 50)" table.
To Next Page
