Connecting SCALANCE M-800 to WAN
1.2 Connecting M81x to ADSL
SCALANCE M-800 Getting Started
Getting Started, 06/2015, C79000-G8976-C337-04
35
5. Click "Network and Sharing Center" and select the "Change Adapter Settings" option in
the navigation menu on the left.

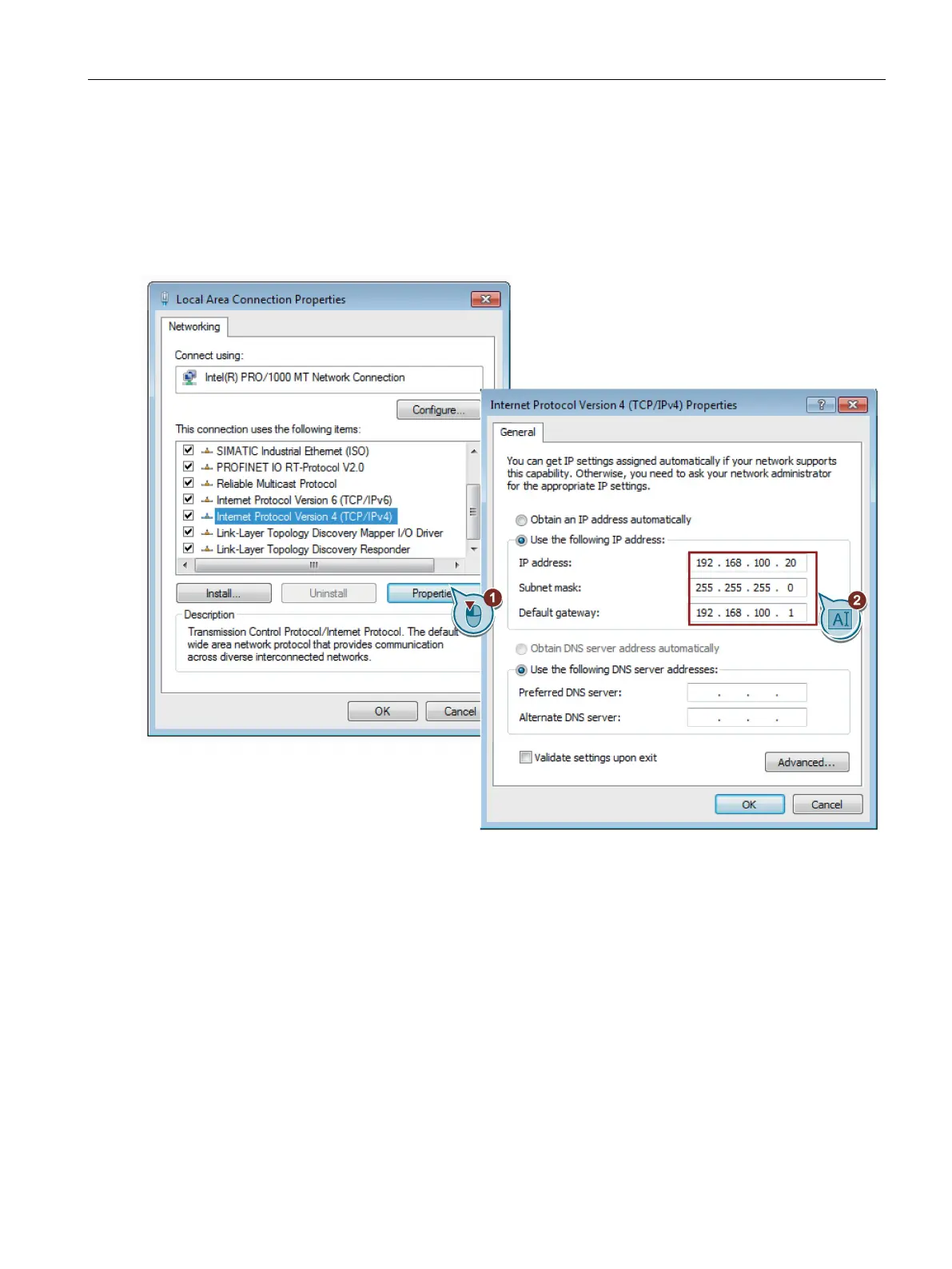

6. In the "Local Area Connection Properties" dialog, enable the "Internet Protocol Version 4
(TCP/IPv4)" check box.
7. Enter the values assigned to the Admin PC from the table in the relevant boxes.
8. Confirm the dialogs with "OK" and close the Control Panel.
9. Enter the IP address "192.168.100.1" in the address box of the Web browser. If there is a
problem-free connection to the device, the login page of Web Based Management
(WBM)is displayed.
10.Log in with the user name "admin" and the modified password.
