Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
150 Configuration Manual, 08/2018, C79000-G8976-C267-13
Description

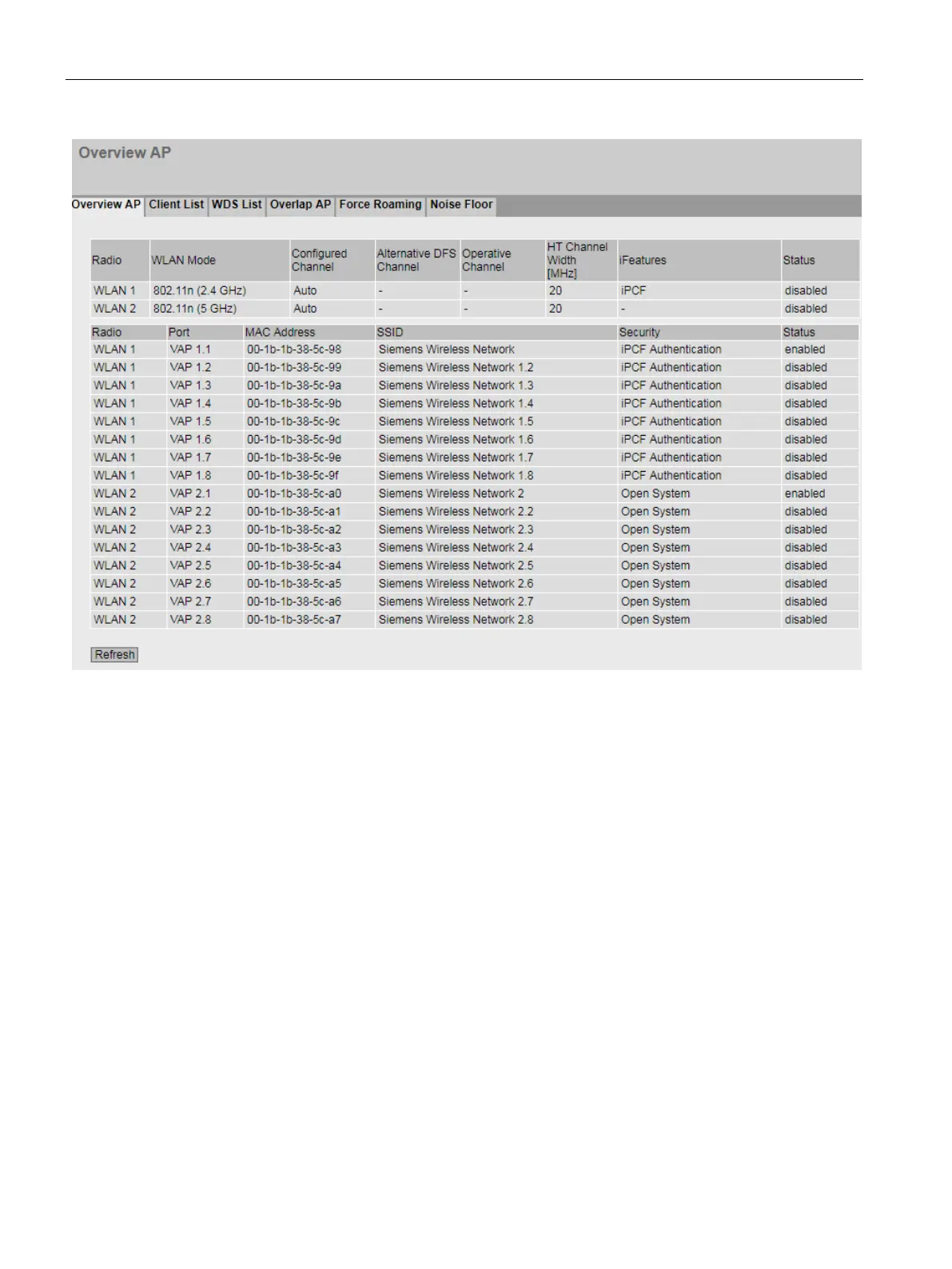

Table 1 has the following columns:
●
Radio
Shows the available WLAN interfaces.
●
Port
Shows the available VAP interfaces.
●
WLAN Mode
Shows the transmission standard. If DFS is activated, the transmission standard
"802.11h" is not shown additionally but only the configured transmission standard
"802.11a".
●
Configured Channel
Shows the configured channel. If "Auto" is displayed, the access point searches for a free
channel itself.
●
Alternative DFS Channel
If the DFS function is enabled, the configured alternative channel of the access point is
displayed.
If "Auto" is displayed, the access point searches for an alternative channel itself.
