Ingress Interfaces
Shows a list of all ingress interfaces to which this rule applies.
●
Egress Interfaces
Shows a list of all egress interfaces to which this rule applies.
Note
Subnet mask for individual hosts
If you create the rule for a single system (one IPv4 address), specify the subnet mask
"255.255.255.2
55".
Steps in configuration
1. Click the "Create" button. A new row with a unique number (rule number) is created in the
table.
2. Enter the data of the source in "Source IP" and in "Source Subnet Mask".
3. Enter the data of the destination in "Dest. IP" and in "Dest. Subnet Mask".
4. In the "Action" drop-down list select whether the frame is forwarded or rejected when the
frame corresponds to the ACL rule.
5. Click the "Set Values" button.
Deleting an entry
You cannot delete active entries.
1. Enable "Select" in the row to be deleted.
2. Click the "Delete" button. The entry is deleted.
6.9.6.2

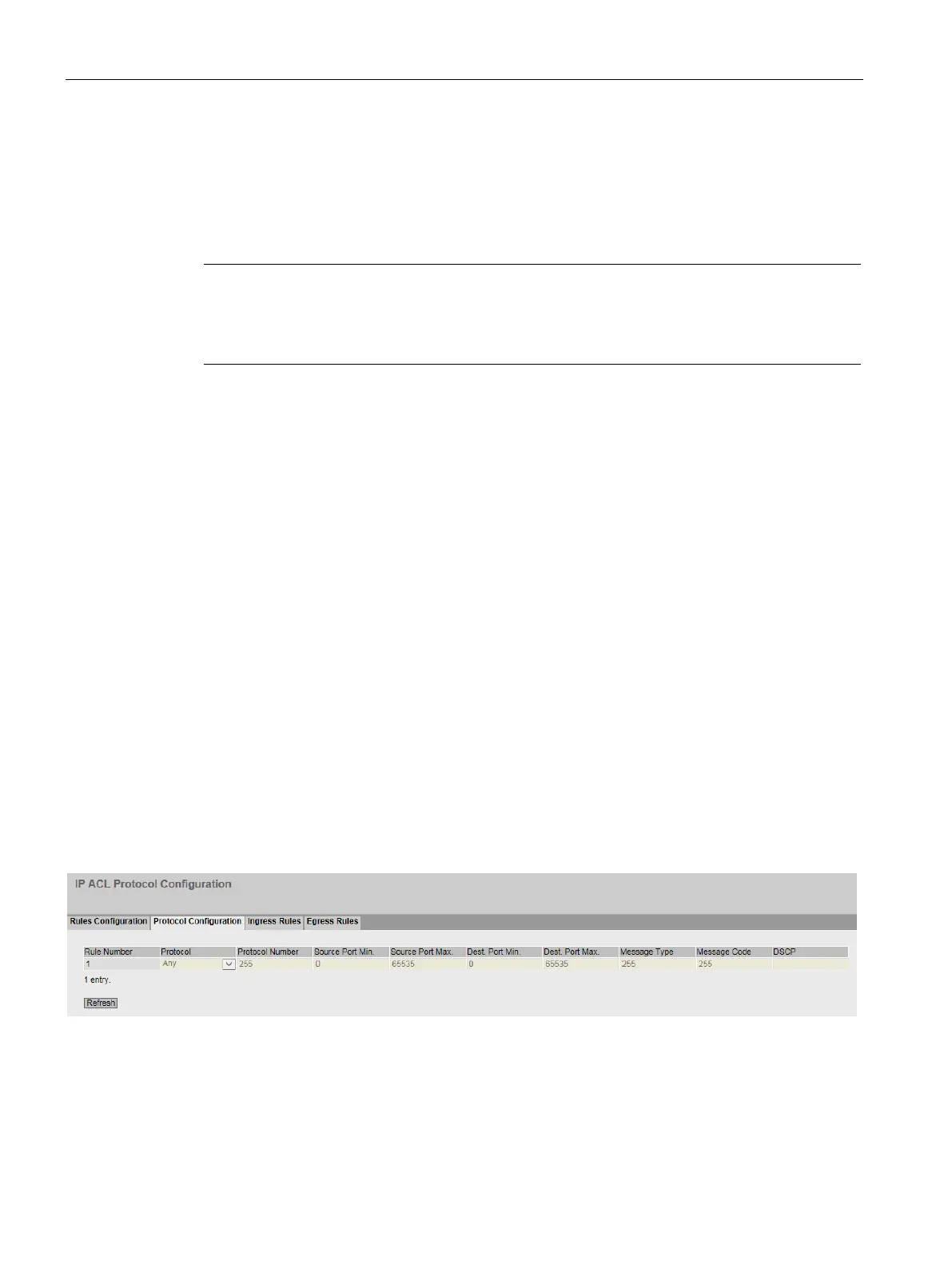

Protocol Configuration
On this page, you specify the rules for protocols.
