Description
2.1 Network structures
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
18 Configuration Manual, 08/2018, C79000-G8976-C267-13
The following article deals with the setting up of various network structures using access
points and clients. A client is also an access point in client mode.
Standalone configuration with access point
This configuration does not require a server and the access point does not have a
connection to a wired Ethernet. Within its transmission range, the access point forwards data
from one WLAN node to another.
The wireless network has a unique name. All the SCALANCE W700 devices exchanging
data within this network must be configured with this name.

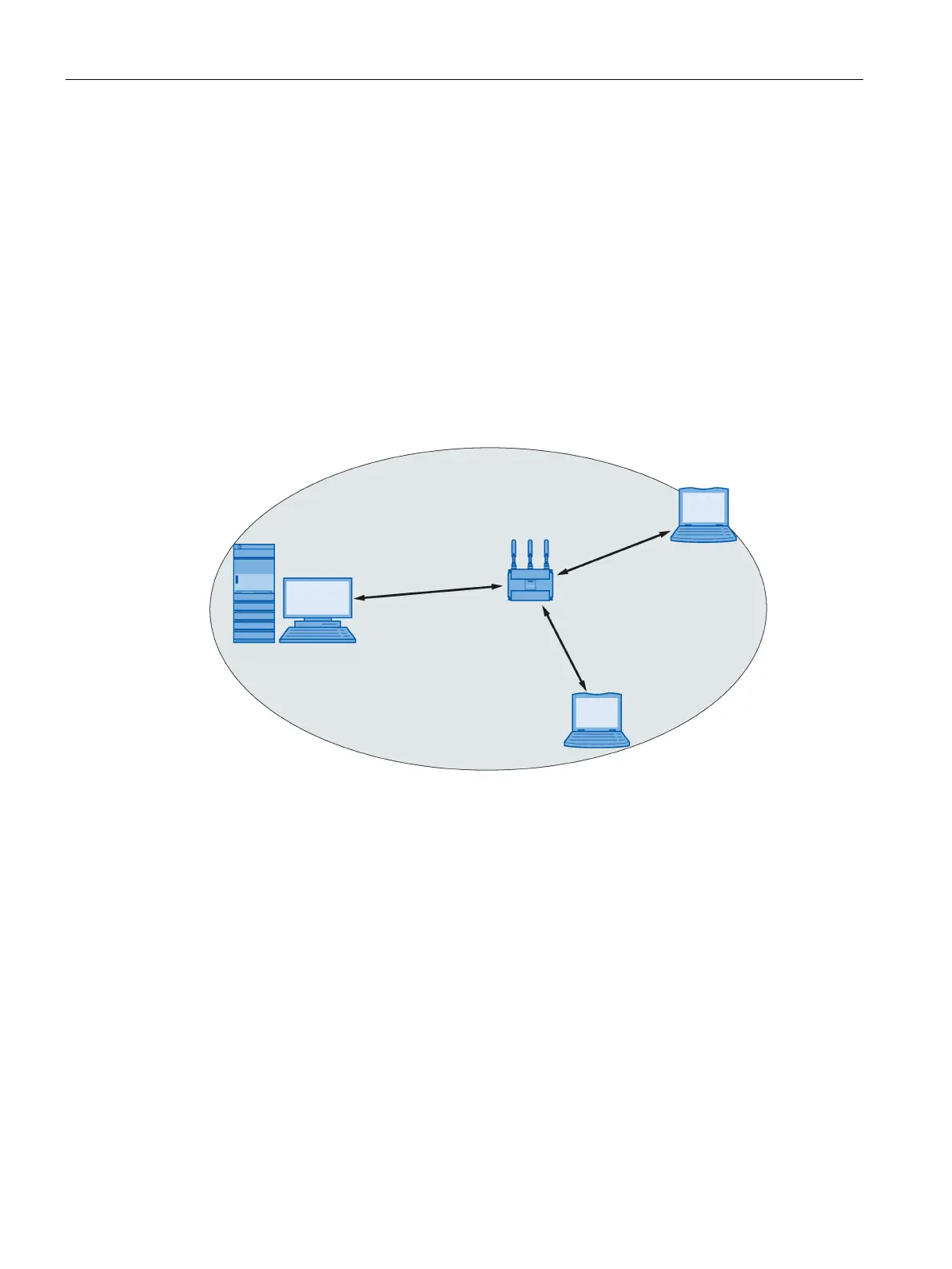

The gray area in the graphic symbolizes the wireless range of the access point.
