3.3 Product variants X-300
SCALANCE X-300
Compact Operating Instructions, 05/2016, A5E00982643-14
21
3.3.6
SCALANCE X308-2LD
Possible attachments
The SCALANCE X308-2LD provides the following options for the connection of end devices
or other network segments:
● 8 RJ-45 jacks
● 2 FO ports (for single mode fiber)

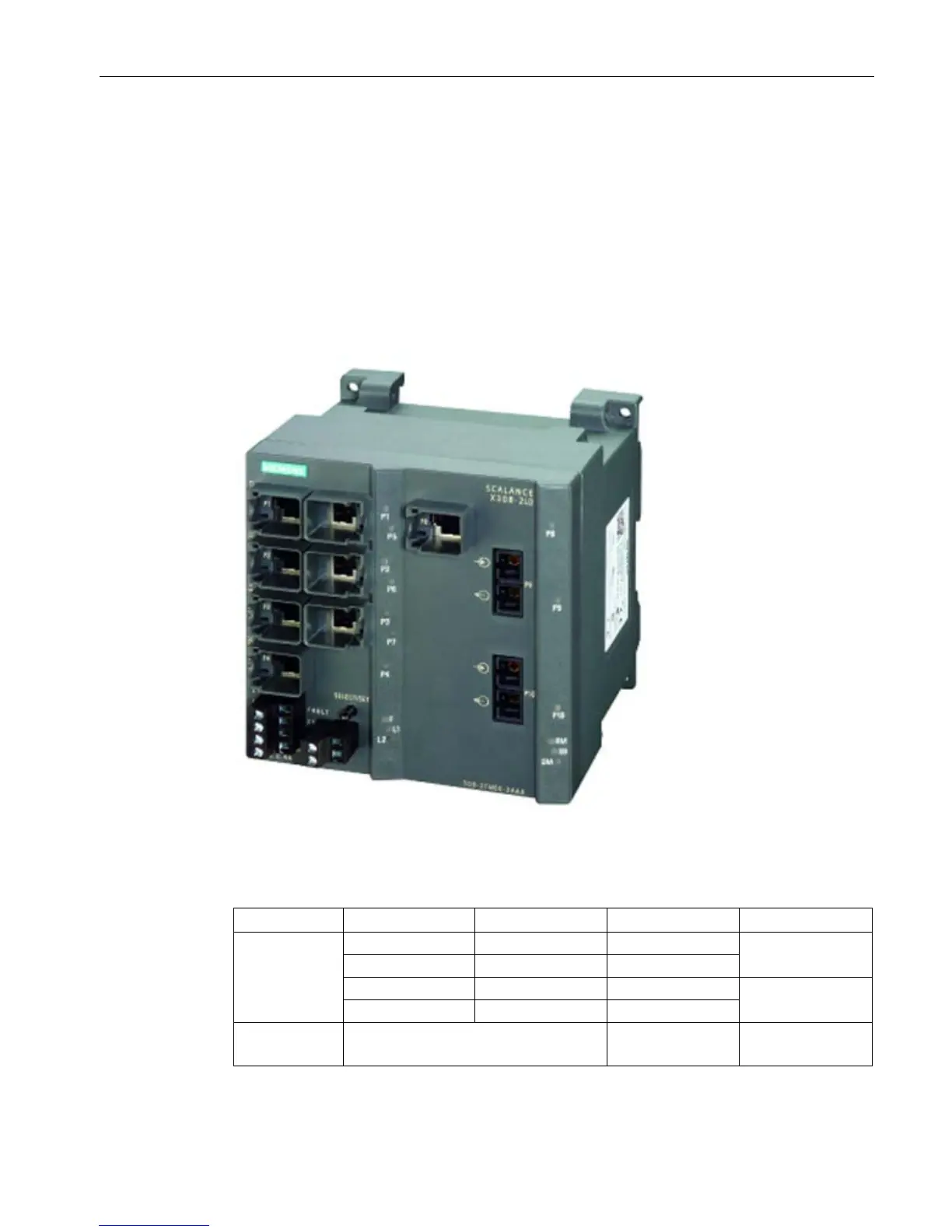

Image 3-6 SCALANCE X308-2LD
Column
1
2
3
4
Port number
P1 P5 P8 P9
P2
P6
-
P3
P7
-
P10
P4
-
-
Connection
type
Electrical: Fast Ethernet
Electrical:
Gigabit Ethernet
Optical:
Gigabit Ethernet
