Dimension drawings
7.1 Dimension drawing
SCALANCE X-300
Compact Operating Instructions, 05/2016, A5E00982643-14
63
Medium design

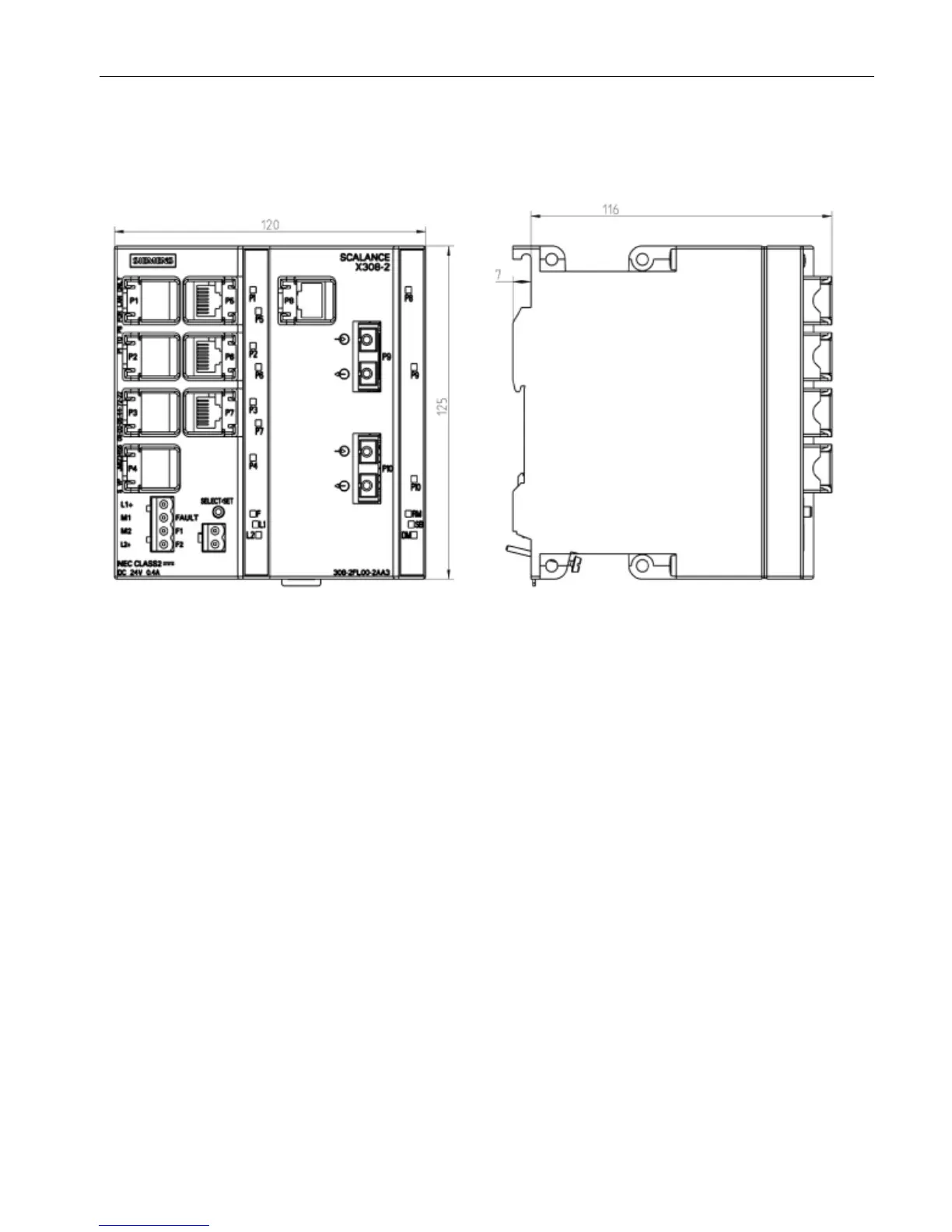

Image 7-3 Medium design dimension drawing (example used here SCALANCE X308-2)
