Description
2.2 Ergonomic design
3VA molded case circuit breakers with UL and IEC certification
Manual, 01/2019, L1V30435333-01
33

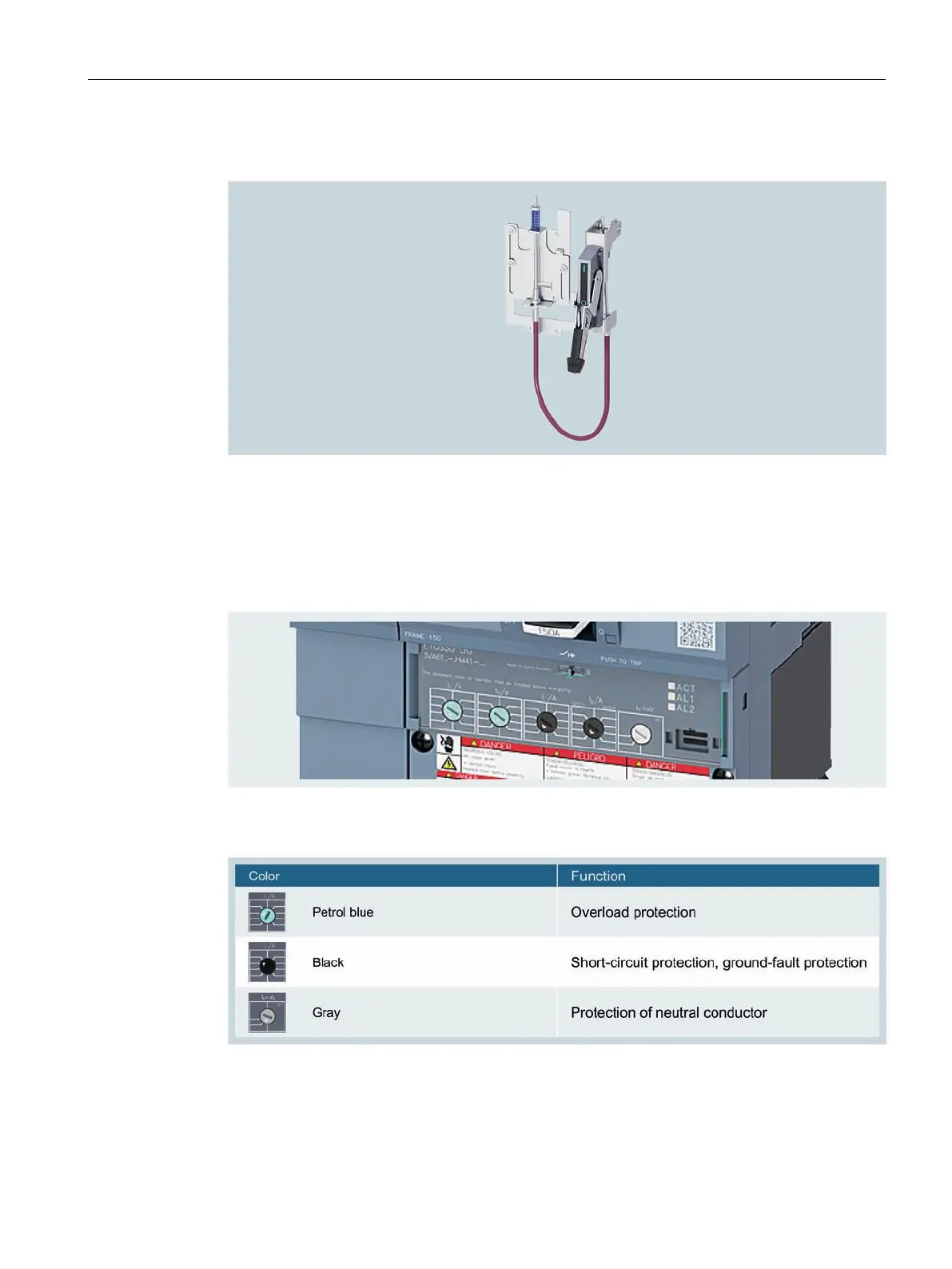

Operator kit with Bowden cable (Max-Flex operator)
The Max-Flex operator is a hand lever operator for operating the breaker from the outside of
the control panel. The handle is connected to the switching mechanism via a Bowden cable.
Color-coded control elements
The control elements on the thermal-magnetic and electronic trip units are color-coded.
Each colored control element is assigned to a corresponding protective function, helping you
to make the required settings quickly.
