Siemens SENTRON 3VA1 User Manual

Accessories
4.6 Motor operators
3VA molded case circuit breakers with IEC certificate
342 Manual, 03/2019, A5E03603177010-03
4.6.2.2
Opening, closing and resetting the 3VA molded case circuit breaker

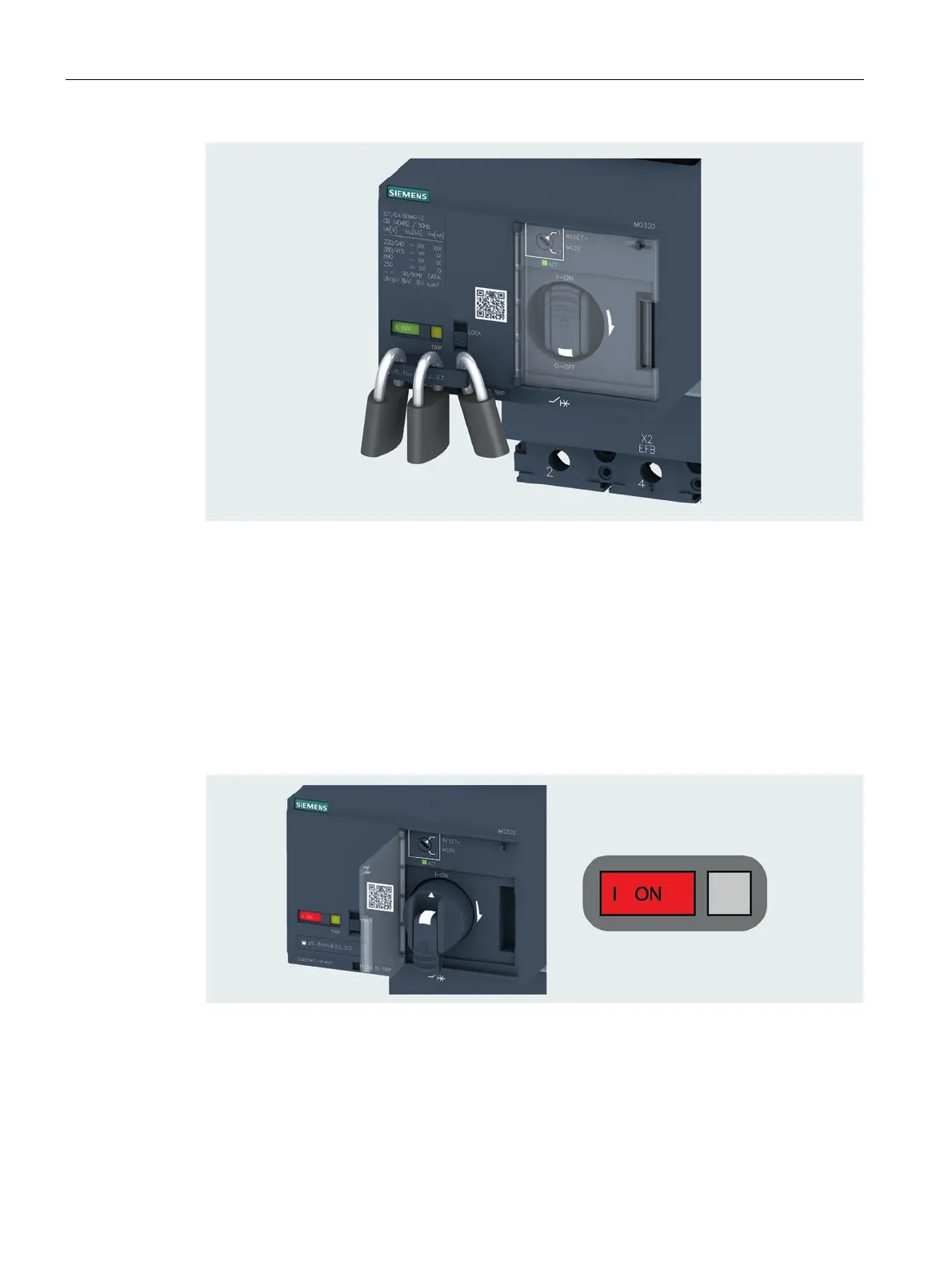

Closing and opening in MANUAL mode
The plastic window is open, the motor operator is in MANUAL mode. The supply to the LEDs
is also disconnected, but the motor operator remains fully operational.
● Close the 3VA molded case circuit breaker:
Turn the handle clockwise until the breaker status indicator displays ON (I).
The molded case circuit breaker is now ON (I). The contacts are closed.

Siemens SENTRON 3VA1 Specifications

General

Type/Model	SENTRON 3VA1
Rated Voltage (Ue)	690V AC
Number of Poles	3P, 4P
Standards	IEC 60947-2
Mounting Type	Fixed
