Control interconnection board
PC 1617

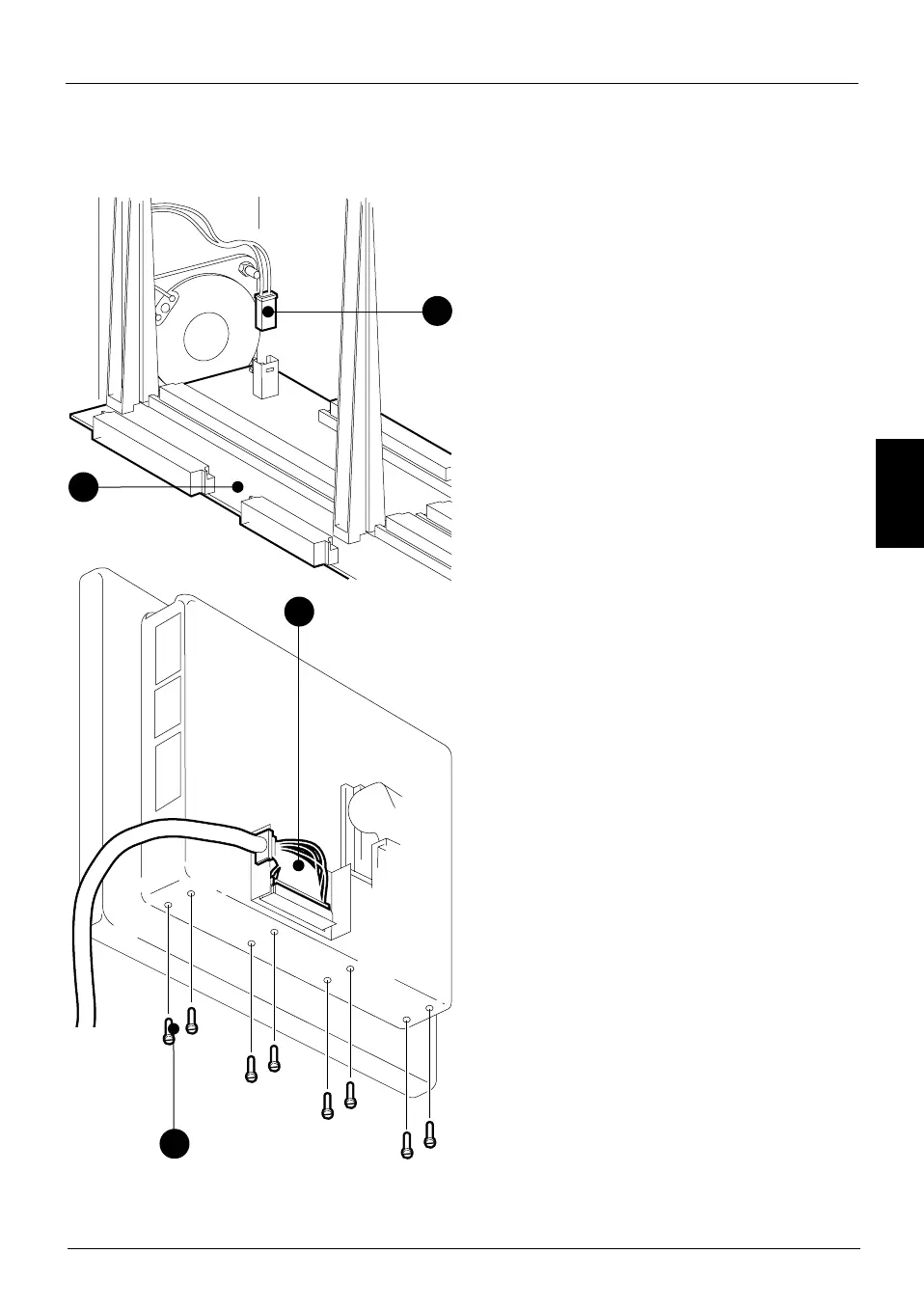

• Separate the panel section from the
control section as previously described.
• Remove PC boards PC 1587, PC 1605,
PC 1608 and PC 1616 as previously
described.
• Disconnect the two interconnection cable
connectors (1) from the control unit.
See section ”Removing the inter-
connection cable”.
• Disconnect the loudspeaker connector (2).
• Remove the screws (3) and lift off
PC 1617 (4).
3
4
2
1
300-A34X
