Disassembling and assembling Servo Ventilator 300/300A
Assembling the power
section
The procedure for assembling the power
section is the reverse of the disassembly
procedure previously described.
The following points must be noted during
assembling:

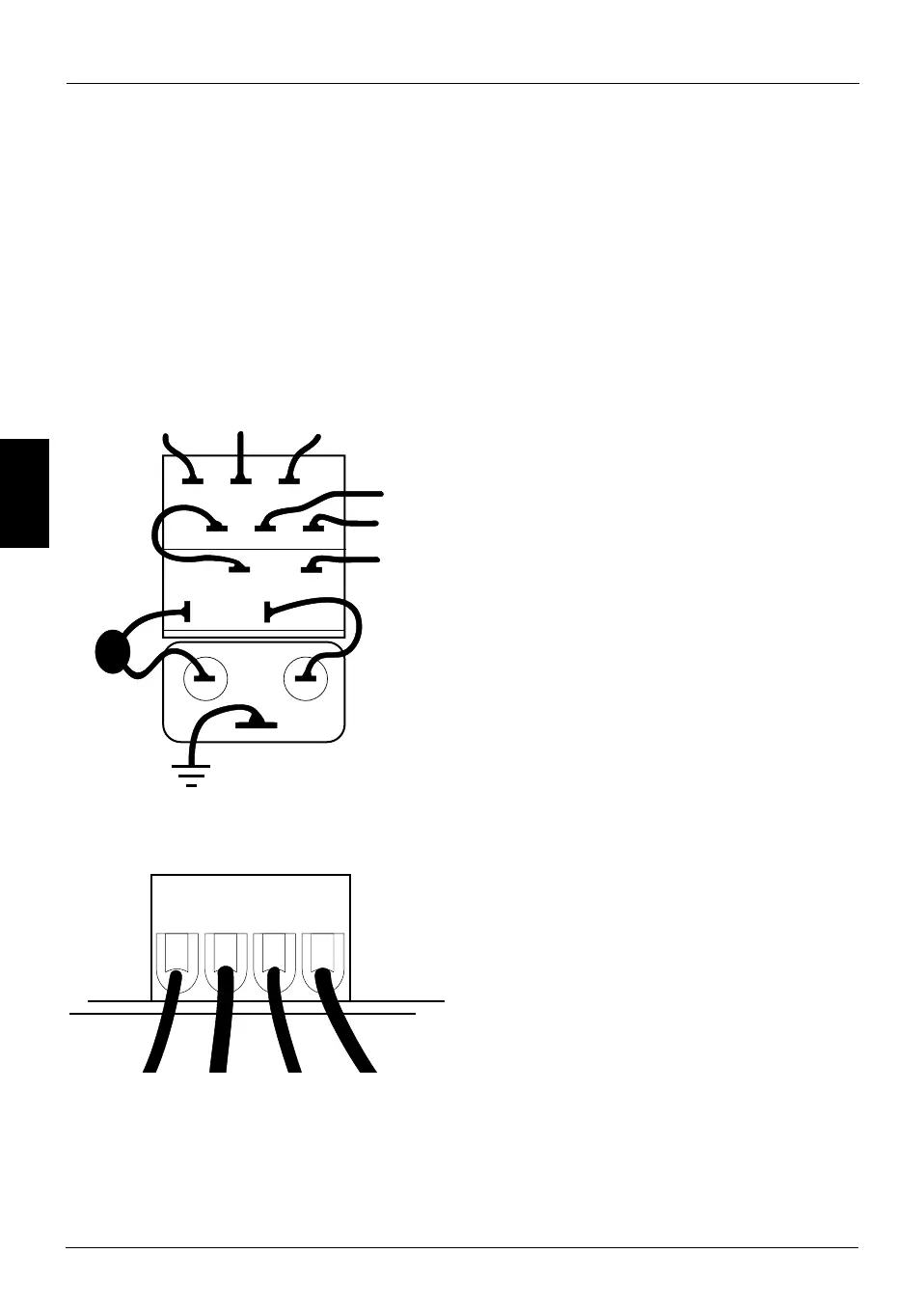

Mains power inlet
• Connect the cables to the mains power
inlet according to figure.
1 2 3 4
RD WH BK GN
300-A40X
Power supply board PC 1618
• Connect cables to screw terminal
according to figure.
RD BU BK
BK
VT
BN
YE
WH
300-A39X
A
CE
BDF
GH
