Installing and connecting
2.4 Connecting the field bus to the active field distributors AFD4 / AFD4 (FM) / AFD8
Active field distributors AFD4, AFD4 (FM), AFD8 and AFS
Product Information, 02/2015, A5E03775304-AC
19
2.4
Connecting the field bus to the active field distributors AFD4 / AFD4
(FM) / AFD8
Introduction
The bus cables of the AFD4 / AFD4 (FM) / AFD8 field distributors are fed into the enclosure
via cable glands:
● The main line using T1 and T2
● The spur lines to the field devices using S1 to S4 / S8

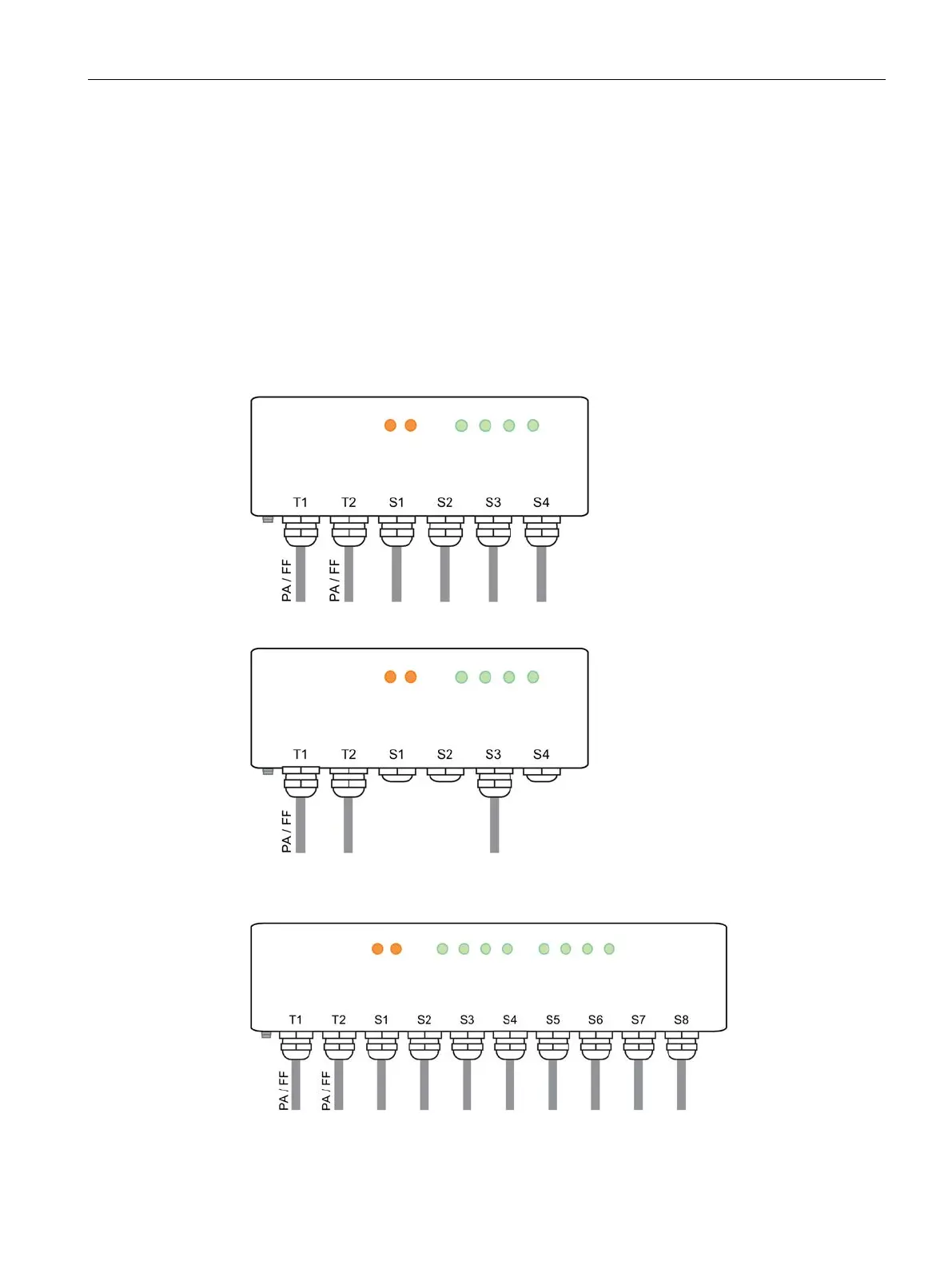

Figure 2-5 Connections of AFD4
Figure 2-6 Connections of AFD4 (FM)
Figure 2-7 Connections of AFD8
