Installing and connecting
2.3 Safety instructions for connection
Active field distributors AFD4, AFD4 (FM), AFD8 and AFS
Product Information, 02/2015, A5E03775304-AC
17
Rules for connecting the main lines
The following examples illustrate the rules that you must observe when connecting main
lines.

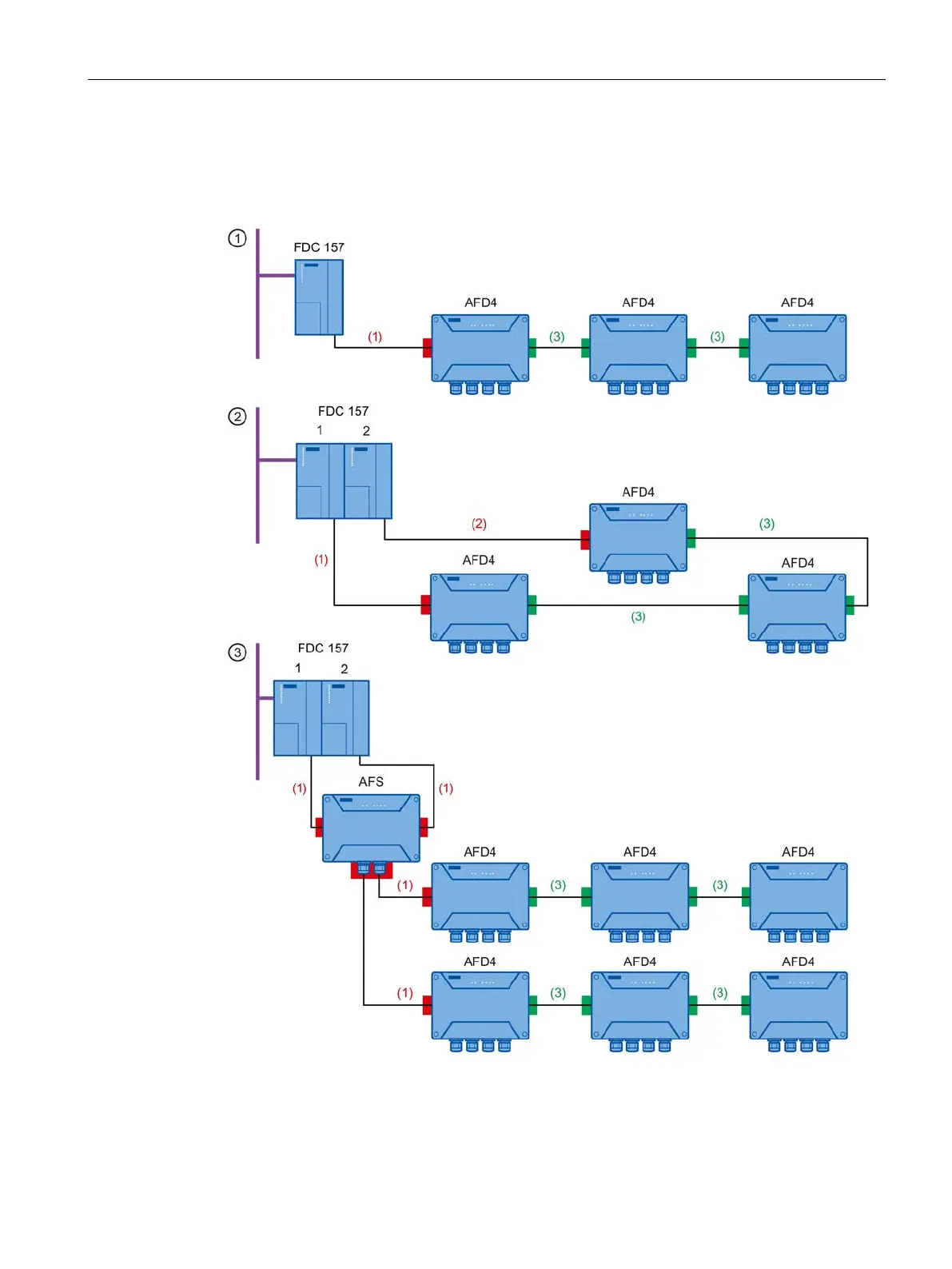

Figure 2-4 Rules for connecting the main lines
