Siemens SIMATIC C7-635 User Manual

Installing and Wiring the C7-635
3-12
C7-635 Control System
A5E00155581-04
R
SIMATIC C7
S
M
I/O connector
DO 16 X 12 in front
DI 16 X 11 in back
Analog
output
AO2
X14
Supply
Connector
X 1
Micro
Memory Card
of the CPU
X 7
Backplane
bus (I/O
bus) X 5 in
front
FRCE
5 VDC
BF
RUN
STOP
SF
I/O connector
AI4 + 1 PT100 X 13 in front
Supply I/O DI 8 X 10 in back
Compact
Flash
Card of
the TP
X 8
PROFIBUS/
DP
X 3 in back
Programming
device
connection
(MPI)
X 2 in front
RS 232
X 4 in
back
1
1
1
1

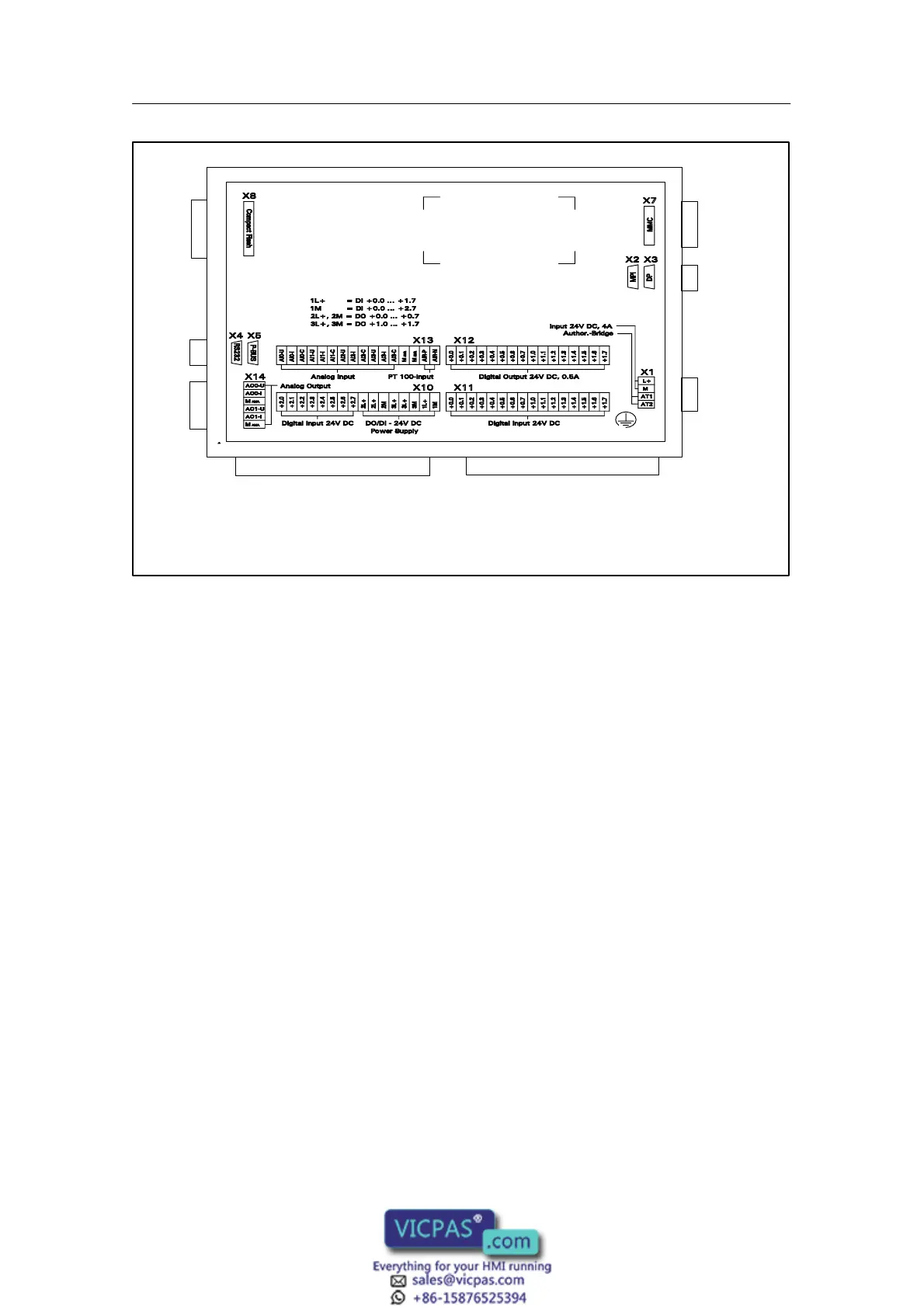

Figure 3-12 C7-635 with Connectors and Sockets, Back View
