Installing and Wiring the C7-635
3-13
C7-635 Control System
A5E00155581-04

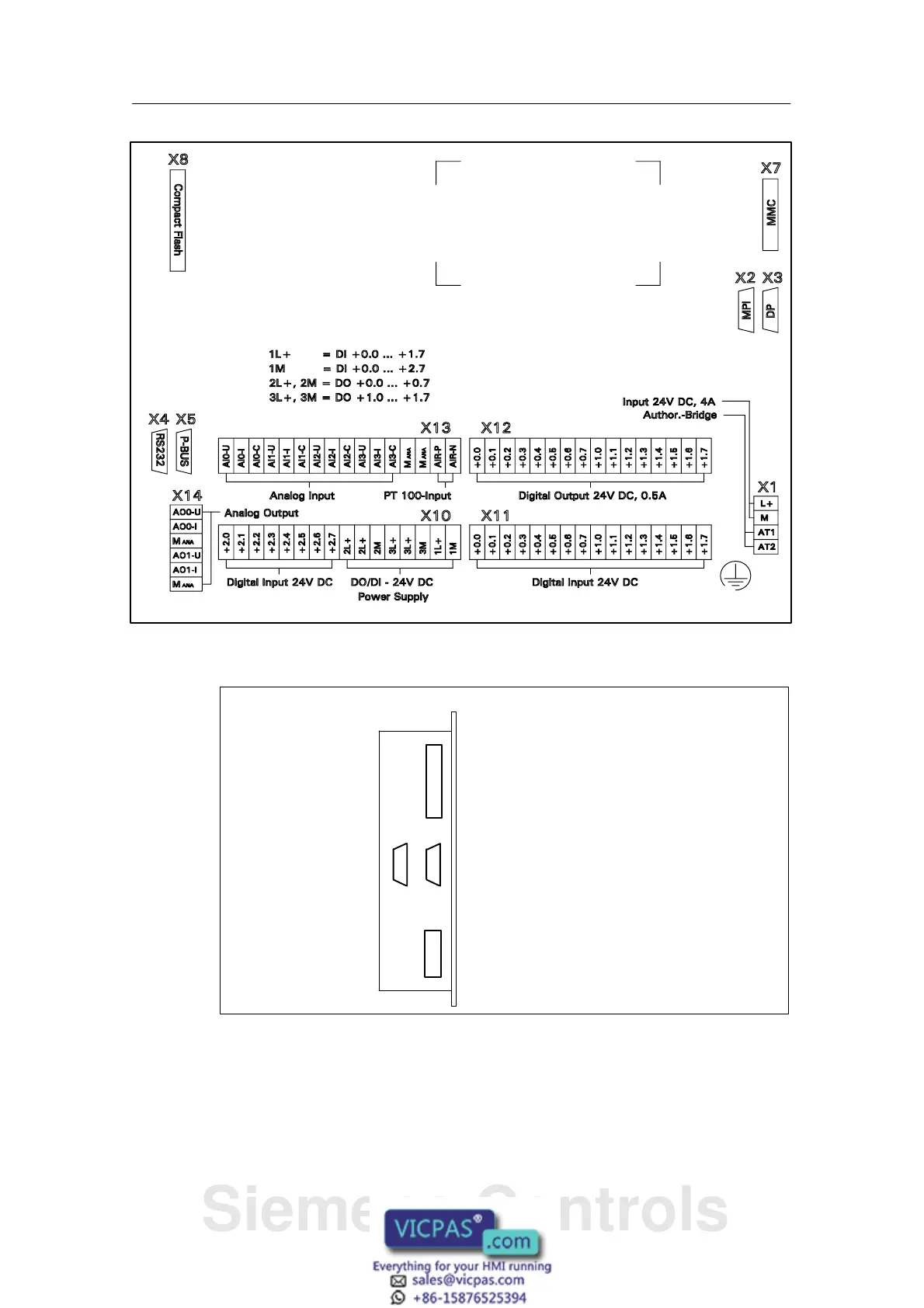

Figure 3-13 C7-635 Layout of Connector Pin Assignment
Supply Connector
X 1
Micro Memory Card (MMC) of
the CPU X 7
PROFIBUS/DP
X 3
Programming device
connection (MPI)
X 2
1
Figure 3-14 C7-635 with Connectors and Sockets, Side View
