Siemens simatic et200sp Equipment Manual

Product overview
2.4 Operating and display elements
CPU 1510SP-1 PN (6ES7510-1DJ01-0AB0)
Equipment Manual, 05/2021, A5E03506268-AD
19
2.4 Operating and display elements
2.4.1 Front view of the module with BusAdapter

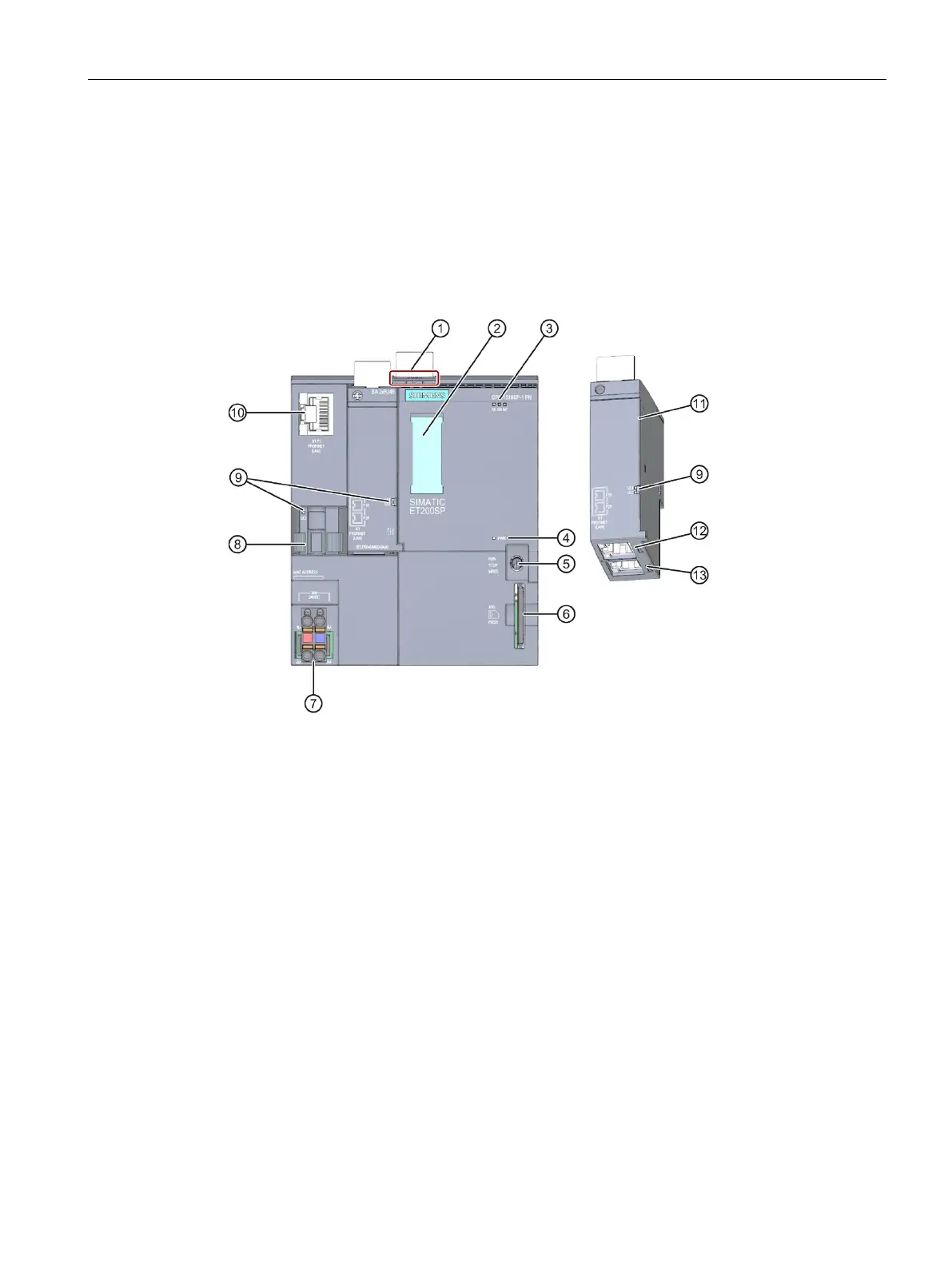

The figure on the left shows the CPU 1510SP-1 PN including a plugged BA 2xRJ45
BusAdapter. The figure on the right shows a separate view of the BA 2xRJ45 BusAdapter.
①
Mounting rail release
②
Labeling strips
③
LEDs for status and error displays
④
LED for display of the supply voltage
⑤
Mode switch
⑥
Slot for the SIMATIC memory card
⑦
Connection for supply voltage (included in product package)
⑧
Cable support and attachment for port P3 of the PROFINET interface
⑨
LEDs for status displays of the PROFINET interface: LK1 and LK2 on BusAdapter, LK3 on CPU
⑩
Port P3 of the PROFINET interface: RJ45 socket
⑪
Separate view of the BusAdapter
⑫ Port P1 R of the PROFINET interface: RJ45 socket on BusAdapter BA 2×RJ45
R: Ring port for configuring a ring topology with media redundancy
⑬ Port P2 R of the PROFINET interface: RJ45 socket on BusAdapter BA 2×RJ45
R: Ring port for configuring a ring topology with media redundancy
Figure 2-2 Front view of the CPU 1510SP-1 PN with BusAdapter

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
