Siemens simatic et200sp Equipment Manual

CPU 1510SP-1 PN (6ES7510-1DJ01-0AB0)
Equipment Manual, 05/2021, A5E03506268-AD
21
Wiring
3
This section provides information on the pin assignment of the individual interfaces and the
block diagram of the CPU 1510SP-1 PN.
24 V DC supply voltage (X80)
The connector for the supply voltage is plugged in when the CPU ships from the factory.
The following table shows the signal names and the descriptions of the pin assignment of
the 24 V DC supply voltage.

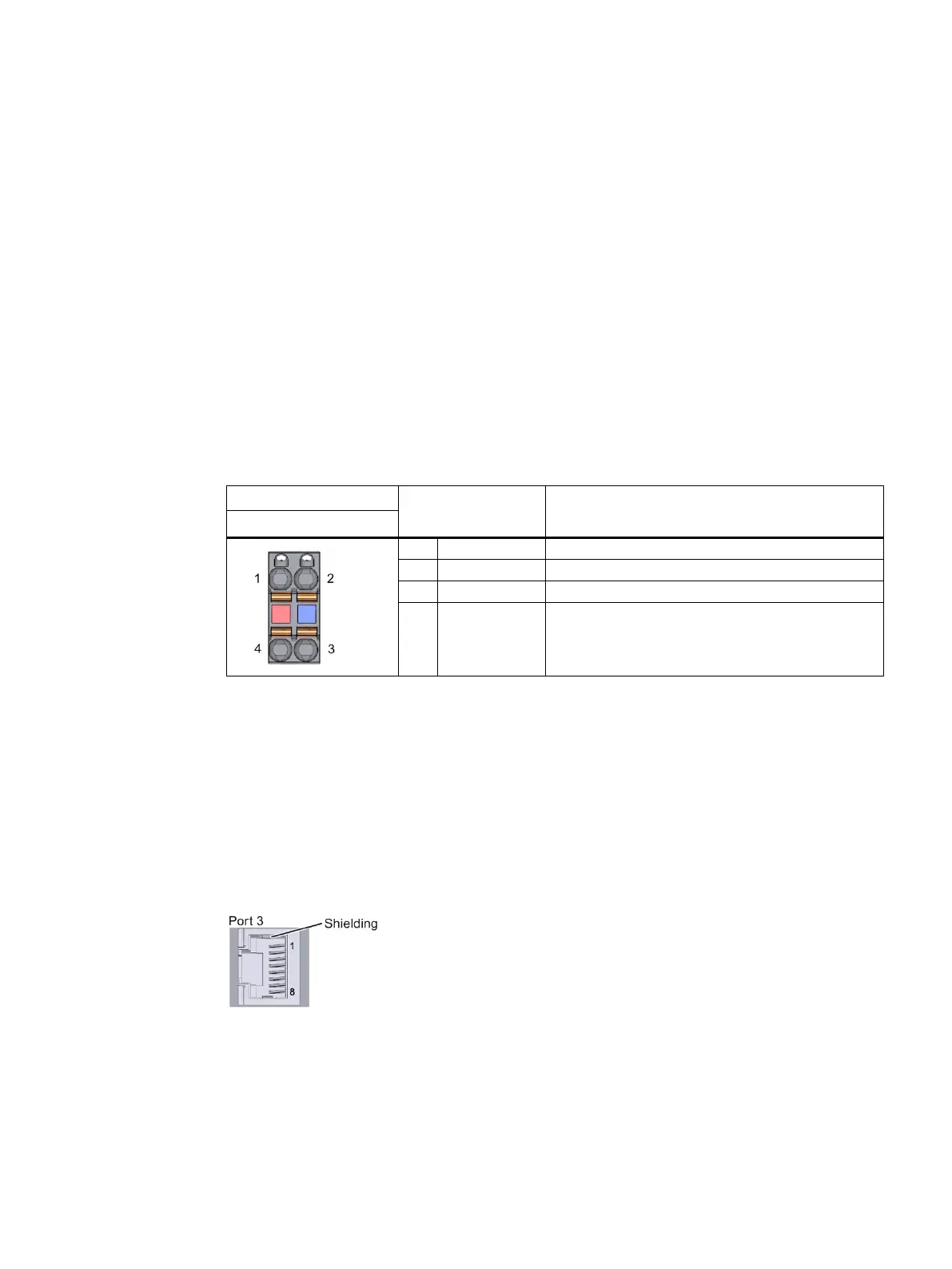

Table 3- 1 Pin assignment 24 V DC supply voltage
View
Signal name
1)
Description
Connector
1
1L+
+ 24 V DC of the supply voltage
2
1M
Ground of the supply voltage
3
2M
Ground of the supply voltage for loop-through
2)
4
2L+
+ 24 V DC of the supply voltage for loop-through
2)
1)
1L+ and 2L+ as well as 1M and 2M are bridged internally
2)
Maximum 10 A permitted
PROFINET IO interface on the CPU (X1 P3)
The assignment corresponds to the Ethernet standard for an RJ45 connector.
• When autonegotiation is deactivated, the RJ45 socket is allocated as a switch (MDI-X).
• If autonegotiation is activated, then autocrossing is active and the RJ45 socket has either a
device assignment (MDI) or switch assignment (MDI-X).

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
