Wiring
CPU 1510SP-1 PN (6ES7510-1DJ01-0AB0)
22 Equipment Manual, 05/2021, A5E03506268-AD
PROFINET IO interface on the BusAdapter BA 2xRJ45 (X1 P1 R and X1 P2 R)
The assignment at the BA 2xRJ45 BusAdapter corresponds to the Ethernet standard for an
RJ45 connector.

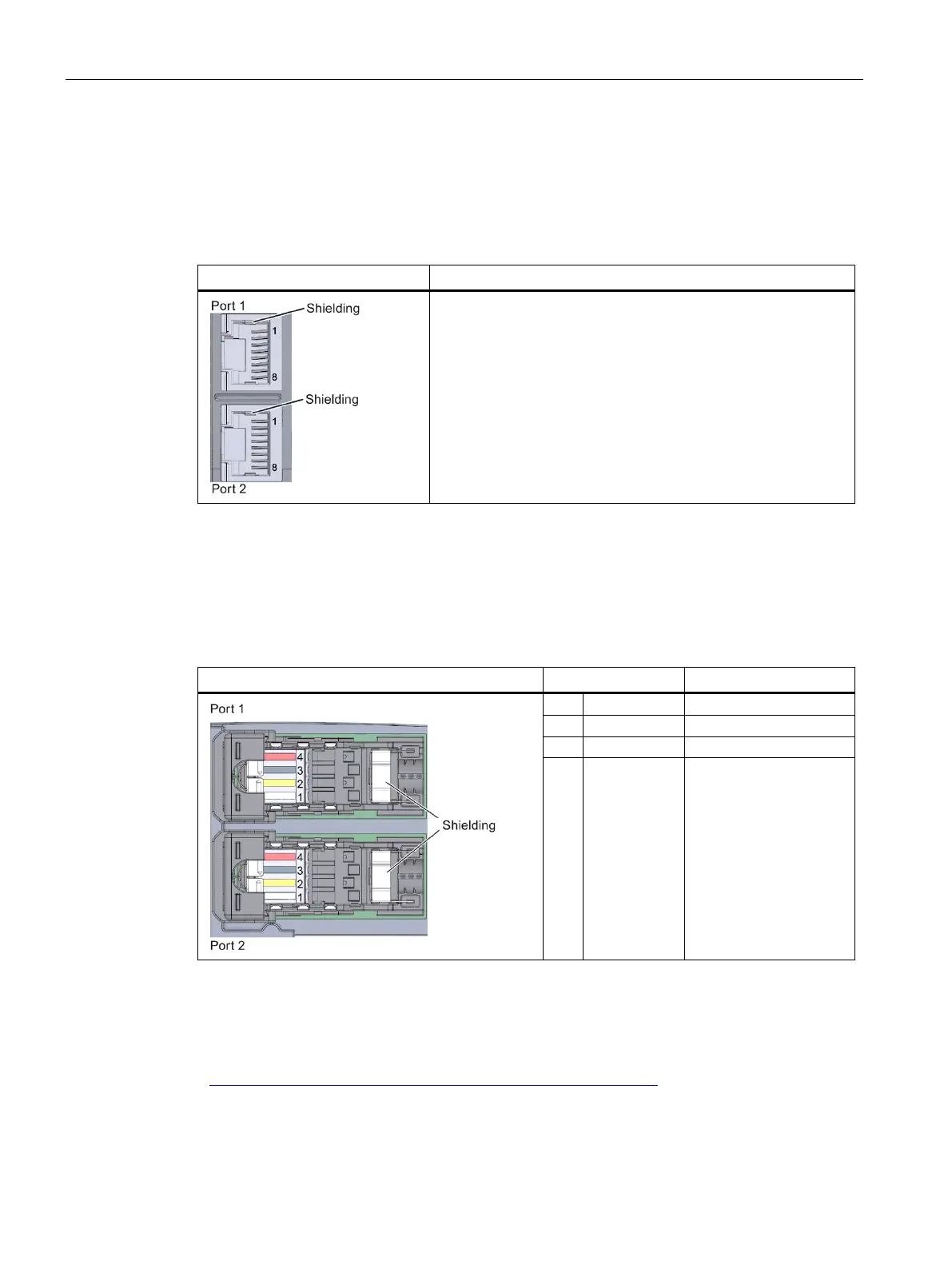

Table 3- 2 Pin assignment PROFINET IO interface on the BusAdapter BA 2xRJ45
View
Designation
• When autonegotiation is deactivated, the RJ45 socket is allo-
cated as a switch (MDI-X).
• If autonegotiation is activated, then autocrossing is active and
the RJ45 socket has either a device assignment (MDI) or
switch assignment (MDI-X).
PROFINET IO interface on the BusAdapter BA 2xFC (X1 P1 R and X1 P2 R)
The following table shows the pin assignment for the PROFINET IO interface on the
BusAdapter BA 2xFC.
Table 3- 3 Pin assignment PROFINET IO interface on the BusAdapter BA 2xFC
View
Signal name
Designation
1
TD
Transmit data +
2
TD_N
Transmit data -
3
RD
Receive data +
4
RD_N
Receive data -
Reference
You can find additional information on the topics of "Connecting the CPU" and
"Accessories/spare parts" in the system manual ET 200SP distributed I/O system
(http://support.automation.siemens.com/WW/view/en/58649293).

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
