CPU 1510SP-1 PN (6ES7510-1DJ01-0AB0)
42 Equipment Manual, 05/2021, A5E03506268-AD
Dimension drawing
A
This section contains a dimension drawing of the module mounted on a mounting rail.
Always observe the specified dimensions for installation in cabinets, control rooms, etc.

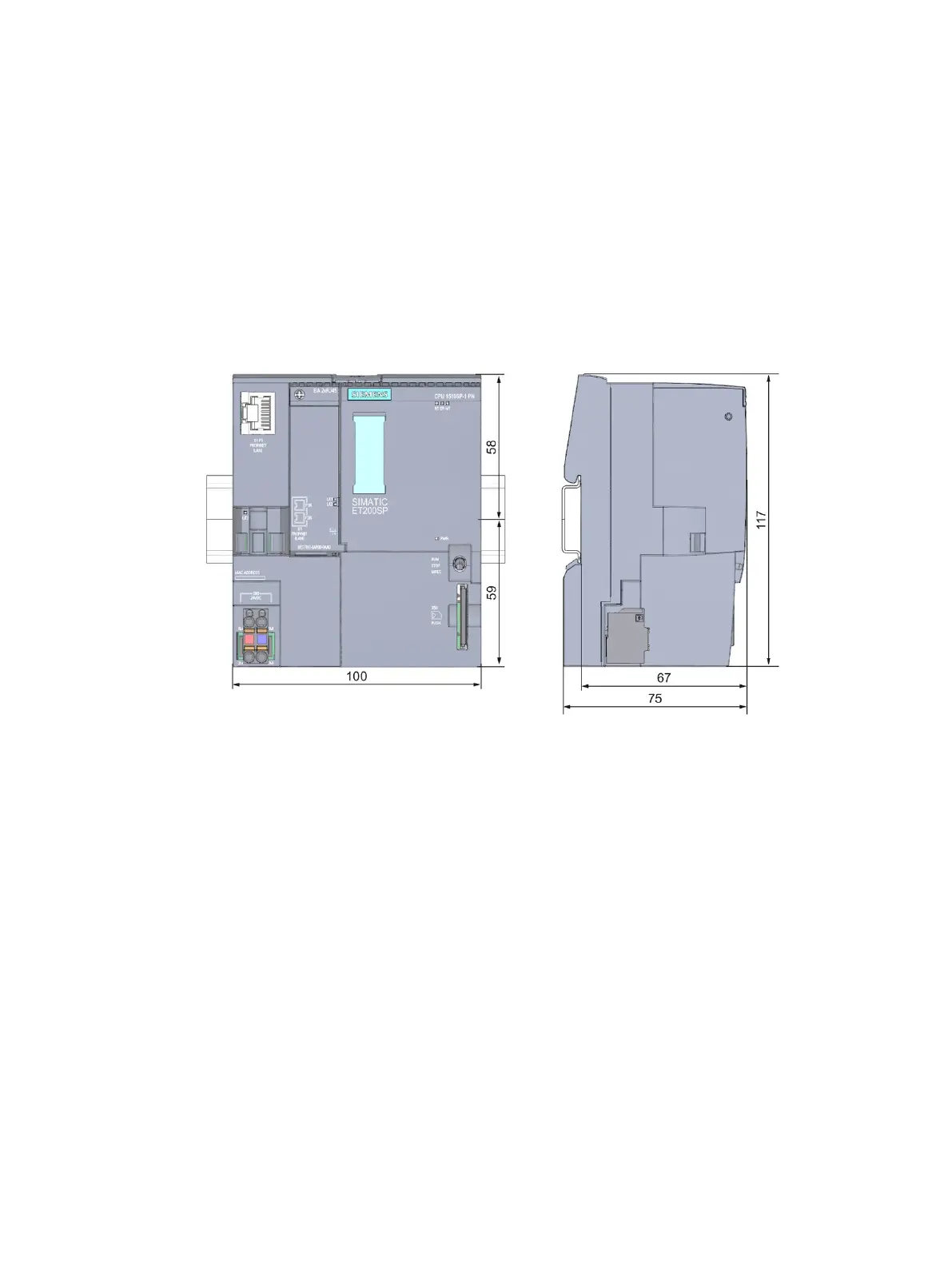

Dimension drawing of the CPU 1510SP-1 PN
Figure A-1 Dimensional drawing CPU 1510SP-1 PN
