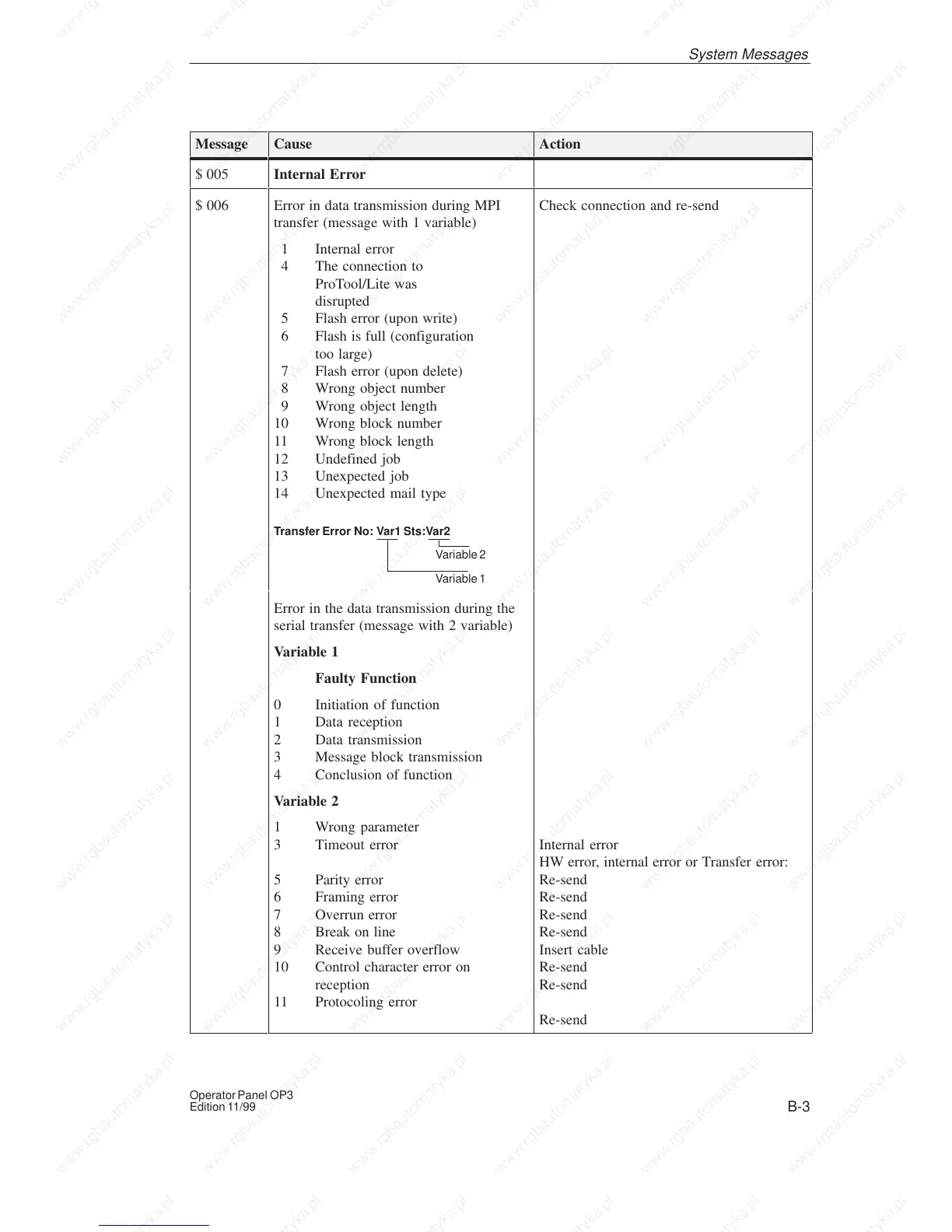

Siemens SIMATIC HMI OP3 User Manual

B-3
Operator Panel OP3
Edition 11/99
Message Cause Action
$ 005 Internal Error
$ 006 Error in data transmission during MPI
transfer (message with 1 variable)
1 Internal error
4 The connection to
ProTool/Lite was
disrupted
5 Flash error (upon write)
6 Flash is full (configuration
too large)
7 Flash error (upon delete)
8 Wrong object number
9 Wrong object length
10 Wrong block number
11 Wrong block length
12 Undefined job
13 Unexpected job
14 Unexpected mail type
Check connection and re-send
Transfer Error No: Var1 Sts:Var2
Variable 2
Variable 1
Error in the data transmission during the
serial transfer (message with 2 variable)
Variable 1
Faulty Function
0 Initiation of function
1 Data reception
2 Data transmission
3 Message block transmission
4 Conclusion of function
Variable 2
1 Wrong parameter
3 Timeout error
5 Parity error
6 Framing error
7 Overrun error
8 Break on line
9 Receive buffer overflow
10 Control character error on
reception
11 Protocoling error
Internal error
HW error, internal error or Transfer error:
Re-send
Re-send
Re-send
Re-send
Insert cable
Re-send
Re-send
Re-send
S
y
stem Messa
g
es
