4-4
Operator Panel OP3
Edition 11/99
Main Screen
Screens
System
OPMode
Language
Dat/Time
MPI Address
StatVAR
ForceVAR
Password
Logout
Edit
Counter
Timer

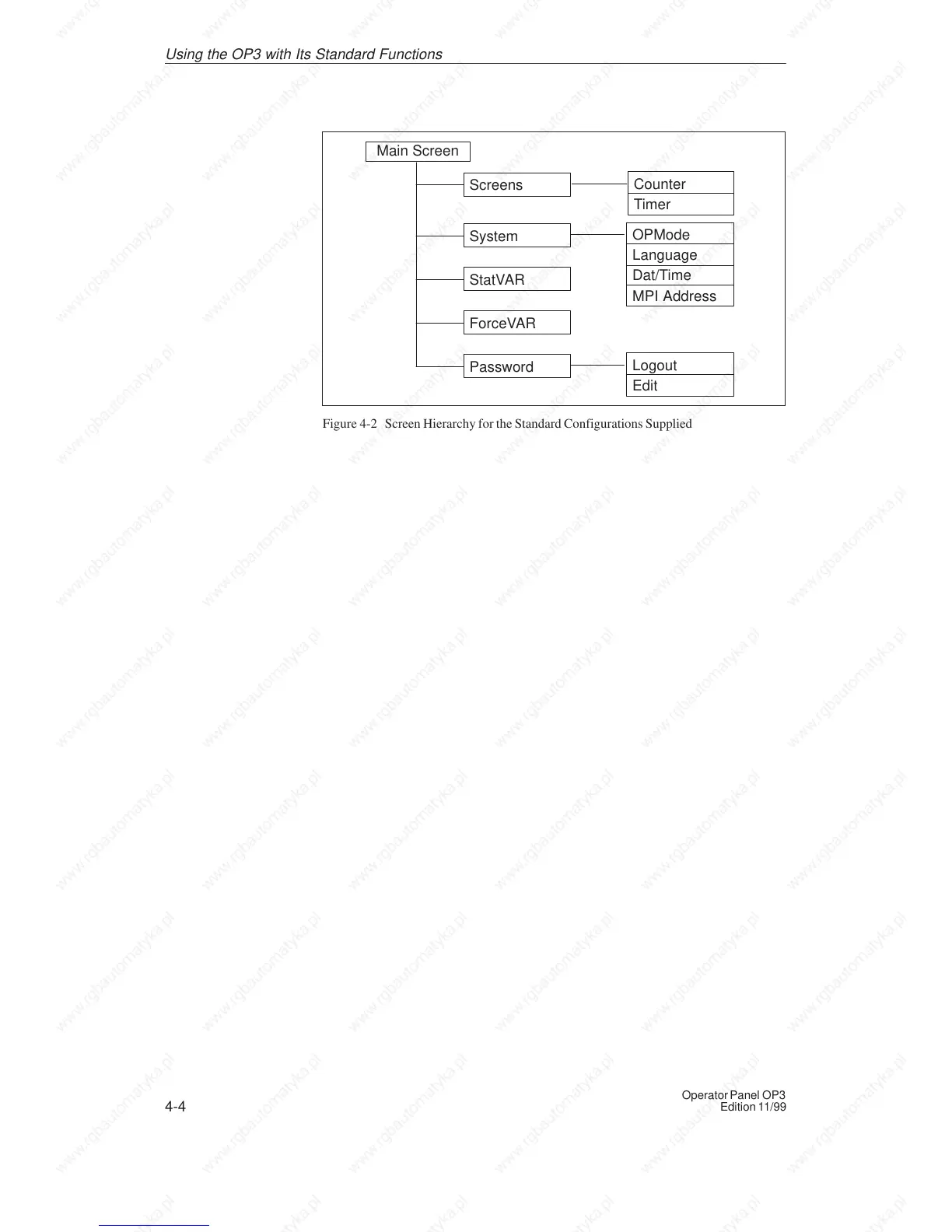

Figure 4-2 Screen Hierarchy for the Standard Configurations Supplied
Usin
g
the OP3 with Its Standard Functions
