Installation
8-3
TP 070 Equipment Manual
Release 03/00
Installation in front panels
Step Action
1 Working from the front, insert the operating unit in the mounting cut-out provided.
Make sure the unit cannot drop out of the front panel before it has been secured.

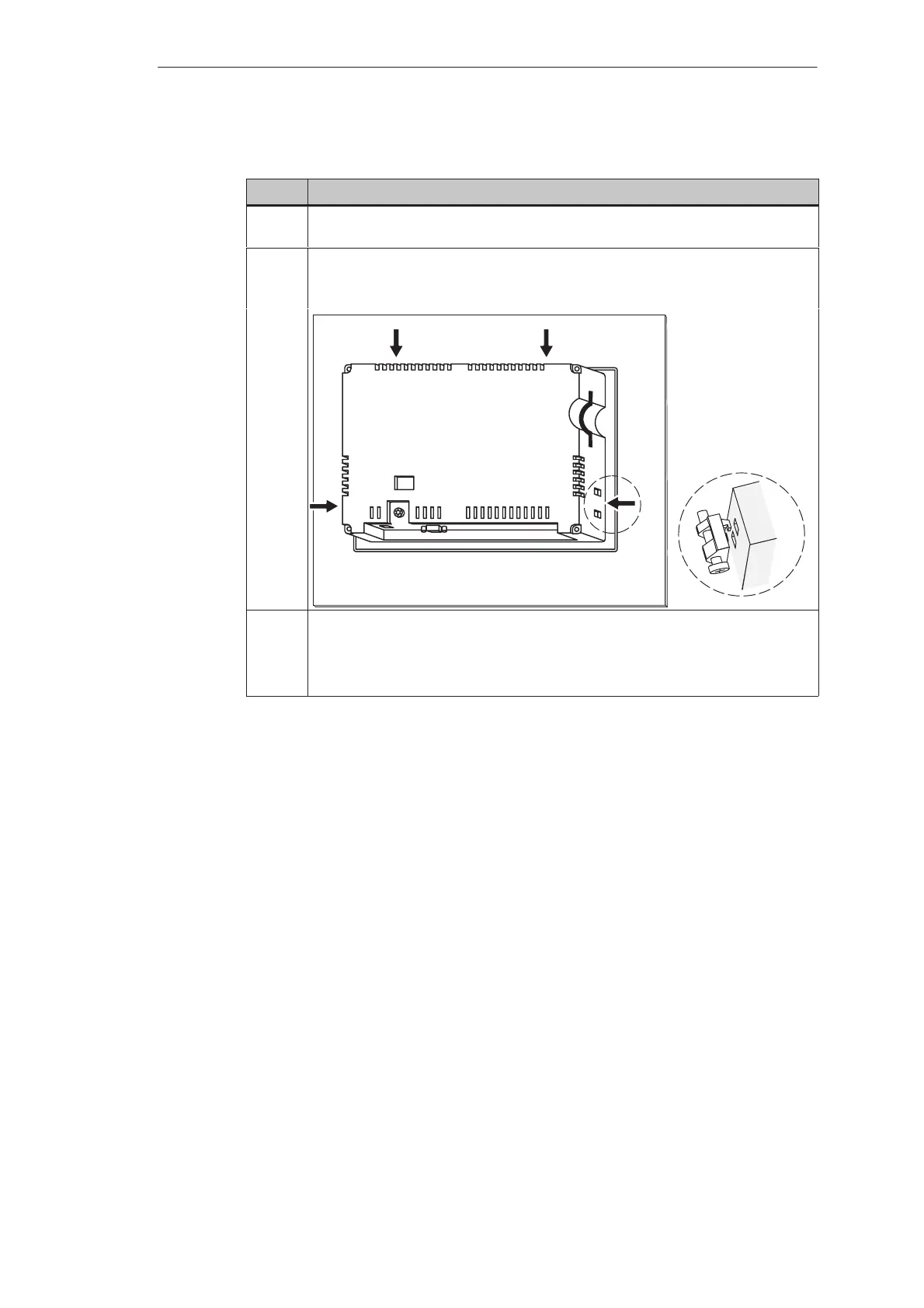

2 Insert the hooks of the screw-type clamps enclosed in the corresponding
recesses in the housing of the operating unit.
The individual positions are indicated in the figure by means of arrows.
Front panel
Operating unit
3 Use a screwdriver to tighten the operating unit from the rear in the front panel.
Note
Make sure the seal is seated correctly against the front panel.
Never apply torques greater than 0.5 Nm in order to prevent damage.
