Unit Description
9-3
TP 070 Equipment Manual
Release 03/00
9.2 Connection Elements

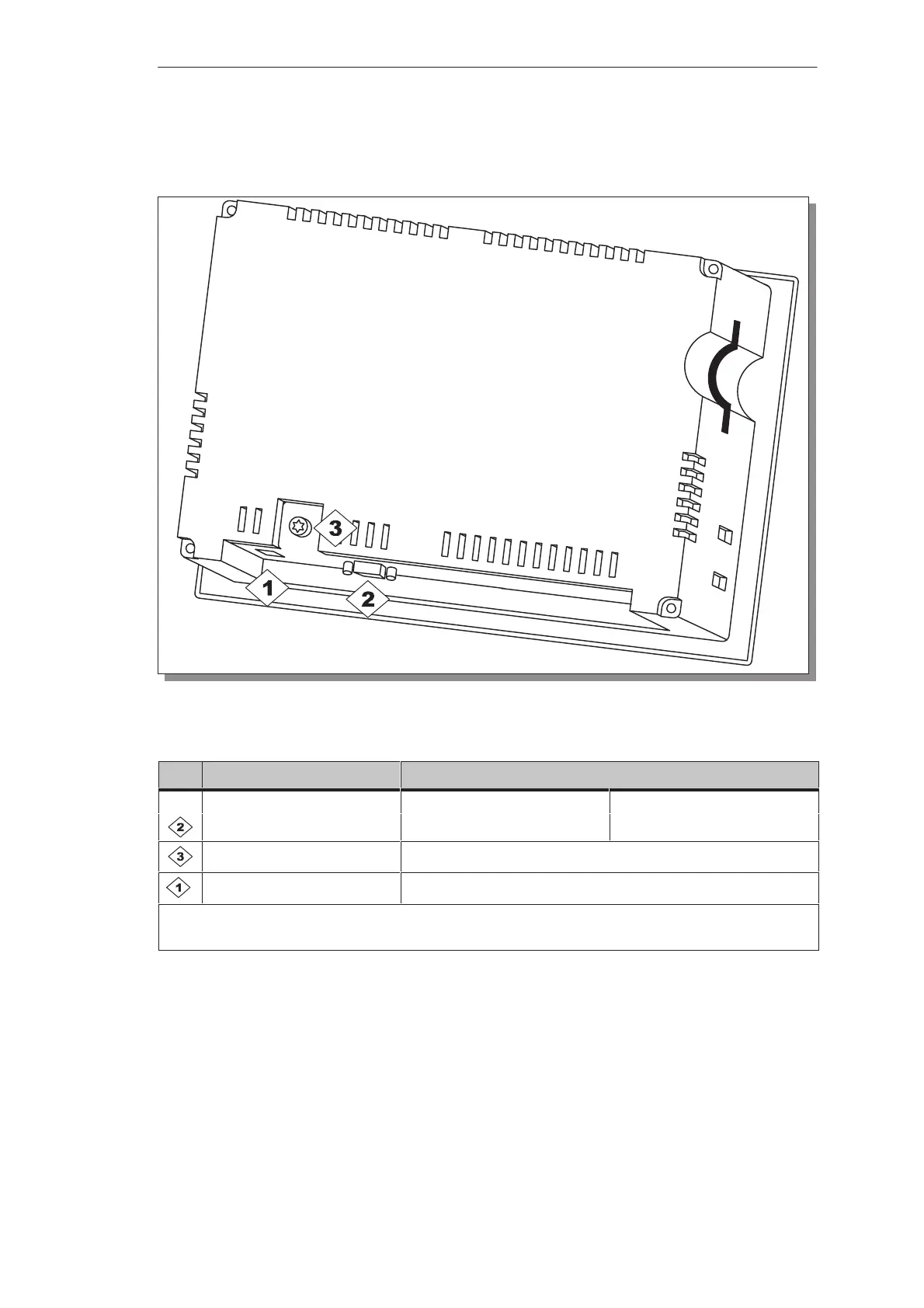

Figure 9-2 Arrangement of connection elements
No. Name Description/Use
Interfaces
1)
: Level: Usage:
 IF1B RS485 PLC, PC, PU
Grounding connection For connection to cabinet ground
Power supply
2)
Connection for power supply (+24 V DC)
1)
Connection pin assignment, see appendix B.
2)
Connection pin assignment, see page 8-5.
