Siemens SIMATIC HMI TP 070 User Manual

Unit Description
9-2
TP 070 Equipment Manual
Release 03/00
9.1 Dimensions
Unit dimensions
196
45
212
6
156
Side viewFront view
Plan view
140

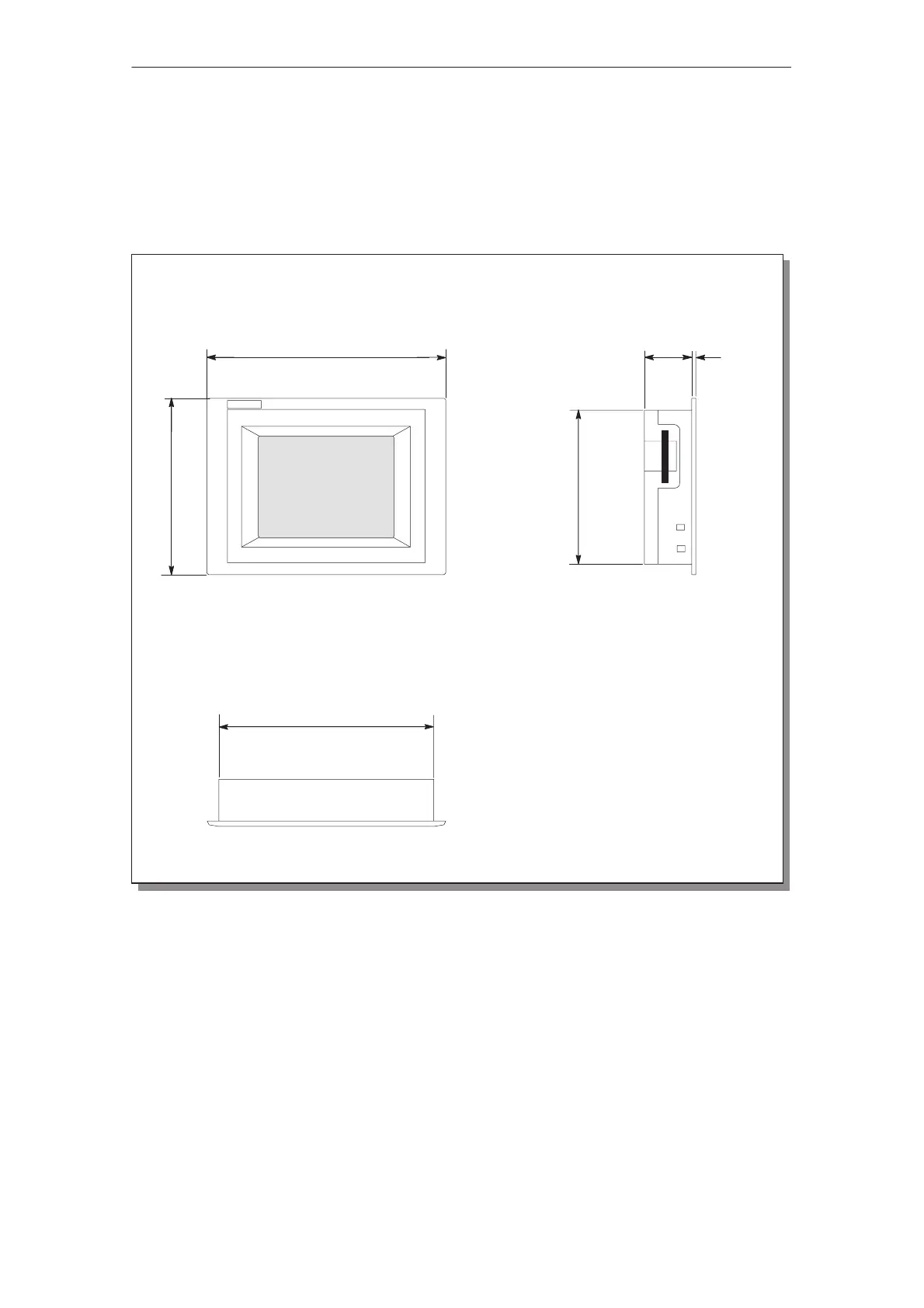

Figure 9-1 TP 070 dimensioning
Mounting cut-out
For installation in the front panel, the operating unit requires a mounting cut-out
(WxH) of 198
–1
mm x 142
–1
mm. The thickness of the front panel must not
exceed 6 mm.

Siemens SIMATIC HMI TP 070 Specifications

General

Brand	Siemens
Model	SIMATIC HMI TP 070
Category	Touch Panel
Language	English
