Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
138 Operating Instructions, 07/2017, A5E36770603-AB

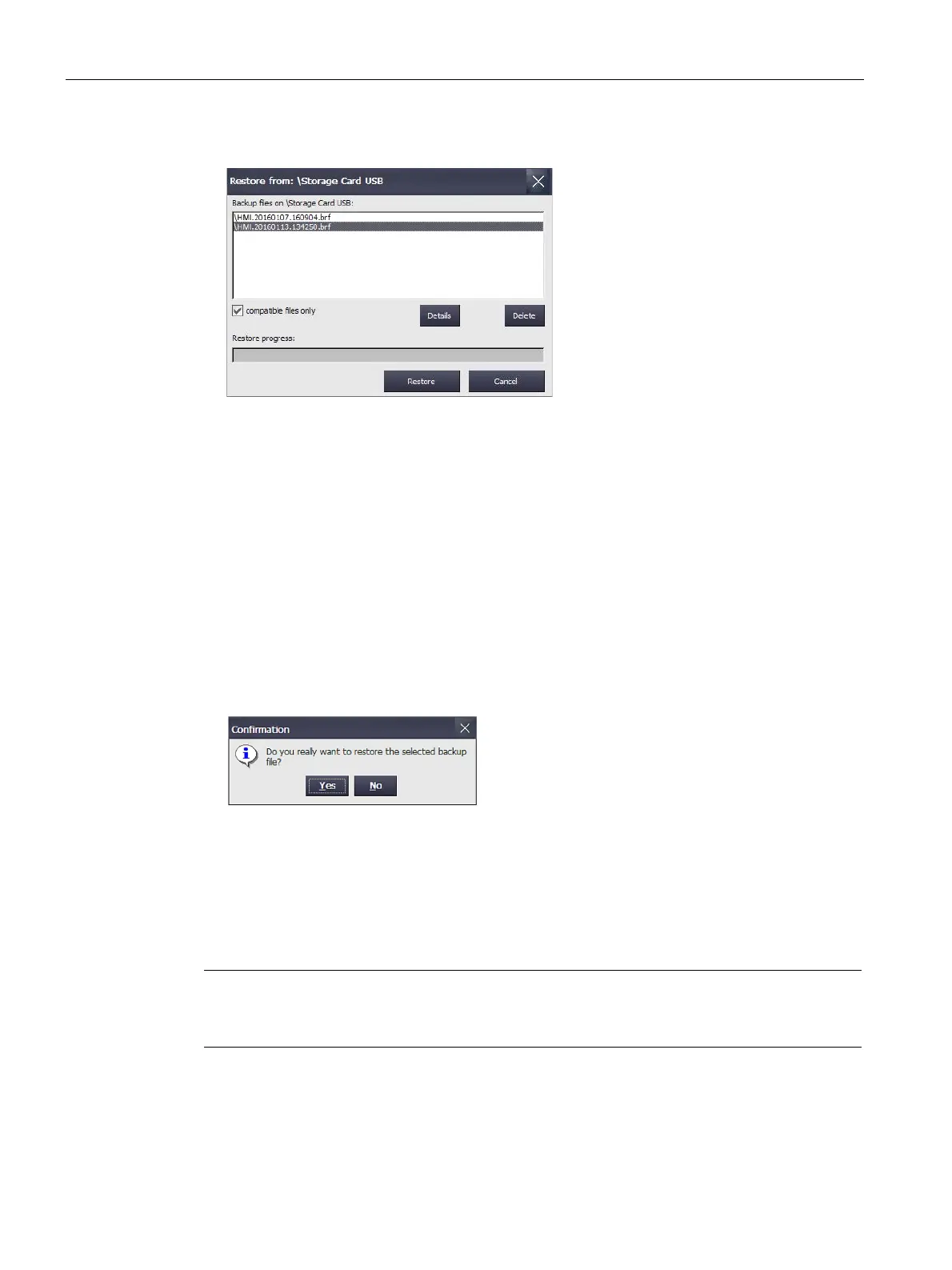

6. Press the "Next" button. The following dialog is displayed.
7. Select the required backup file in the "Backup files on" group.
8. If you need information about the selected file, press the "Details" button. The "Properties
of backup file" dialog containing the following information is displayed:
– "Supported": HMI device type that is compatible with the backup file
– "Image version": Version of the HMI device image that is compatible with the backup
file
– "Image size": Size of the backup file
– "Creation": Date the backup file was created
9. To delete the selected file, press the "Delete" button.
The "Delete confirmation" dialog is displayed. The file will be deleted when you press
"OK".
10. To restore the data from the selected file, select "Restore". The following dialog appears:
11. Selecting "Yes" restores the data.
The "Transfer" dialog appears. A progress bar shows the status of the restore process.
When the restore operation is complete, the "Restore operation successfully completed."
message is displayed. The HMI device then restarts.
12. Remove the storage medium, if necessary.
The data from the storage medium is now restored on the HMI device.
Note
After restoring, a recalibration of the touch screen may be required, see also section
"
Calibrating the touch screen (Page 88)".
