Siemens SIMATIC HMI TP1500 Comfort User Manual

Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
56 Operating Instructions, 07/2017, A5E36770603-AB
3.3.7
Connecting a printer

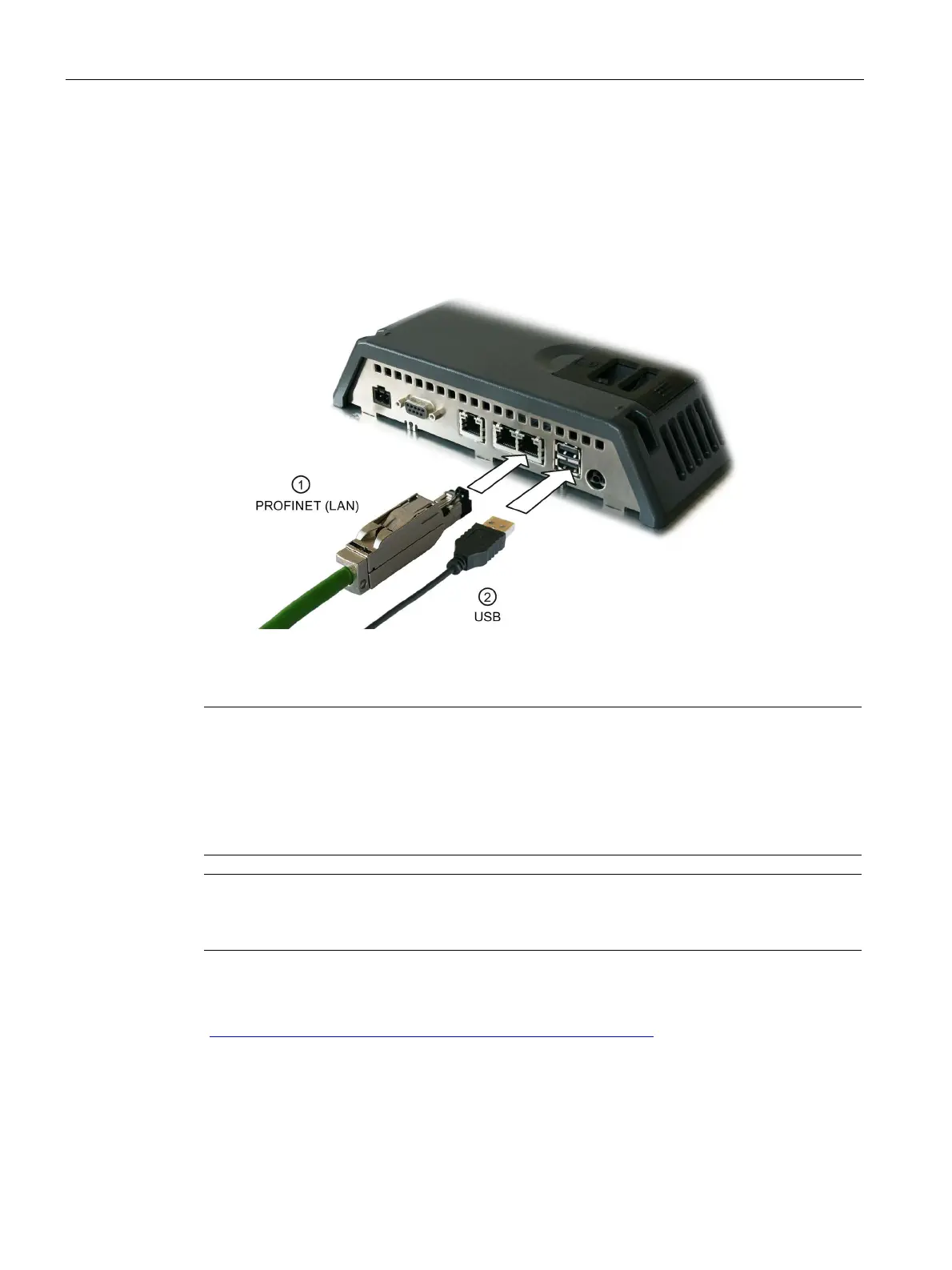

Wiring diagram
The following figure shows how to connect the HMI device to a printer with
TP1500 Comfort V2 as an example.
Note when connecting
Note
Cables for data exchange
If you use cables without a metallic netting shield between the HMI device and printer, you
may experience functional problems.
Use cables with metal
-braided shielding grounded at both ends only for connecting the HMI
device
and the printer.
Note
Some printers may require that you also set the ASCII character set used in the project on
the printer.
You can find a list of current printers and required settings for HMI devices on the Internet at
"Approved printers for SIMATIC HMI Panels
(http://support.automation.siemens.com/WW/view/en/11376409
)".
Observe the supplied printer documentation when you connect the printer.

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
