8.7 Dimension drawings
Comfort Panels
210 Operating Instructions, 07/2017, A5E36770603-AB
8.7.17

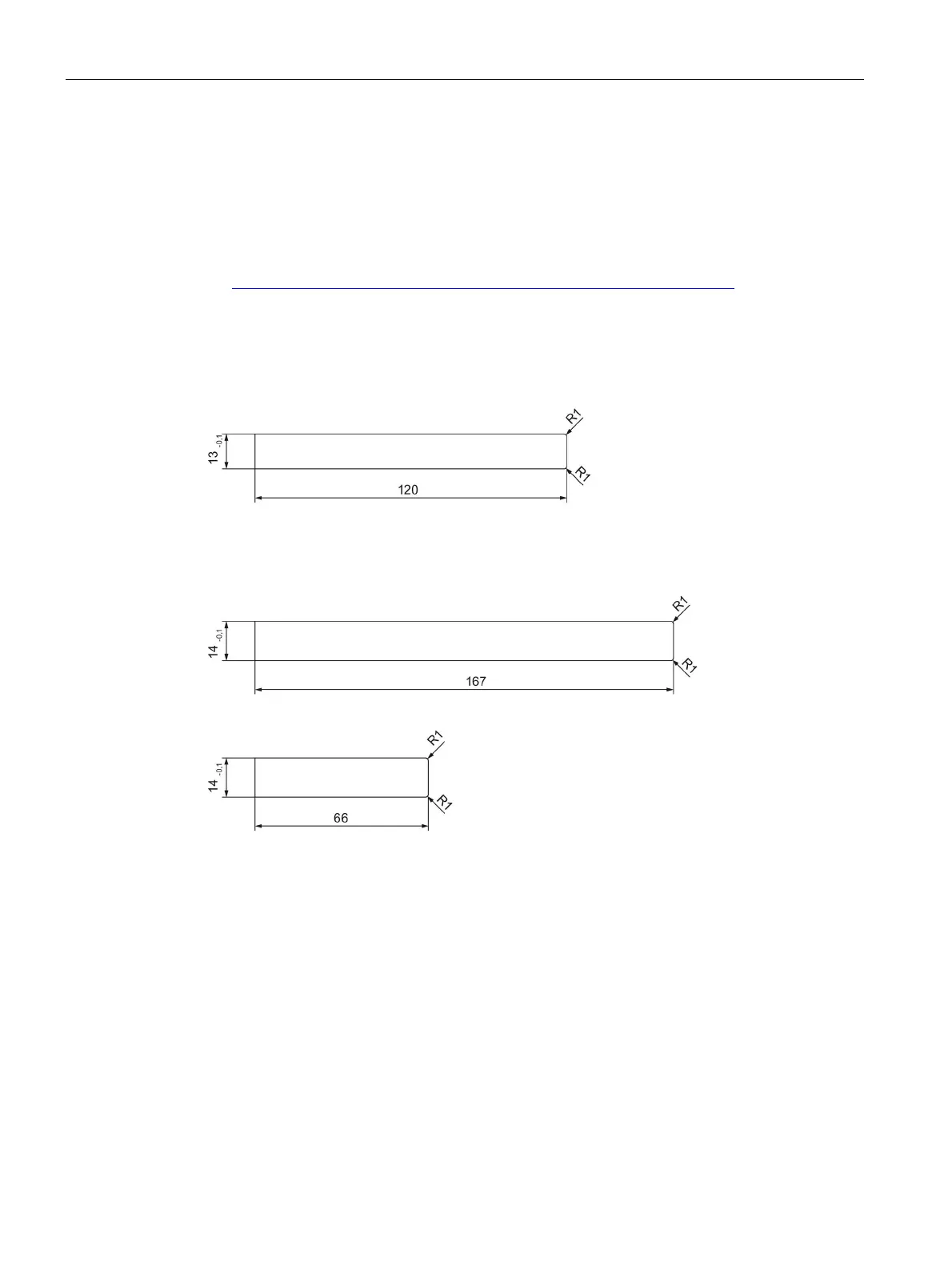

Dimensions for labeling strips
This section contains the labeling strip dimensions for the Comfort Panels key models. You
will find labeling strip templates with a scale of 1:1 as a Word file:
● On the Internet at:
Downloads for Comfort Panels
(http://support.automation.siemens.com/WW/view/en/47182890/133100
)
● In the "Support" folder on the WinCC installation DVD
Labeling strips for KP400 Comfort and KTP400 Comfort
Labeling strips for KP700 Comfort
