Siemens SIMATIC HMI TP1500 Comfort User Manual

Mounting and connecting the HMI device
3.2 Mounting the device
Comfort Panels
42 Operating Instructions, 07/2017, A5E36770603-AB
3.2
Mounting the device
Positions of the mounting clips
To achieve the degree of protection for the HMI device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Insert mounting
clips in all stamped cutouts.

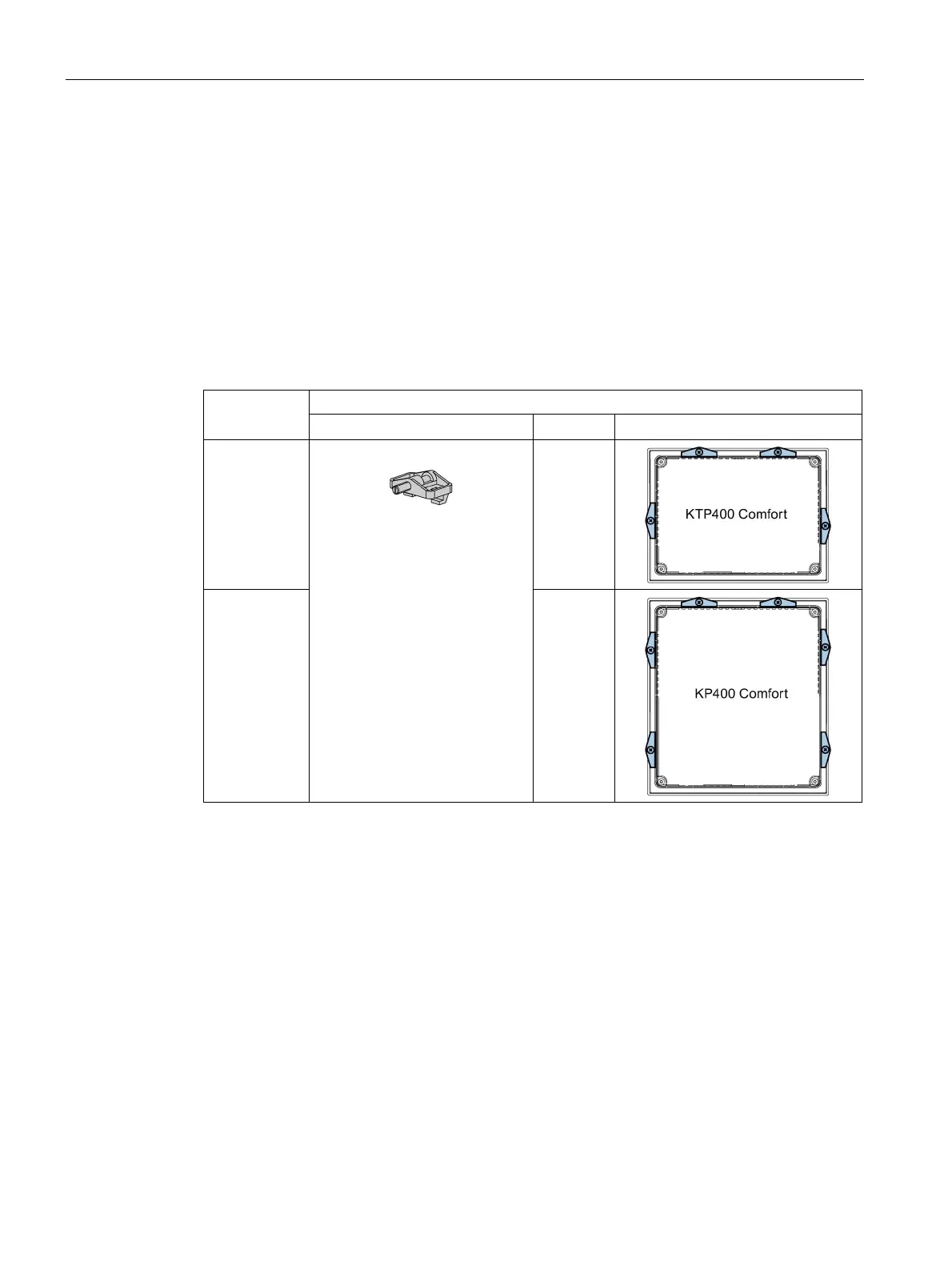

The following table shows the type, number and position of the mounting clips needed for the
respective HMI devices.
Comfort
HMI device
Mounting clips
Type
Quantity
Position on the HMI device
KTP400 Plastic mounting clips 4
KP400 6

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
