Siemens SIMATIC HMI TP1500 Comfort User Manual

Mounting and connecting the HMI device
3.2 Mounting the device

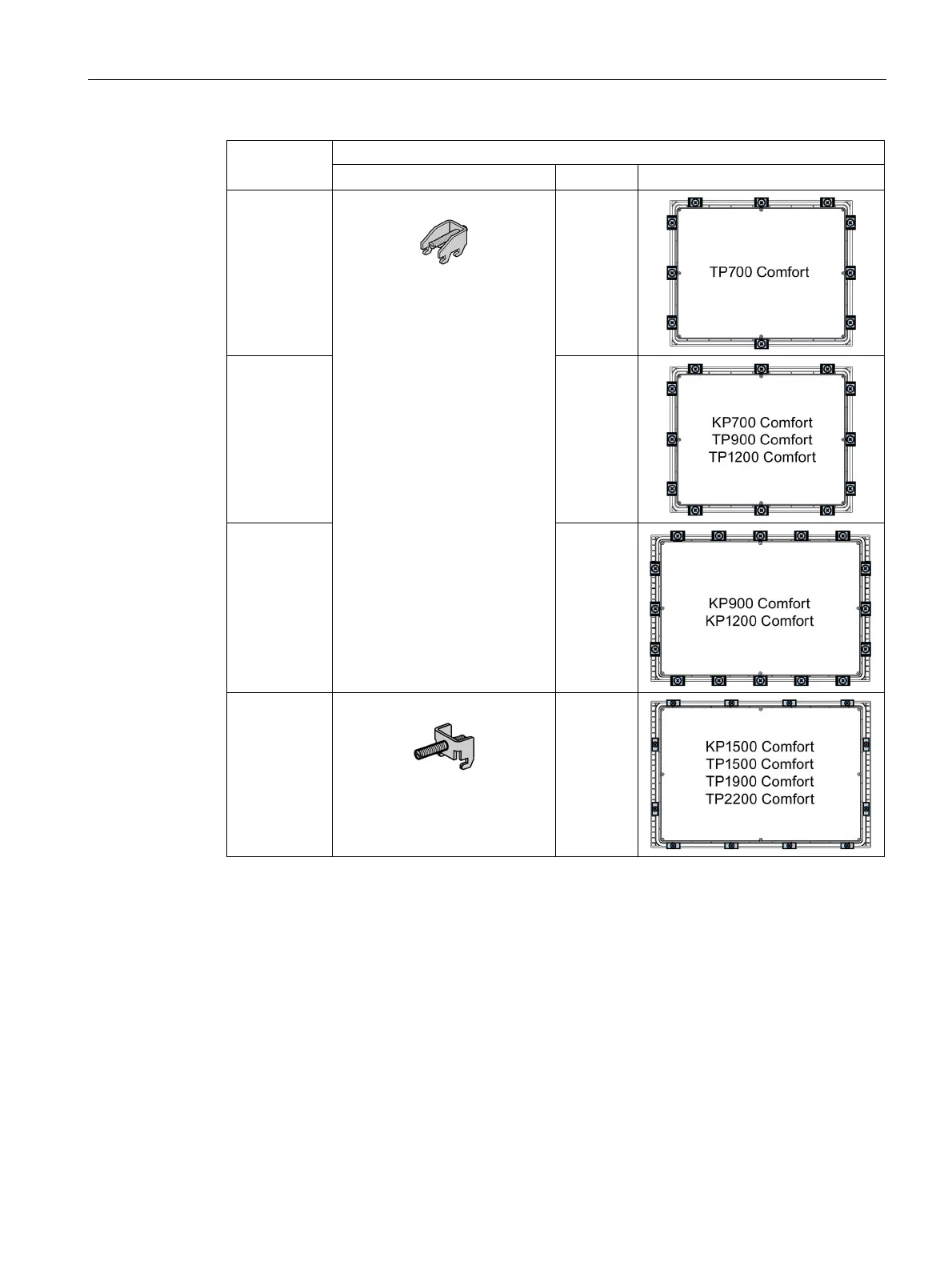

Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
43
Comfort
HMI device
Mounting clips
Type
Quantity
Position on the HMI device
TP700 Aluminum mounting clips 10
KP700
TP900
TP1200
12
KP900
KP1200
16
KP1500
TP1500
TP1900
TP2200
Steel mounting clips 12
Requirement
● All packaging components and protective films were removed from the HMI device.
● To install the HMI device, you need the mounting clips from the accessories kit.
● The mounting seal must be installed on the HMI device.
